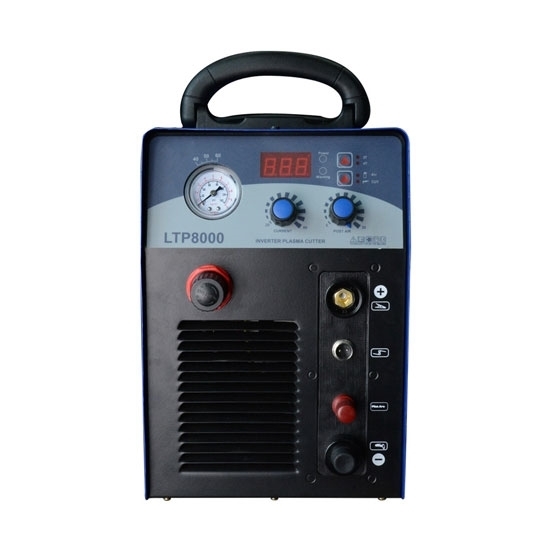

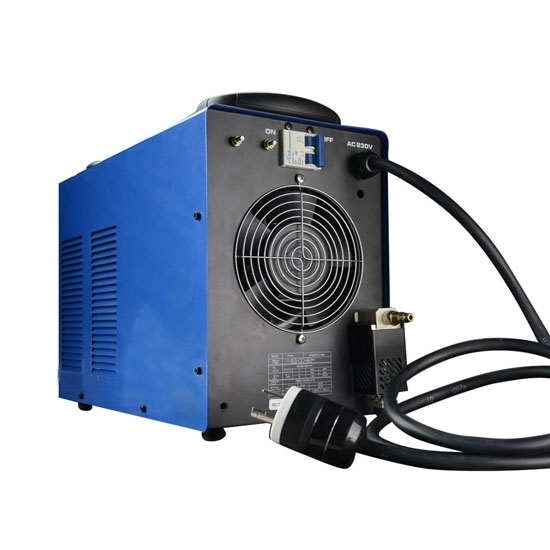

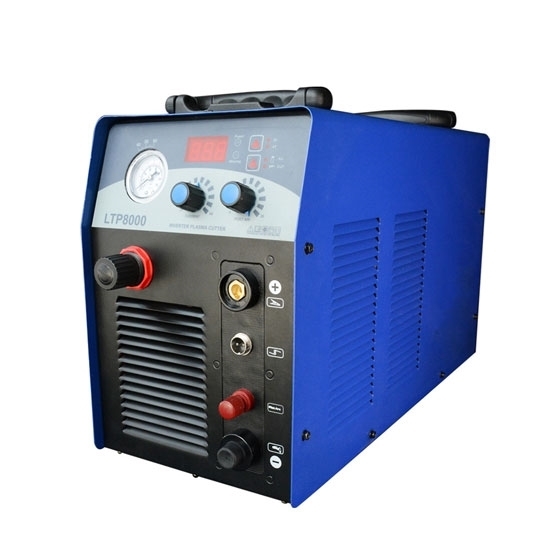

80A Plasma Cutter Welding Machine, 220V

0 reviews • Write a review

from

$1,365.23

Ex Tax: $1,365.23

Stock: In Stock
Model: RDDLZ-WM-LTP8000
Weight: 1.00
SKU: RDDLZ-WM-LTP8000

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Used welder for sale, input voltage 220V, frequency 50Hz 60Hz are optional, plasma cutter welding machinehas the characteristics of high cutting speed, smooth cuts welding.

Specifications

Model	RDDLZ-WM-LTP8000
Output Power	DC
Input Voltage	220V-240V, +/15%, 1-PH, 50Hz/60Hz (Automatic dual frequency)
No Load Voltage	230V
Input Current	30A
Output Current	20A-80A
Power	11 kVA
Power Factor	0.93
Duty Cycle at 40℃(104℉)	60% at 80A
Duty Cycle at 40℃(104℉)	100% at 40A
Dimension	483mm203mm305mm
Weight	24kg
Cutting Material	Mild Steel, Stainless Steel, Aluminum, etc
Max Cut Thickness	1"
Max Severance Thickness	1, 1/2"
Gas Supply	Clean, Dry, Oil free
Color	Grey
Warranty	12 Months
Recommender Gas Inflet Flow Rate/Pressure	0.2~0.4Mpa, 4.8cfm at 75psi

Features:
1. 200 Amp AC/DC square-wave inverter TIG/Stick (MMA) welder.
2. Automatic dual voltage/ dual frequency (110/220Volt 50/60Hz).
3. High frequency start hand torch control and precise foot pedal welding heat control.
4. Suitable for welding stainless steel, mild steel, aluminum and other metal materials.

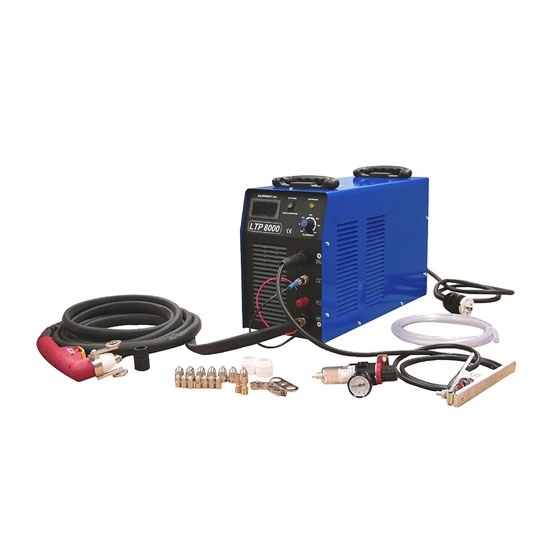

Accessories

Control and Setting

Tips: Types of welder
The main welding machines used by industrial and mining enterprises are AC arc welding machine, DC electric welding machine, argon arc welding machine, carbon dioxide protection welding machine, butt welding machine, spot welding machine, submerged arc welding machine, high frequency welding machine, flash butt welding machine, pressure welding machine, welding machine Laser welding machine.
1. The main application fields of inverter welding machine are the same, but the welding machine is more energy-saving and lighter.
2. Main application fields of submerged arc welding machine large steel structure manufacturing unit, pressure vessel boiler manufacturing unit.
3. Main application fields of gas shielded welding machines Large steel structure manufacturing units or general machinery agricultural machinery, automobile manufacturing plants, security door processing plants, and units for manufacturing pressure vessel boilers are also widely used for gas shielded welding machines.
4. TIG welding machine is mainly used in pipelines, pressure vessel boilers, stainless steel processing enterprises.
5. AC argon arc welding machine is mainly made of aluminum welding manufacturing unit, aluminum container manufacturing unit. Aluminum radiator welding.
