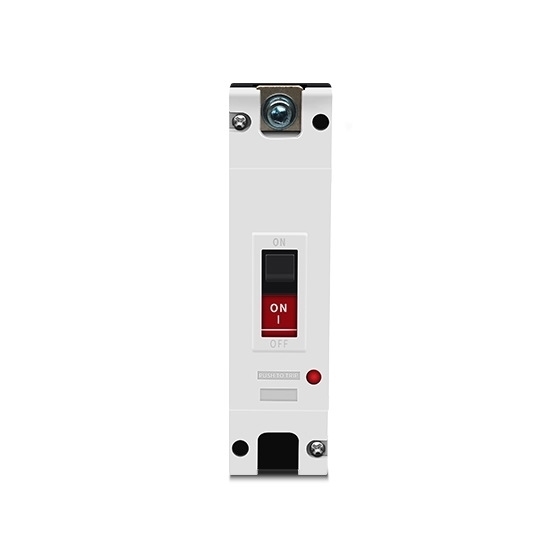

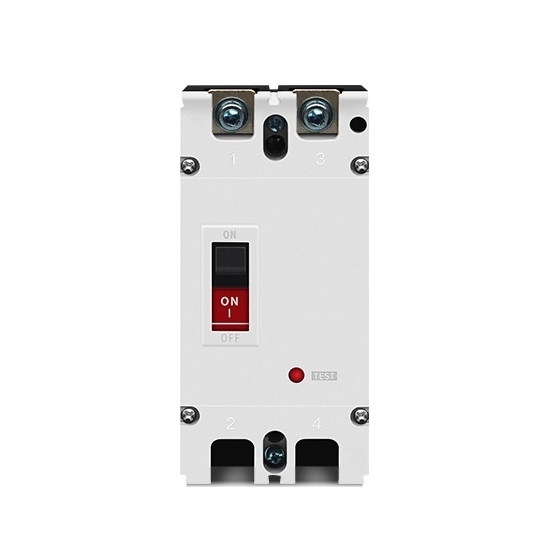

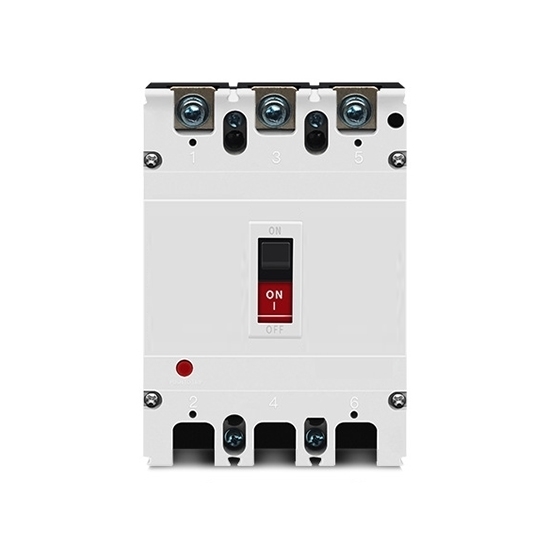

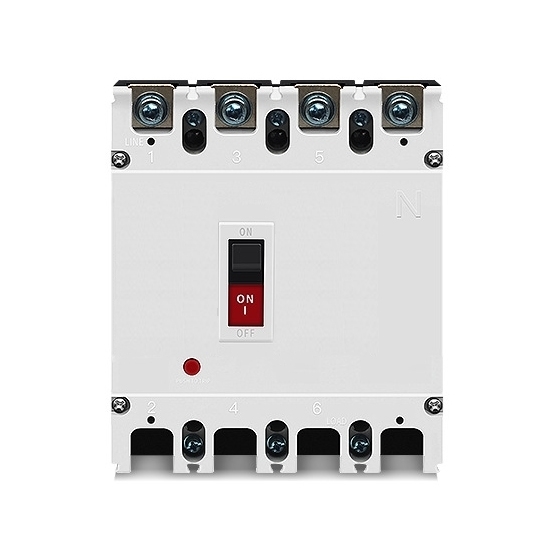

80A DC Circuit Breaker, 1/2/3/4 Pole

0 reviews • Write a review

from

$101.56

Ex Tax: $101.56

Stock: In Stock
Model: RDDLZ-DCCB-80A
Weight: 1.00
SKU: RDDLZ-DCCB-80A

Available Options

Number of Poles

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DC circuit breaker and on-load voltage regulation are transformer tap switch voltage regulation mode. 80A DC circuit breaker widely used in overload protection devic and control appliance.

Features

Extremely high breaking capacity and current limiting characteristics.
Available for installation in standard busbars.
Dual function terminals on top and bottom sides (lifting type / open type).
Optionally fixed to the bus bar on the top or bottom side.
With isolation function, can be used as the main switch.
Wiring terminal guidance to prevent mis-wiring.

Specifications

Electrical Parameter	Model	RDDLZ-FXBN1/BM1-80A
	Current	80A
	Rated Voltage	DC 250V, 500V, 750V, 1000V
	Current Shell Frame	125A
	Numbers of Pole	1 pole, 2 pole, 3 pole, 4 pole
	Breaking Capacity	25 KA
	Rated Insulation Voltage	1000V
	Rated Impulse Withstand Voltage	8 kV
	Total Break Time	20 ms
	Installation Location	any location
	Allowable Ambient Temperature	-25 ℃ ~ 50 ℃
	Protection Level	IP20
	Flying Arc Distance	≥50 mm
	Instantaneous Action Valve	12 ln
	Installation Method	fixed, insertion type
	Standard	IEC60947-2x IEC60947-K GB14048.R GB14048.2
Machinery Parameter	Mounting Method	IEC standard track 35 mm
	Enclosure Protection Level	IP20
	Dual Function Terminals on Both Sides	open type / lifting type
	Terminal Protection	finger touch and hand touch safety
	Terminal Wiring Capacity	1-25 mm²
	Termianal Screw Tightening Torque	2-2.4 Nm
	Bus Bar Thickness	0.8-2 mm
	Mounting Angle	functionaity is independent of location

Dimension (Unit: mm)

Wiring Diagram

Details

Tips: Can I Use AC Circuit Breaker for DC?

The signal of AC current is constantly changing its value for every second. The circuit breaker arc will be extinguished at 0 volts, and the circuit will be protected from big current. But the signal of DC current is not alternating, it works in a constant state, and the voltage value will only change when the circuit is tripped or the circuit is reduced as a certain value. Otherwise, the DC circuit will provide a constant voltage value for every second of a minute. Therefore, since there is no 0 volt point in the DC state, it does not suggest that use a AC circuit breaker for the DC state.
