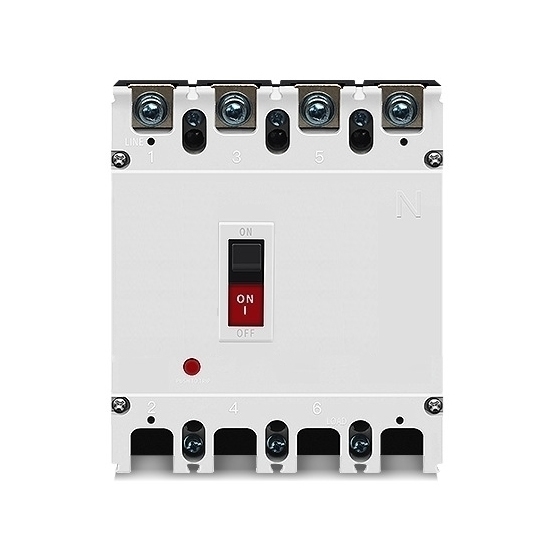

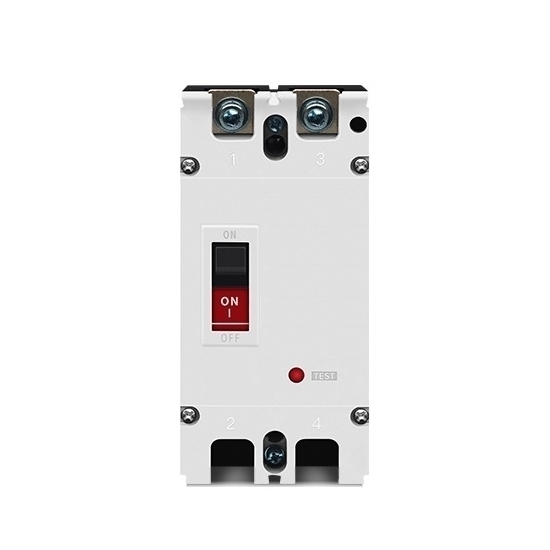

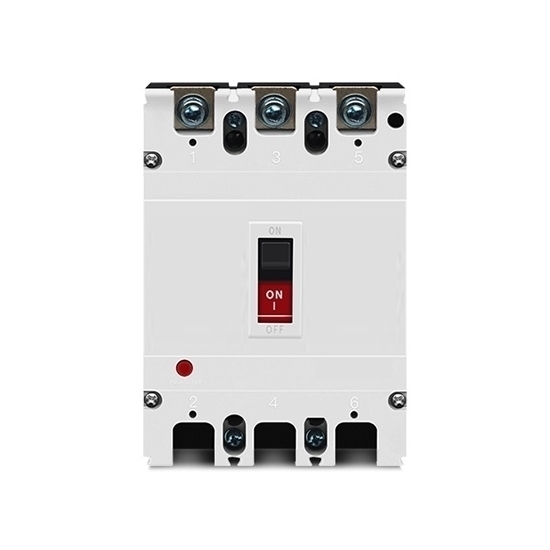

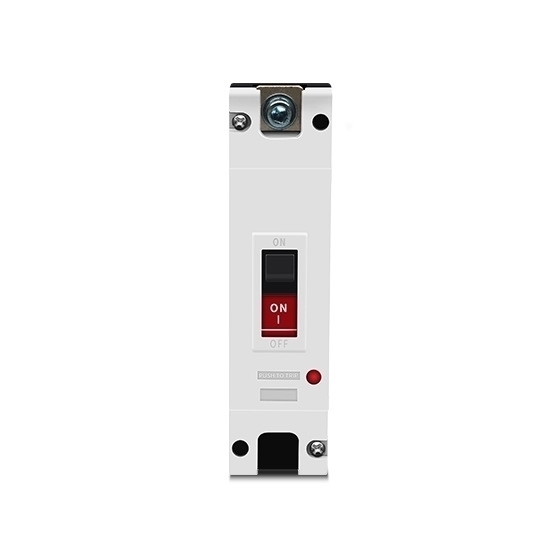

200A DC Circuit Breaker, 1/2/3/4 Pole

0 reviews • Write a review

from

$128.12

Ex Tax: $128.12

Stock: In Stock
Model: RDDLZ-DCCB-200A
Weight: 1.00
SKU: RDDLZ-DCCB-200A

Available Options

Number of Poles

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The operating mechanism of DC solar circuit breaker has fast closing and fast breaking function,compact structure, small size and easy to use.

Features

Extremely high breaking capacity and current limiting characteristics.
Available for installation in standard busbars.
Dual function terminals on top and bottom sides (lifting type / open type).
Optionally fixed to the bus bar on the top or bottom side.
With isolation function, can be used as the main switch.
Wiring terminal guidance to prevent mis-wiring.

Specifications

Electrical Parameter	Model	RDDLZ-FXBN1/BM1-200A
	Current	200A
	Rated Voltage	DC 250V, 500V, 750V, 1000V
	Current Shell Frame	250A
	Numbers of Pole	1 pole, 2 pole, 3 pole, 4 pole
	Breaking Capacity	25 KA
	Rated Insulation Voltage	1000V
	Rated Impulse Withstand Voltage	8 kV
	Total Break Time	20 ms
	Installation Location	any location
	Allowable Ambient Temperature	-25 ℃ ~ 50 ℃
	Protection Level	IP20
	Flying Arc Distance	≥50 mm
	Instantaneous Action Valve	12 ln
	Installation Method	fixed, insertion type
	Standard	IEC60947-2x IEC60947-K GB14048.R GB14048.2
Machinery Parameter	Mounting Method	IEC standard track 35 mm
	Enclosure Protection Level	IP20
	Dual Function Terminals on Both Sides	open type / lifting type
	Terminal Protection	finger touch and hand touch safety
	Terminal Wiring Capacity	1-25 mm²
	Termianal Screw Tightening Torque	2-2.4 Nm
	Bus Bar Thickness	0.8-2 mm
	Mounting Angle	functionaity is independent of location

Dimension (Unit: mm)

Note: If you need copper busbar parts, please contact us.

Wiring Diagram

Detail

Tips: How to Wire DC Circuit Breaker?

Back-panel wiring. The advantage of connecting cables to the rear of the board is that when maintaining the DC circuit breaker, you only need to disconnect the front power supply instead of rewiring it.
Plug in wiring. The advantage of plug in wiring is that when the circuit breaker needs to be replaced, you only need to remove the old circuit breaker and replace it with a new one. It is faster and more convenient than before and after the board in operation.
