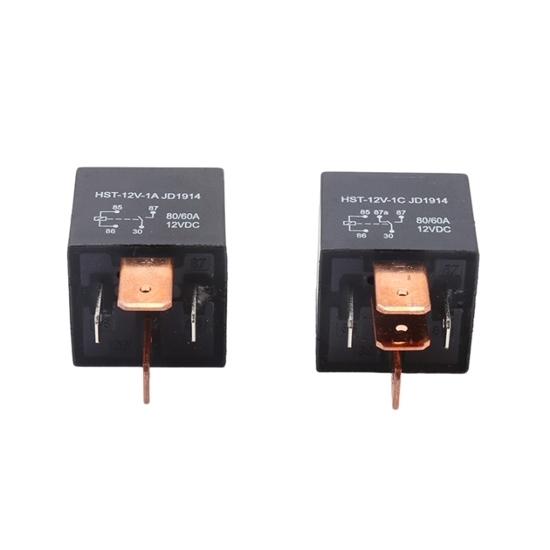

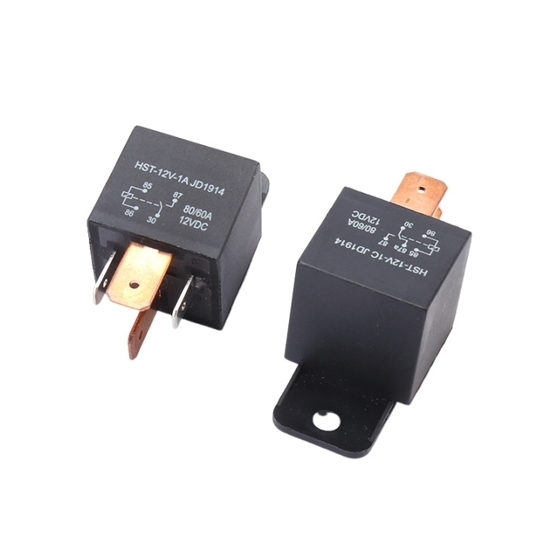

80A Automotive Starter Relay, 12V/24V DC

0 reviews • Write a review

from

$56.59

Ex Tax: $56.59

Stock: In Stock
Model: RDDLZ-ASR-80
Weight: 1.00
SKU: RDDLZ-ASR-80

Available Options

Short Description

Installation Method

Contact Form

Coil Rated Voltage

Contact Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Auto starter relay is designed to optimize your vehicle's starting performance, making it a smart choice for any automotive enthusiast. By efficiently managing high currents between the ignition switch and starter motor, it protects your car's electrical components and enhances overall reliability.

Specification

Model			RDDLZ-JD1914-12/24VDC
Coil Parameter	Rated Coil Voltage		12V DC	24V DC
	Rated Current		150mA	75mA
	Coil Resistance (Ω±10%)		80Ω	320Ω
	Operate Voltage (Max.)		7.8V DC	15.6V DC
	Release Voltage (Min.)		1.2V DC	2.4V DC
	Applicable Voltage (Max.)		130% of rated voltage at 70℃, 170% of rated voltage at 23℃
Operation Condition	Insulation Resistance		100MΩ Min. (at 500V DC)
	Dielectric Strength	Between Contacts	500V AC (for one minute)
		Between Coil and Contacts	500V AC (for one minute)
	Shock Resistance		Operating Extremes: 10g
			Damage Limits: 20g
	Vibration Resistance		10~40Hz 1.5mm
	Release Time		10ms Max.
	Operate Time		10ms Max.
	Ambient Temperature		-40℃~+125℃
	Relative Humidity		40~85%
	Weight		46g
Contact Parameter	Contact Form		1A (4 pin SPST NO)/ 1B (4 pin SPST NC)/ 1C (5 pin SPST M-B)
	Contact Material		Silver Alloy
	Contact Rating (Resistance)		NO: 50A 14V DC
			NC: 40A 14V DC
			NO: 80A 14V DC
			NC: 60A 14V DC
	Max. Switching Voltage		75V DC
	Max. Switching Current		60A/80A
	Max. Switching Power		1120W
	Contact Resistance		100mΩ Max. at 6V DC 1A
	Load		Resistive Load (COS φ1)
	Min. Load		0.5A 12V DC
	Electrical Life		100000 Operations (at 30 Operations/Minute)
	Mechanical Life		10000000 Operations (at 30 Operations/Minute)

Dimension (Unit: mm)

Note: In case of no tolerance shown in outline dimension: outline dimension 1mm, tolerance should be ±0.2mm; Outline dimension 1mm and 5mm, tolerance should be ±0.3mm; Outlet dimension 5mm, tolerance should be ±0.4mm.

Wiring & Installation Diagram

Tips: Does the automotive starter relay require regular maintenance?

Automotive starter relays generally do not require regular maintenance. These components are designed to be durable and reliable, functioning effectively for the lifespan of the vehicle without frequent attention. However, it is essential to ensure the overall electrical system of the vehicle is in good condition, as this can impact the performance of the starter relay.

Occasionally, issues such as corroded or loose connections, worn-out contacts, or wiring problems can affect the relay's performance. If starting problems occur, inspecting the relay and its connections should be part of the troubleshooting process. Cleaning any corrosion from terminals and ensuring tight connections can help maintain optimal performance.

While regular maintenance is not typically necessary, keeping an eye on the starter relay during routine vehicle inspections can help identify and address potential issues early, ensuring the vehicle starts reliably and preventing unexpected breakdowns.
