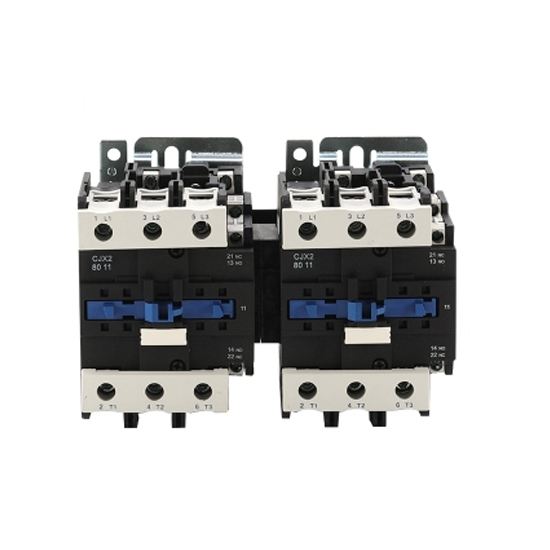

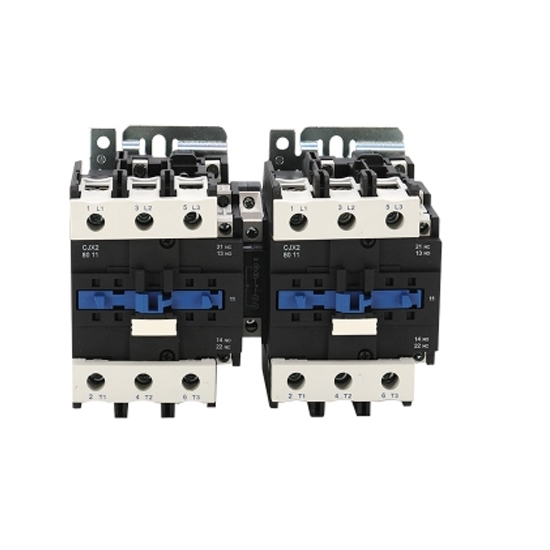

80 Amp Mechanical Interlock AC Contactor

0 reviews • Write a review

from

$142.59

Ex Tax: $142.59

Stock: In Stock
Model: RDDLZ-ACCON-80N
Weight: 1.00
SKU: RDDLZ-ACCON-80N

Available Options

Contact Form

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Best price mechanical interlocking contactor is an electrically controlled switch constructed with a mechanical interlock and two revering contactor, which is used for switching an electrical power circuit.

Specification

Model			RDDLZ-CJX2-80N
Rated Operational Current	380V	AC-3	80A
		AC-4	37A
	660V	AC-3	49A
		AC-4	17.3A
Conventional Heating Current			110A
Rated Insulation Voltage			690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V		22kW
	380V		37kW
	660V		45kW
Operational Frequency	Electric Life	AC-3	600 times/h
		AC-4	150 times/h
	Mechanical Life		2400 times/h
Service Life	Electric Life (10⁴ Operations)	AC-3	60
		AC-4	10
	Mechanical Life (10⁴Operations)		600
Matching Fusing Model			RT16-100
Average Power Consumption (20℃) @ 50Hz	Pick-up		230VA
	Holding		32VA
Contact Form (Optional)			3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size			35mm
Ambient Temperature			-5℃~+40℃
Altittude			≤2000m
Class of Pollution			Class 3
Installation Category			Ⅲ

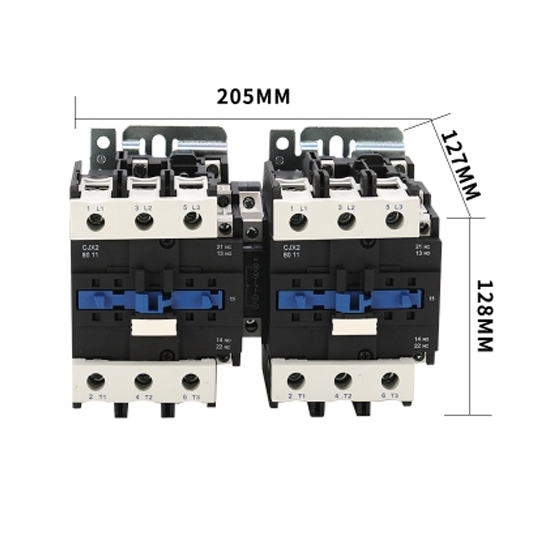

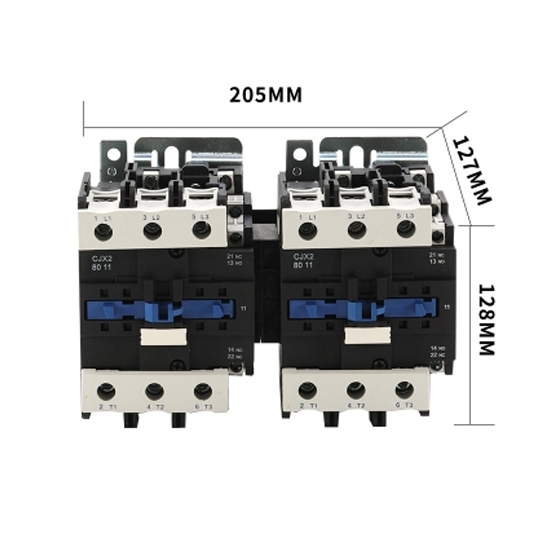

Dimensions			205 x 128 x 127mm
Weight			3.5kg

Tips: Classification of AC contactors

AC contactors are generally divided into one, two, three, and four types according to the type of load, which are denoted as AC-1, AC-2, AC-3, and AC-4. The corresponding control object of the first type of AC contactor is non-inductive or micro-inductive load, such as incandescent lamps, resistance furnaces, etc.; the second type of AC contactor is used to start and stop the wound asynchronous motor; the typical use of the third type of AC contactor is The squirrel cage asynchronous motor is running and disconnected during operation; the four types of AC contactors are used for the starting, reverse braking, reverse rotation and inching of the cage asynchronous motor.
