Note: This knife gate valve cannot be used for drinking water.

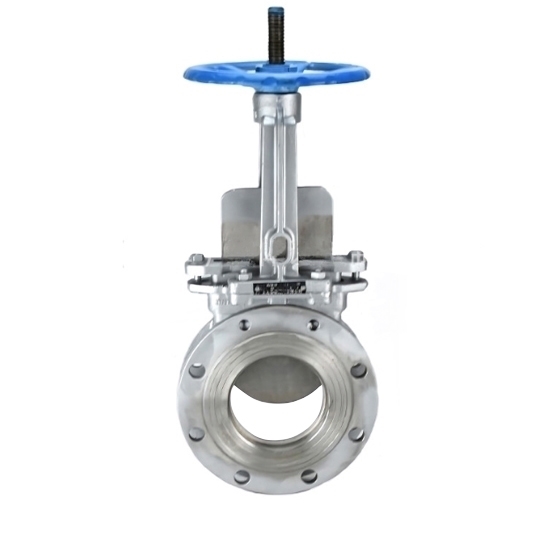

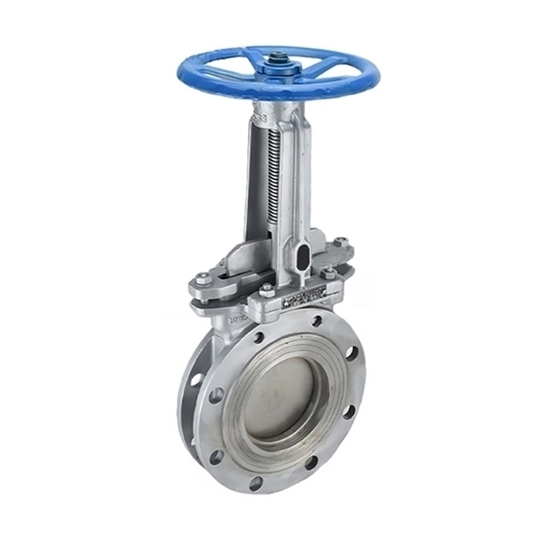

8 Inch stainless steel wafer knife gate valve is available for pulp, coal ash, chemical raw materials and other media, nominal pressure within 1.6PMa. The knife gate valve is made of stainless steel for higher corrosion resistance.

Specification

• Model: RDDLZ-FC-KGV-200
• Nominal Diameter: 8 Inch (200mm)
• Nominal Pressure: 1.6MPa
• Valve Body Material: Stainless steel 304
• Sealing Material: EPDM Rubber
• Connection Form: Clamping method
• Valve Type: F304 Flanged Wedge Type
• Applicable Medium: Syrup, paper pulp, sewage swelling, coal slurry, ash, slag water mixture
• Weight: 38kg

Features

• The wafer knife gate valve has a knife type beveled cutout, which has the function of cutting off the medium, so that the wafer knife gate valve is not blocked by the medium.
• The wafer knife gate valve features light opening and closing, good sealing, good elastic memory and long service life.
• The 8 inch knife gate valve has a full round passage design and can be set up with multiple flushing ports around the valve body.
• The stainless steel knife gate valve gate can effectively prevent sealing leakage caused by corrosion.

Dimension (Unit mm)

Applications

Knife gate valves are generally used for the circulation of media such as paper pulp, coal ash, chemical materials, sewage, and foodstuffs. RDDLZ stainless steel knife gate valve has the remarkable advantages of light switch, good sealing, good elastic memory, and long service life. It can be widely used in water, sewage, construction, petroleum, chemical, food, medicine, light textile, electric power, ship metallurgy, energy system and another body pipeline as a regulating and intercepting device.

Tips: What sizes are knife gate valves available in?

Knife gate valves are available in a wide range of sizes, typically ranging from 2 inches to 60 inches in diameter. The size of a knife gate valve is determined by the diameter of the pipeline it is intended to be used with. The size of the valve should match the size of the pipeline to ensure proper flow control and a secure fit.

It's important to note that the actual dimensions of a knife gate valve can vary depending on the manufacturer and the specific model. Some manufacturers offer custom sizes to accommodate unique pipeline requirements. Additionally, some knife gate valves are designed for specific applications, such as slurry control or high-pressure applications, and these may have different size ranges or specifications.
