Note: This knife gate valve cannot be used for drinking water.

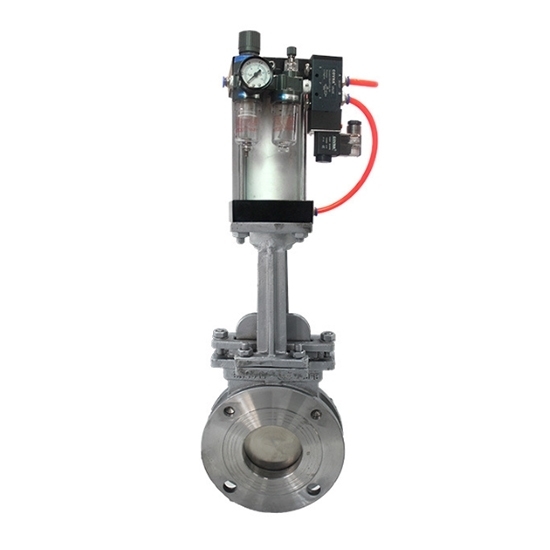

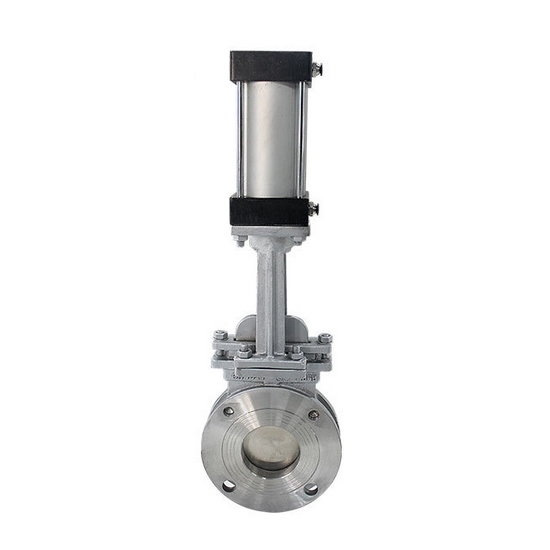

The 2-inch stainless steel pneumatic knife gate valve is used for quick cutting or opening requirements and can be installed horizontally or obliquely. The pneumatic knife gate valve adopts an integrated structure, ultra-thin design, full-diameter circulation, and is not prone to leakage and easy to disassemble and install.

Note:

• Double Acting: Ventilation On, Ventilation Off; Maintain current position in case of air source failure.
• Single Acting AC, Air-Open: Ventilation On, Air Disconnected; Close on air source failure.
• Single Acting AC, Air-Close: Ventilation Off, Air Disconnected; Open on air source failure.

Specification

• Model: RDDLZ-FC-PKGV-50
• Drive mode: Pneumatic
• Nominal Diameter: 2 Inch (DN50)
• The direction of Flow: Unidirectional default (Please contact us for bidirectional)
• Seal Material:  Stainless steel 304 (Other materials please contact us)
• Body Material (Optional): Cast iron or stainless steel
• Number of Gates: Single gates
• Connection Mode: Flange/lug/wafer
• Working Pressure: 1.0MPa (PN10)
• Air Source: 2.5bar-8bar
• Medium: Slurry, material, viscous fluid
• Working Temperature: -30-300°C
• Medium Temperature: -20-150°C
• Mode of Action: Double acting, single acting normally closed, single acting normally open

Features

• The 2 inch pneumatic knife gate valve adopts a one-piece structure, ultra-thin design, full-diameter flow, and is not prone to leakage, with convenient disassembly and assembly.
• The stainless steel knife gate valve has good sealing performance, strong wear resistance, automatic compensation, and long service life.
• The fixed guide claw design, replacement groove structure, and is not easy to accumulate and prevents jamming.
• The double-bearing design has low torque, frequent opening and closing, no vibration, and no noise.
• The pneumatic knife gate valve has strong cutting force and self-cleaning function, and is suitable for fiber particle fluid.

Dimension (Unit mm)

Details

Applications

Knife gate valves are generally used for the circulation of media such as paper pulp, coal ash, chemical materials, sewage, and foodstuffs. RDDLZ knife gate valve has the remarkable advantages of light switch, good sealing, good elastic memory, and long service life. It can be widely used in water, sewage, construction, petroleum, chemical, food, medicine, light textile, electric power, ship metallurgy, energy system and another body pipeline as a regulating and intercepting device.

Tips: What is pneumatic knife gate valve?

A pneumatic knife gate valve is a type of gate valve that uses compressed air to actuate the valve's opening and closing mechanism. It is typically used in industrial applications, such as fluid or material transfer in pipelines, to control the flow of liquids or solids. The valve's design features a gate or "knife" that moves up and down to open or close the flow path. The pneumatic actuator provides fast, reliable, and precise control, making it a popular choice in process control applications.
