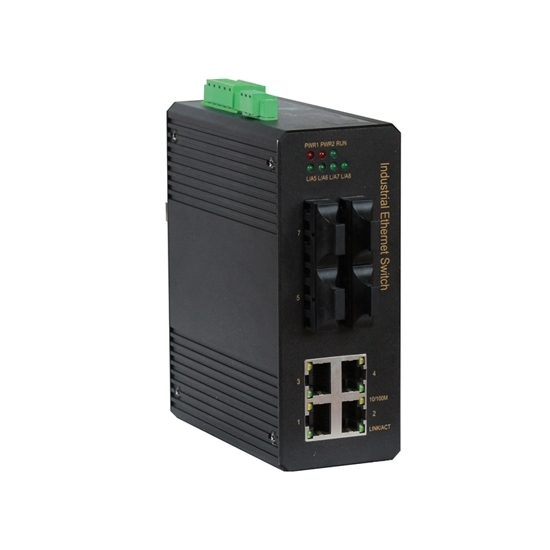

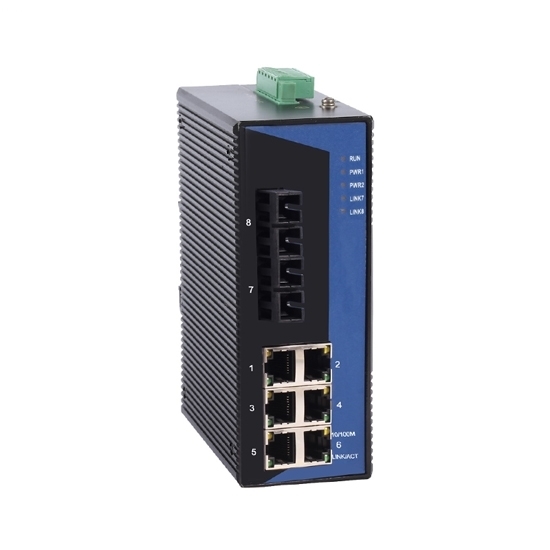

8 Port Unmanaged Industrial Switch, 10/100M, Din Rail

0 reviews • Write a review

from

$169.23

Ex Tax: $169.23

Stock: In Stock
Model: RDDLZ-ES-EN2208
Weight: 1.00
SKU: RDDLZ-ES-EN2208

Available Options

Short Description

Power Supply Selection

Port Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price EN2208 unmanaged 8-port industrial switch, equipped with IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDIX auto-sensing RJ45 ports, simply plug in the Ethernet cable and connect the power cord to get started, no software configuration required.

Specification

Model	RDDLZ-EN2208
Technical Parameters
Protocol Standard	IEEE802.3 (Ethernet), IEEE802.3u (100Base-TX & 100Base-FX), IEEE802.3x (Flow control)
Switch Capability
MAC Table Size	4k
Backplane Bandwidth	1.6Gbps
Switch Delay	<5μs
Interface
100M Port	Number: 8
	Connector: 1×9 fixed optical port (single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port
	Baud rate: 100Base-FX (Optical port), Self-adaption 10/100Mbase-TX
Terminal Block for Power Input	5.08mm terminal block
Terminal Block for Relay Alarm	5.08mm terminal block, 1A@24VDC
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
Multi-mode Fiber	100M multi-mode: 1310nm, 2km
Single Mode Fiber	100M single mode: 1310nm, 20/40km; 1550nm, 60/80km
LED Indicator Lights
Front Panel LED Lights	Port light: LINK/ACT, SPEED, Lx
	System work light: RUN
	Power status light: PWR1, PWR2
Power
Input Power	DC 110~220V (Wide voltage: DC 110~370V) or AC 100~240V (Wide vltage: AC 85~264V) Support optional for DC12V, DC24V, DC48V
Power Consumption	<6W@(MAX)
Overload Protection	support
Inversed Protection	support
Redundancy Protection	support
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 35mm din-rail mounting
Dimension	EN2208: 33mm x 144mm x 97mm (W×H×D) EN2208-1/2/4F: 54mm x 144mm x 97mm (W×H×D)
Weight	400g
Industry Standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6

Dimensional Drawing (mm)

Tips: The difference between managed industrial switches and unmanaged industrial switches
The task of a managed industrial switch is to keep all network resources in good condition. The unmanaged industrial switch does not directly process the data.

1. Different functions
The data of the managed industrial switch is configured through Simple Network Management Protocol (SNMP), which is the most widely used network management protocol based on TCP/IP network. It can filter the address, port, protocol type, service, etc. of the data. It also usually has VLAN division.
The unmanaged industrial switch lacks the network management function and does not directly process the data. Therefore, there are still quite large markets in some specific industries and fields, such as the power industry, coal mining industry, and transportation industry.

2. Different working modes
The managed industrial switch provides multiple network management methods based on the console and web pages. Therefore, the administrator can monitor and manage the working status and network running status of the switch in real time.
The unmanaged industrial switch is a plug-and-play Ethernet switch that does not require any settings and can be used by plugging in the Internet cable.
