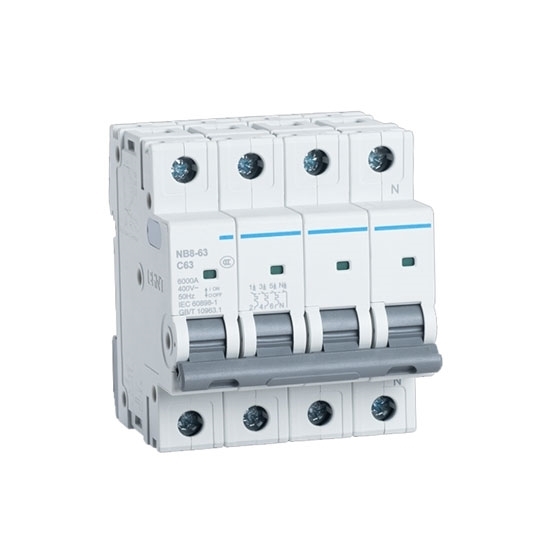

63 Amp 4 Pole Miniature Circuit Breaker

0 reviews • Write a review

from

$93.85

Ex Tax: $93.85

Stock: In Stock
Model: RDDLZ-MCB-4P63
Weight: 1.00
SKU: RDDLZ-MCB-4P63

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4 pole C63 MCB miniature circuit breaker has a C curve trip characteristic making it suitable for a wide range of applications, including those with moderate inrush currents, such as motors and lighting systems.

4 Pole MCB Breaker Information

Rated Current: 63 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 4 pole
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		RDDLZ-NB8-634PC63
Rated Current		63A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		4P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

4 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: 63 amp 4 pole miniature circuit breaker applications

A 63-amp, 4 pole miniature circuit breaker (MCB) is commonly used in electrical distribution systems to protect electrical circuits from overloads and short circuits. The 4 pole mini circuit breaker is designed for three-phase electrical systems, allowing for protection across all three phases and neutral, which is especially beneficial in industrial, commercial, and large residential setups.

Applications include:

Industrial Equipment: Protecting motors, transformers, and other industrial machinery.
Commercial Buildings: Ensuring safe operation of three-phase electrical systems in offices, malls, and warehouses.
HVAC Systems: Offering protection to heating, ventilation, and air conditioning systems in large buildings.
Renewable Energy Systems: Used in solar inverters and other energy conversion systems to safeguard circuits.
Data Centers: Providing backup power protection for sensitive equipment in critical environments.
