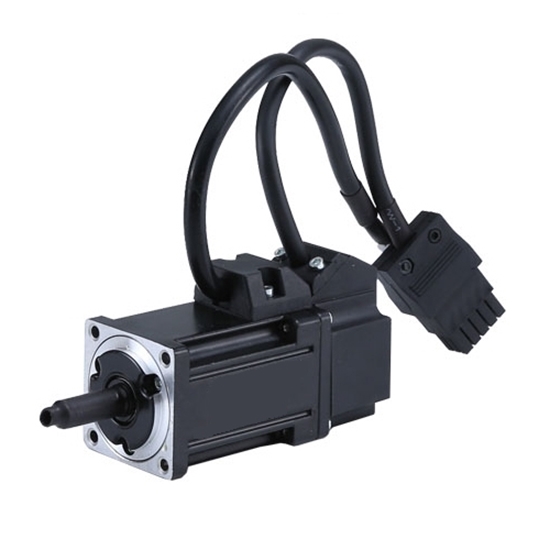

50W AC High Speed Servo Motor, 3000 Rpm

0 reviews • Write a review

from

$384.15

Ex Tax: $384.15

Stock: In Stock
Model: ATO40ST-M00130220
Weight: 1.00
SKU: ATO40ST-M00130220

Available Options

Short Description

Absolute Encoder

Motor Cable & Encoder Cable

With Matched Drive

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50 watt AC brushless servo motor rated speed of 3000 rpm, maximum high speed up to 3600 rpm. High precision servo motor provides excellent dynamic response, and equipped with a 2500 PPR incremental encoder or absolute encoder.

Specification

Basics	Model	RDDLZ40ST-M00130220
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	40 mm
	Rated Power	50 W
	Rated Voltage	single phase or three phase 220V AC
	Rated Current	0.4 A
	Rated Speed	3000 rpm
	Rated Torque	0.16 Nm
	Peak Torque	0.32 Nm
	Weight	0.32 Kg
	Length	75 mm
Technical Parameters	Voltage Constant	36.8 V/ 1000r/ min
	Torque Coefficient	0.4 N.m/ A
	Torque Inertia	0.025 x 10^-4 Kg.M²
	Line-Line Resistance	108 Ω
	Line-Line Inductance	108 mH
	Electrical Time-Constant	1.0 ms
	Incremental Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 75mm, L (with brake): 109mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Incremental Encoder Line	U (Red)	V (Brown)	W (Green)	PE (White)
	Absolute Encoder Line	PE (White)	U (Red)	V (Green)	W (Brown)
	Socket Number	1	2	3	4

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
