50A DC Arc Plasma Cutter, Dual Voltage 110V/220V

0 reviews • Write a review

from

$857.98

Ex Tax: $857.98

Stock: In Stock
Model: RDDLZ-WM-LTP5000D
Weight: 1.00
SKU: RDDLZ-WM-LTP5000D

Available Options

Input Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dual voltage arc welder output current with 10-50A, suitable for welding stainless steel, mild steel, aluminum and other metal material, RDDLZ welding supplies manufacturer direct sales.

Specifications

Model	RDDLZ-WM-LTP5000D
Output Power	DC
Input Voltage	110V/220V, +/15%, 1-PH, 50Hz/60Hz (Automatic dual frequency)
Input Current	240V, 1-PH, 20A
Output Current	10-50A
Power	7.1 kVA
Power Factor	0.73
Duty Cycle at 40℃ (104℉)	60% at 50A, 240V
Dimension	381mm152.4mm340.8mm
Weight	11.8kg
Cutting Material	Mild Steel, Stainless Steel, Aluminum, etc
Welding Thickness	1/2"
Gas Supply	Clean, Dry, Oil-Free Argon
Color	Red
Warranty	12 Months
Input Power Cable Length	6' (1.8m)
Max Severance Thickness	3/4"
Recommender Gas Inflet Flow Rate/Pressure	3.6scfm at 65psi

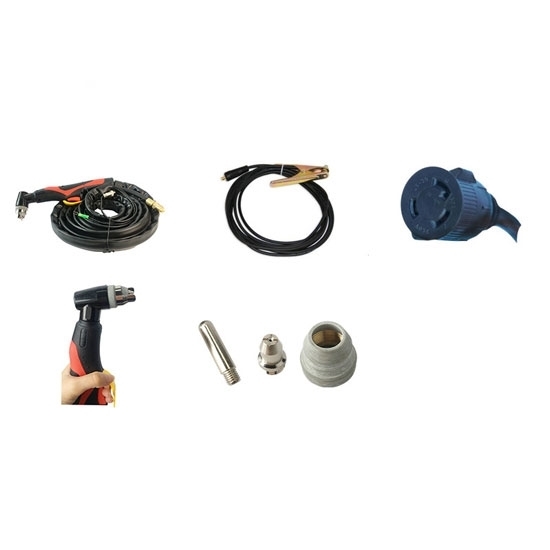

Accessories	Pilot Arc Plasma Torch ( 9’5")
	Plasma Consumables (installed on the torch head)
	Air Filter/Regulator
	Ground Clamp&Cable
	Connections, (like air house etc.)
	User Manual

Cut Chart

Material	Thickness		Current
Material	inches	mm	amps
Mild Steel	10 gauge	3	50
	1/4	6	50
	3/8	10	50
	1/2	12	50
	5/8	16	50
Stalinless Steel	10 gauge	3	50
	1/4	6	50
	3/8	10	50
	1/2	12	50
Aluminum	1/8	3	50
	1/4	6	50
	3/8	10	50
	1/2	12	50

Features:
1. 10-50 Amp AC/DC square-wave inverter TIG/Stick (MMA) welder.
2. Automatic dual voltage/ dual frequency (110/220Volt 50/60Hz).
3. High frequency start hand torch control and precise foot pedal welding heat control.
4. Suitable for welding stainless steel, mild steel, aluminum and other metal materials.

Accessories

Structure

Tips: What is The Difference Between AC Welding Machine and DC Welding Machine?
The output current is used to distinguish AC and DC. The more important weldments (such as boilers, pressure vessels and alloy structural steels) generally use DC welding machine, which has beautiful weld formation, stable arc, small splash, low air consumption, and general welding. The DC welding machine for alkaline welding rods has good crack resistance and mechanical properties, but the process performance is poor. The AC welding machine mainly welds low carbon steel and low strength low alloy structural steel. Generally, it is welded by welding acid electrode. The acid electrode can be used for both AC and DC, and the welding process performance is good, but the mechanical properties of the weld, especially the impact toughness is poor. The price of the DC welder equipment is slightly higher than that of the AC welder, and the durability is slightly poor and the maintenance cost is high.
