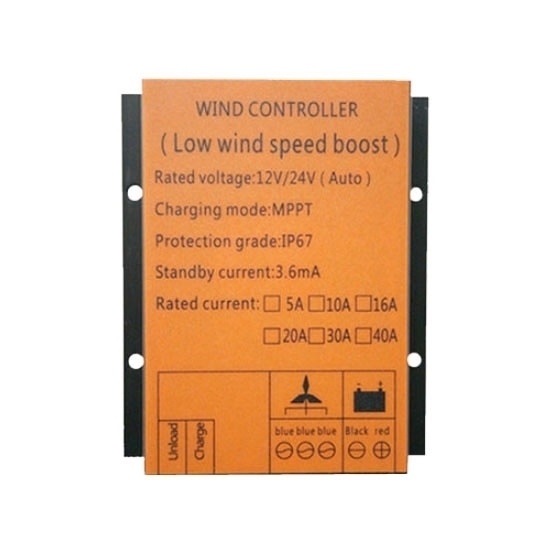

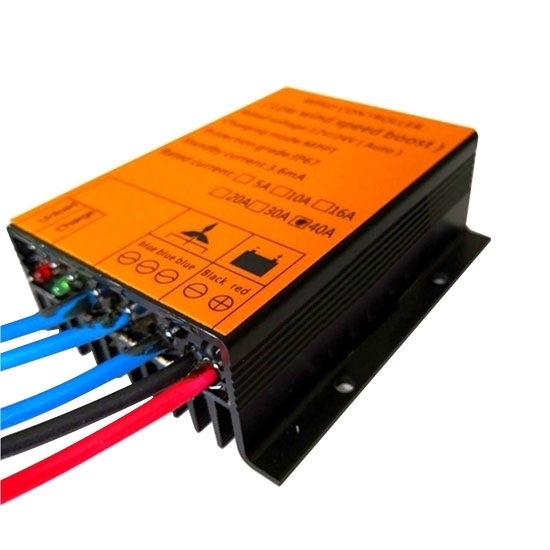

500W Wind Turbine MPPT Charge Controller, 12V/24V

0 reviews • Write a review

from

$99.82

Ex Tax: $99.82

Stock: In Stock
Model: RDDLZ-WTCMPPT-500
Weight: 1.00
SKU: RDDLZ-WTCMPPT-500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Wind turbine mppt charge controller for sale, voltage 12V/24V (auto), high protection, IP67, standby current 3.6mA, wind power charge controller is safe and reliable, and can effectively prevent the runaway when the wind speed is too fast, and the danger to the wind generator when strong wind occurs.

Note:

The controller needs to be selected according to the power of the wind turbine and the battery voltage.

Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Specification

Model	RDDLZ-WTCMPPT-500
Rated Voltage	12V/24V (Automatic recognition voltage) RDDLZ recommends the same generator voltage as the battery voltage
Wind Generator Rated Power	500W
Protection	Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
Function	MPPT Charging
Unloading Way	PWM Electrodeless and noiseless unloading
Working Temperature	-20~+60°C 35~85%RH
Dimension	1008015mm
Net Weight	0.4kg

Features
1. High quality technical components ensure the stability and reliability of the wind turbine controller.
2. Waterproof and dustproof, the controller can be used in various outdoor environments.
3. Voltage/current control charging ensures that the battery is always charged.
4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

Wind Power System Connection Diagram
