50 Amp Mechanical Interlock AC Contactor

0 reviews • Write a review

from

$124.29

Ex Tax: $124.29

Stock: In Stock
Model: RDDLZ-ACCON-50N
Weight: 1.00
SKU: RDDLZ-ACCON-50N

Available Options

Contact Form

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

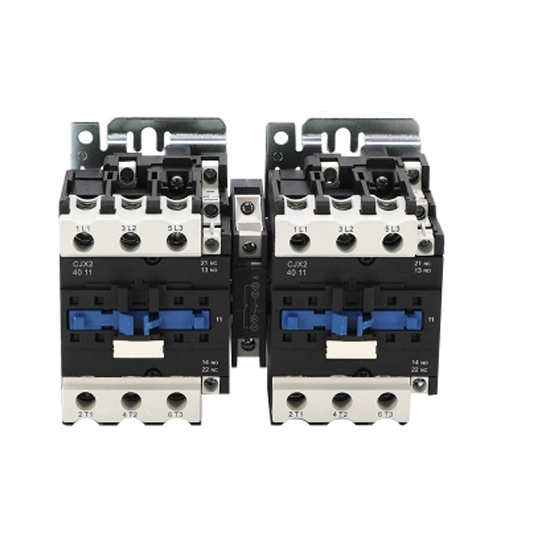

High performance mechanical interlocking contactor is an electrically controlled switch constructed with a mechanical interlock and two revering contactor, which is used for switching an electrical power circuit.

Specification

Model			RDDLZ-CJX2-50N
Rated Operational Current	380V	AC-3	50A
		AC-4	24A
	660V	AC-3	39A
		AC-4	12A
Conventional Heating Current			80A
Rated Insulation Voltage			690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V		15kW
	380V		22kW
	660V		33kW
Operational Frequency	Electric Life	AC-3	600 times/h
		AC-4	150 times/h
	Mechanical Life		3600 times/h
Service Life	Electric Life (10⁴ Operations)	AC-3	60
		AC-4	15
	Mechanical Life (10⁴Operations)		800
Matching Fusing Model			RT16-63
Average Power Consumption (20℃) @ 50Hz	Pick-up		230VA
	Holding		32VA
Contact Form (Optional)			3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size			35mm
Ambient Temperature			-5℃~+40℃
Altittude			≤2000m
Class of Pollution			Class 3
Installation Category			Ⅲ

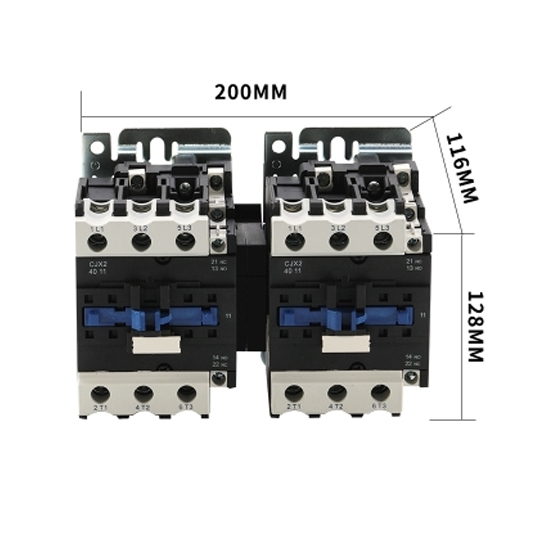

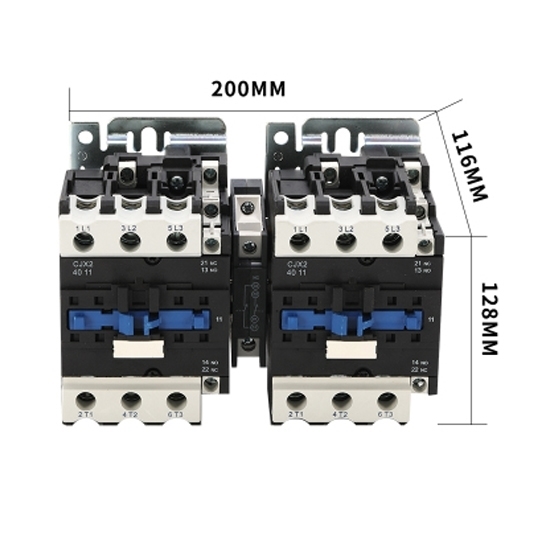

Dimensions			200 x 128 x 116mm
Weight			3kg

Tips: Electromagnetic system of AC contactor

The electromagnetic system of the AC contactor is mainly composed of three parts: coil, iron core and armature. Its function is to make the armature and the iron core pull in or release by energizing or de-energizing the electromagnetic coil, thereby driving the moving contact and the static contact to close or break to realize the purpose of connecting or breaking the circuit.
