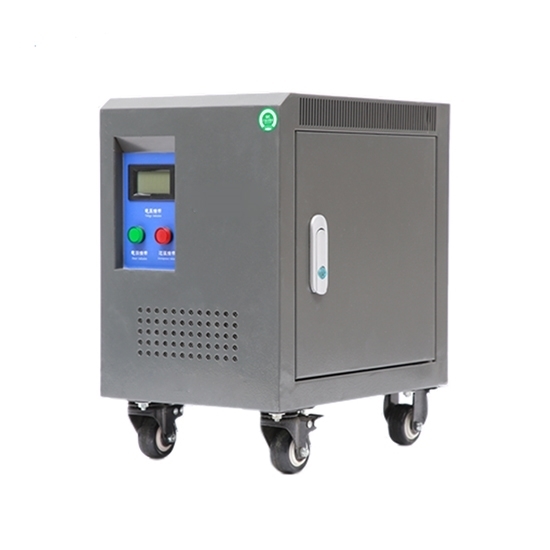

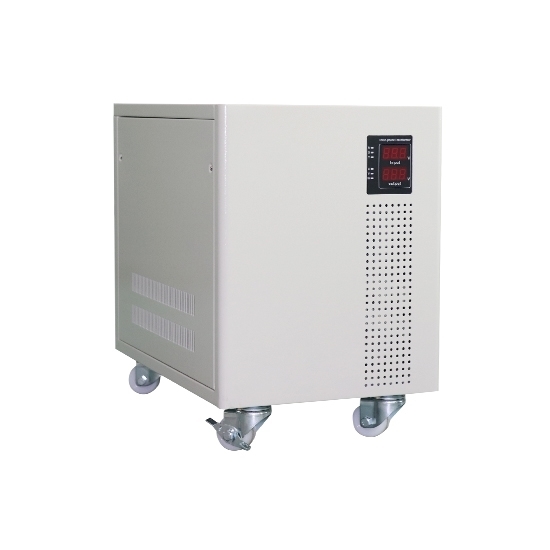

5 kVA single phase isolation transformer for sale at affordable price, primary voltage 230V AC and secondary voltages 120V AC, working efficiency up to 95%, better dielectric strength and insulation resistance, lower noise, lower temperature rise, higher safety.

Applications

Single phase isolation transformer has a reasonable design, is safe and reliable, and has no waveform distortion, completely insulates the electrical between the primary and secondary sides and isolates the circuit. It is widely used in transportation, construction sites, printing, CNC machine tools, docks, precision equipment, industrial mining enterprises and tunnels for power transmission and distribution to solve voltage conversion problems.

Basic Specifications

• Model: RDDLZ-DG5kVA
• Capacity: 5kVA
• Phase: Single phase
• Winding Material: Aluminum/Copper wire (Optional)
• Frequency: 50Hz/60Hz
• Work Efficiency: ≥95%
• Primary Voltage: 230V AC (optional: 110V/ 120V/ 208V/ 220V/ 240V)
• Secondary Voltage: 120V AC (optional: 110V/ 208V/ 220V/ 230V/ 240V)
• Weight: 58 kg

Technical Specifications

• Cooling Mode: Natural or air cooling
• Insulation Resistance: ≥50 MΩ
• Electrical Strength: 2000V AC/1 min
• Noise: ≤35dB (1 meter)
• Insulation Grade: Grade B (130℃), Grade F (155℃), Grade H (180℃)
• Overload Capacity: Allow more than 1.2 times rated load to work for up to 1 hour
• Induced Overvoltage Withstand Test: 125Hz/800V/min
• Impedance Voltage: About 6%
• Total Losses: 10%
• Certification: CE, ISO
• Temperature: -15℃~+45℃
• Enclosure Protection Grade: IP20
• Warranty: 12 months

Features

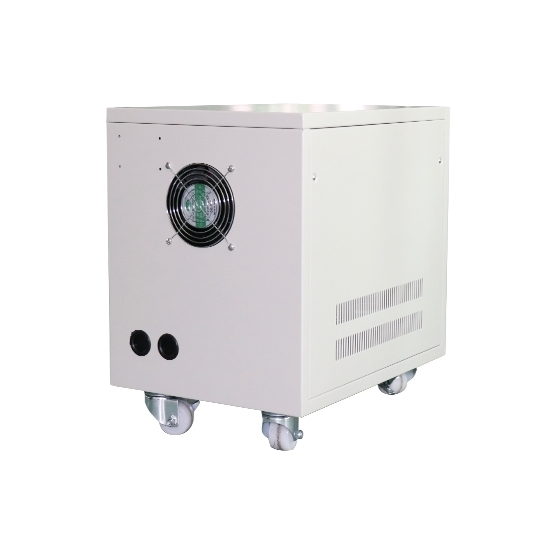

• Heat dissipation holes and fans: The enclosure is a multi-hole design, the back of the transformer installed cooling fan, can be strong and effective heat dissipation, reduce the temperature of the machine, to better protect the internal components.
• Two-color indicator: Input and output using LCD digital display meter, equipped with indicators to accurately display the voltage when working state.
• High temperature resistant enameled wire: High temperature resistance up to 180℃, good insulation and not easy to aging, prolong the service life of the machine.

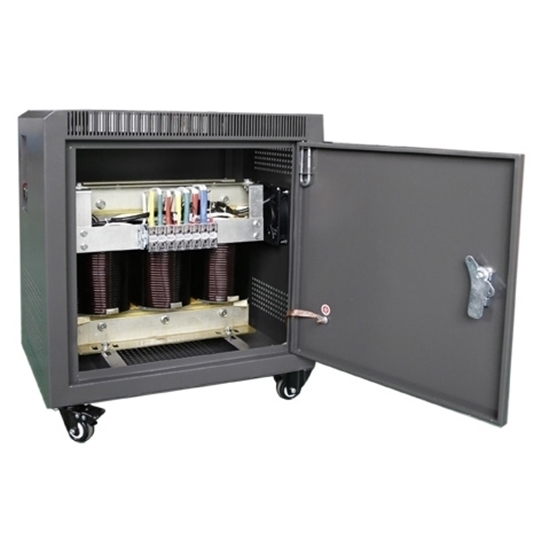

• Oriented silicon steel sheet: Cold rolled oriented silicon steel sheet is used, which has the advantages of good heat dissipation coefficient, low core loss and good magnetization characteristics.
• Long-term continuous work: With a wide range of applicable loads, can withstand transient overload, can work continuously for a long time.

• Universal casters: Isolation transformer with four universal wheels, easy to move, can rotate 360 degrees, more energy-saving when pushing.

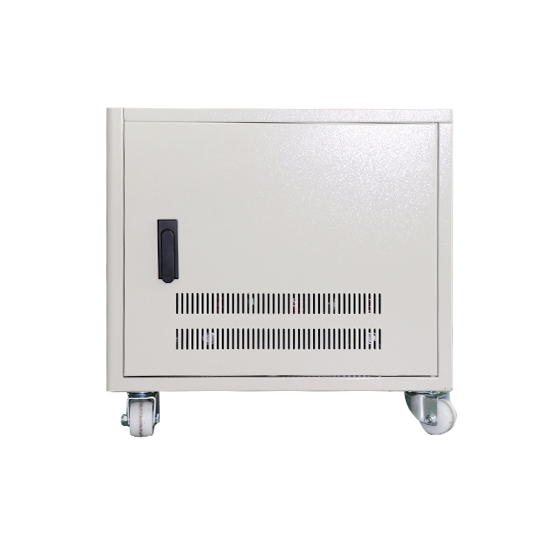

• Enclosure: With strong enclosure to effectively prevent dust and protect the internal transformer.

Note:

1. Transformer can only convert voltage and CANNOT convert frequency.

2. Transformer CANNOT convert single phase to 3 phase voltage.

3. Support voltage customization, various specifications customization.

Diagram

Details

Tips: Protective device to be installed in a 5 kVA isolation transformer

1. Gas protection that reflects the internal faults of 5 kVA single phase 230V to 120V isolation transformer oil tank and oil surface reduction.
2. Longitudinal differential protection or current fast-trip protection that reflects the interphase short circuit of isolation transformer winding and outgoing line, the single-phase grounding short circuit of neutral-point solid ground winding and outgoing line.
3. Overcurrent protection that reflects the external interphase short circuit of step up/ dowm transformer and plays as the differential protection reserve of gas protection box (or current fast-trip protection).
4. Zero-sequence current protection that reflects the external and internal grounding short-circuit of the 5 kVA isolation transformer in the neutral-point solid ground system.
   Overload protection that reflects the symmetrical overloading of the transformer.
