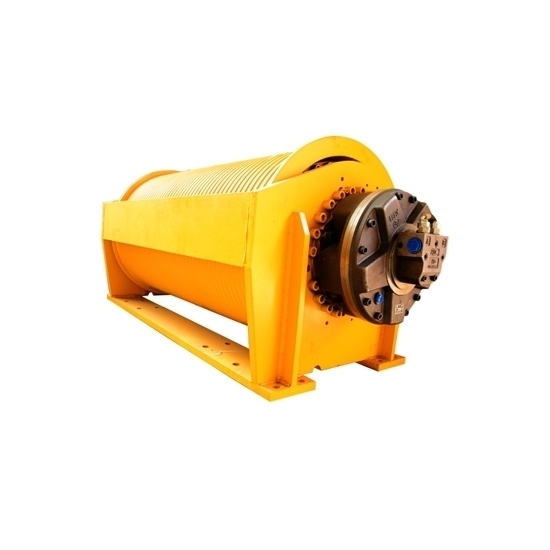

40000 Lbs Hydraulic Winch

Free Shipping

40000 Lbs Hydraulic Winch

0 reviews • Write a review

from

$25,100.99

Ex Tax: $25,100.99

Stock: In Stock
Model: RDDLZ-HWINCH-40000
Weight: 1.00
SKU: RDDLZ-HWINCH-40000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic winch is a device that uses hydraulic power to reel in or let out a cable or rope. It is commonly used in heavy-duty applications such as towing, construction, and off-road vehicles. The hydraulic system provides the necessary force and control for efficient pulling and lifting operations.

Specification

Model		RDDLZ-HW200-200
The 1st Layer	Pull	40000 lbs (20 ton)
	Rope Speed	0~15 m/min
Working Pressure Differential		16 Mpa
Oil Flow Supply		240 L/min
Rope Diameter		40mm
Hydraulic Motor		BMR-600
Planetary Reduction Ratio		1:55

Layer		Wire Rope Capacity
1		36m
2		55m
3		85m
4		110m

Note*:

Never exceed working load limit.
This hydraulic winch does not include wire rope.
If you want to purchase wire rope, please contact us.

Dimensions (Unit: mm)

Tips: Hydraulic winch for fishing boats

A hydraulic winch is a vital piece of equipment commonly used in fishing boats to facilitate the process of hauling and deploying fishing nets, traps, and other heavy equipment. It is specifically designed to handle the demanding tasks involved in fishing operations.

The hydraulic winch operates using hydraulic power, which is generated by a hydraulic system onboard the boat. This system consists of a hydraulic pump, hydraulic lines, and a hydraulic motor. The pump pressurizes hydraulic fluid, which is then directed through the lines to the motor, converting the hydraulic energy into mechanical power.

The winch is typically mounted on the deck of the fishing vessel and features a drum around which the fishing line or net is wound. The hydraulic motor drives the drum, allowing for controlled and efficient retrieval or deployment of the fishing gear. The winch can be operated remotely from the boat's control station, providing convenience and safety to the crew.

The hydraulic winch offers several advantages for fishing boats, including high lifting capacity, precise control, and durability. It can handle heavy loads with ease, ensuring the safe and efficient handling of fishing gear. Additionally, its hydraulic system provides smooth and gradual speed control, preventing sudden jerks that could damage the equipment or endanger crew members.

Overall, the hydraulic winch plays a crucial role in enhancing the productivity and safety of fishing operations, making it an indispensable tool for fishing boats.
