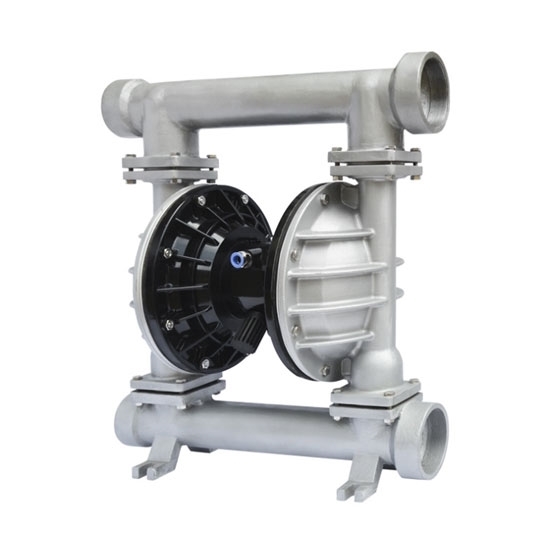

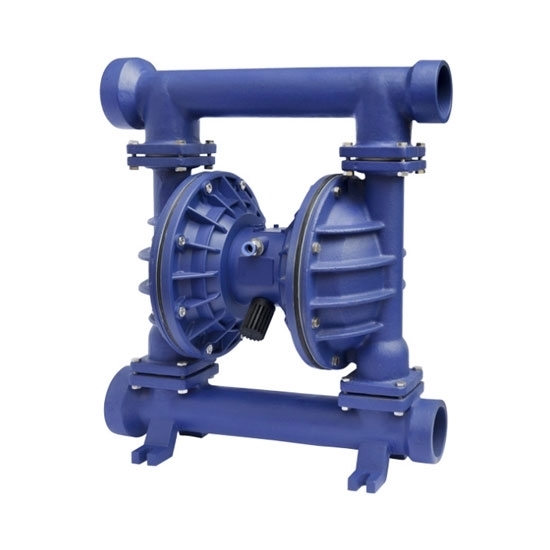

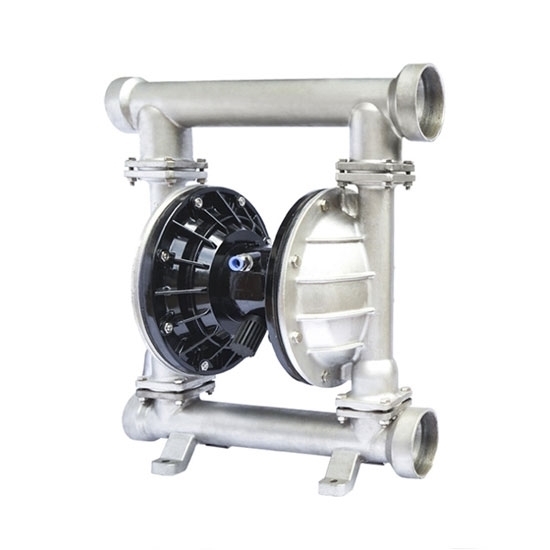

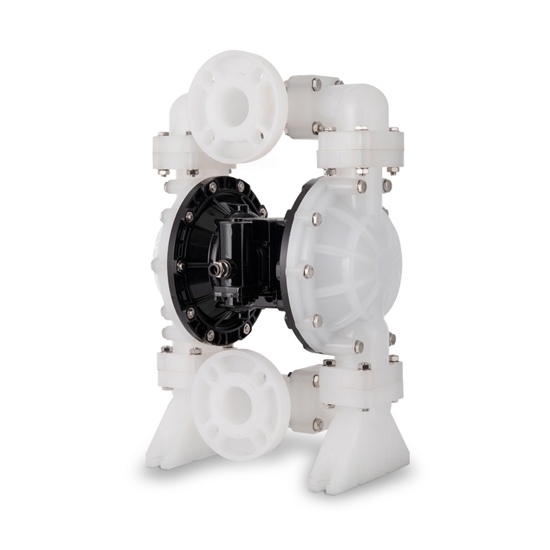

4" Air Operated Double Diaphragm Pump, 150 GPM
from
$1,744.99
Ex Tax: $1,744.99
- Stock: In Stock
- Model: RDDLZ-AODD-100
- Weight: 1.00
- SKU: RDDLZ-AODD-100
Heavy duty AODD pump is easy to install and operate, which can be used for pumping toxic, flammable, high viscosity fluids, volatile liquid, acids, alkalis, corrosive liquids and paint binders.
Features
- Pneumatic dual diaphragm pump can transport high temperature media up to 130 ℃.
- Adopt pilot operated type air valve to eliminate the AODD pump downtime and extend its life span.
- It is designed with multiport to help you install it easily.
- Air powered diaphragm pump can be used as a movable-type material transfer pump because it has such advantages as small in size, easy moving, no need base, small occupied area and easy installation.
- It can be externally connected to an electromagnetic valve for remote control. And the reversing valve requires no lubrication.
Specification
| Model | RDDLZ-QBYK3-100 |
| Max. Flow | 150 GPM (568 LPM) |
| Max. Working Pressure | 120 PSI (0.84 Mpa) |
| Fluid Inlet Size | Cast Steel/Aluminum Alloy/Stainless Steel: 4 inch (DN100) NPT, Non-Metallic (Plastic): DN100 Flange |
| Fluid Outlet Size | Cast Steel/Aluminum Alloy/Stainless Steel: 4 inch (DN100) NPT, Non-Metallic (Plastic): DN100 Flange |
| Air Inlet Size | 1/2 inch NPT |
| Max. Suction Lift（Dry Suction/Wet Suction） | 18 ft. (5.48m) |
| Max. Permitted Grain | 1/4 in. (6.4mm) |
| Max. Air Consumption | 45 SCFM |
| Every Stroke Flow | 1.03 gal. (3.90L) |
| Max. Reciprocating Speed | 145 cpm |
| Body Structure Material Option | Cast Iron/Aluminum Alloy/Stainless Steel/Non-Metallic (Plastic) |
| Diaphragm Material | Butyronitrile (Default)/ Teflon (Customizable) |
| Weight | 83kg/ 42kg/ 60kg/ 40kg |

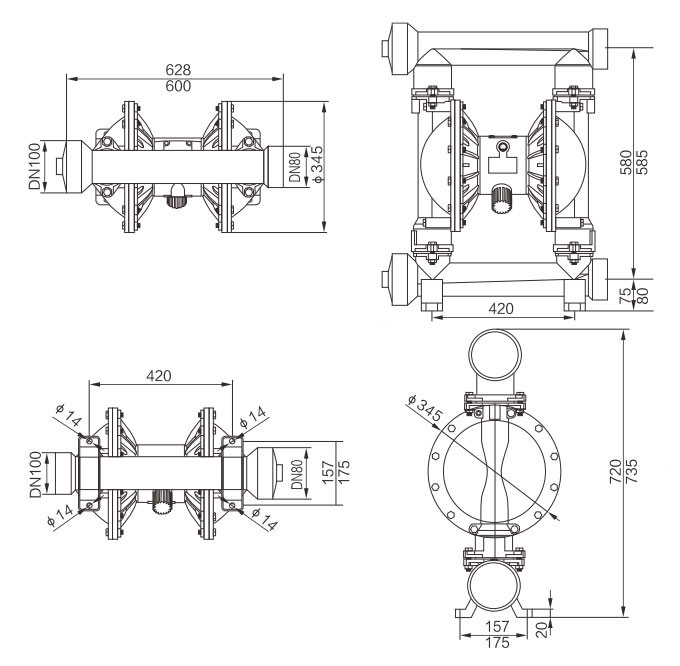

Dimensions (Unit: mm)

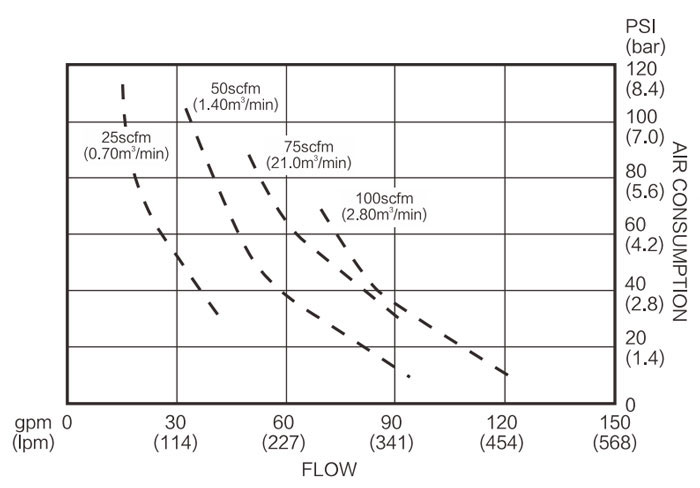

Air Consumption Diagram

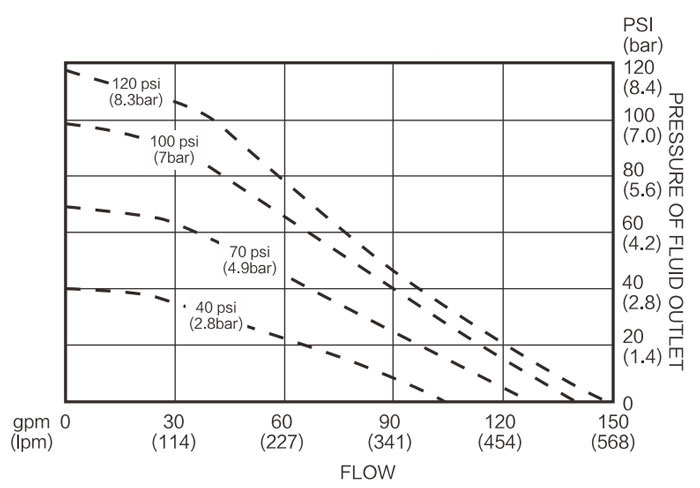

Fluid Flow Diagram

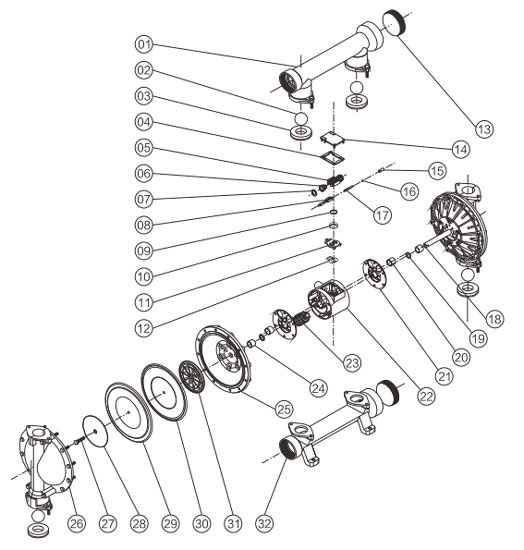

Details
| 1 | Discharge outlet (top cover) | 11 | Sliding plate | 22 | Air valve chamber |
| 2 | Sealing ball | 12 | Sliding plate gasket | 23 | Muffler |
| 3 | Sealing seat | 13 | Plug | 24 | Pitman shaft sleeve |
| 4 | Air valve cover gasket | 14 | Air valve chamber cover | 25 | Baffle |
| 5 | Large slider aluminum piece | 15 | Auxiliary shaft cover | 26 | Column |
| 6 | Piston | 16 | Auxiliary shaft O-ring | 27 | Clamp screw |
| 7 | V-Ring | 17 | Auxiliary shaft | 28 | Outer clamp |
| 8 | Small slider | 18 | Pitman shaft | 29 | PTFE diaphragm |
| 9 | Large slider O-ring | 19 | V-Ring | 30 | Poly rubber diaphragm |
| 10 | Large slider plastic ring | 20 | Piston sleeve | 31 | Inner clamp |
| 21 | Air valve chamber gasket | 32 | Feed inlet (bottom cover) |
Applications
Tips: Air Operated Double Diaphragm Pump Applications
Air operated double diaphragm pump can adopt Fluor rubber, PTFE, butadiene rubber, neoprene, polytetrafluoroethylene as diaphragm material according to different fluid media. The pneumatic dual diaphragm pump placed various special places used for pumping all kinds of media that conventional pumps can’t obtain satisfactory results. AODD Pumps apply to the following areas:
- Sewage treatment: lime slurry, soft sediment, sewage, chemicals, waste water.
- Petrochemical industry: crude oil, heavy oil, grease, mud, sludge.
- Food industry: Liquid semi-solid, chocolate, salt water, vinegar, syrup, rapeseed oil, soybean oil, honey, animal blood, yeast, syrup, concentrate, gas-liquid mixture, wine, juice, corn syrup.
- Construction industry: cement paste, ceramic tile binder, rock paste, ceiling finish.
- Pharmaceutical industry: solvent, acid, alkali, plant extract liquid, ointment, plasma and other kinds of pharmaceutical materials liquid.
- Metallurgy, casting and dyeing industries: hydroxide and carbonized pulp, metal pulp, dust washing pulp.
- Furniture industry: dyeing agent, white wood glue, binder, varnish, dispersion system, solvent, epoxy resin, starch binder.
- Coating industry: resin, solvent, colorant, paint.
