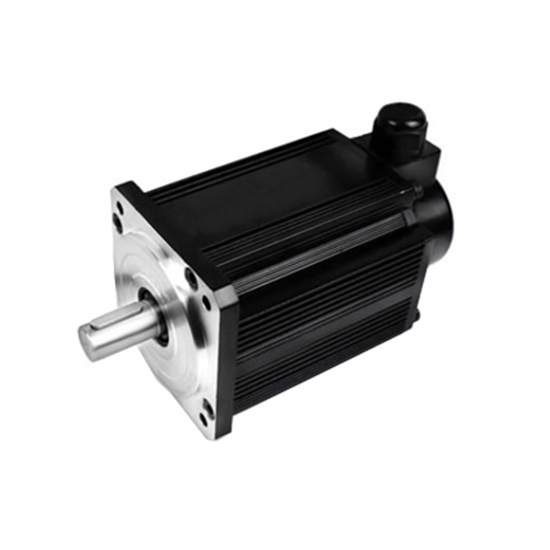

Good price 3000 watt (4hp) BLDC motor operating at 48 volt, 72 volt, 96 volt, 3000 rpm, 10 Nm rated torque, IP65 protection grade, brushless design for very long service life. Adding brake option, matching 3 phase brushless DC motor controller and planetary gearbox/ worm gearbox are available here. RDDLZ recommends buying a set of BLDC motors, which is an economical solution in the long run.

Basic Specifications

• Model: RDDLZ-130WDM10030 (Click to see the motor drawings)
• Matched Controller Model: RDDLZ-KBL / RDDLZ-KEB (Click to the controller page)
• Rated Power: 3000W
• Rated Voltage: 48V DC / 72V DC / 96V DC (Optional)
• Rated Current: 77A at 48V, 51.3A at 72V, 38.5A at 96V
• Phase: 3 phase
• Holding Torque: 10 Nm
• Peak Torque: 20 Nm (hold for 2-3 seconds)
• Rated Speed: 3000 rpm
• No-load Speed: 3600 rpm
• Square Flange Size: 130 mm
• Weight: 12 kg

Technical Parameters

• Working Efficiency: 85%
• Number of Poles: 4 pairs of poles (8 poles)
• Brake Apparatus Voltage: 24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
• Brake Length: 40-50mm
• Insulation Grade: F
• Protection Grade: IP65
• Working Temperature: 10℃~+40℃
• Humidity: ≤90% (no condensation)
• Motor Lead Length: 30 cm, if you buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
• Certificate: CE, RoHS, ISO/TS16949

Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of RDDLZ BLDC Motors can be customized.

Features

1. High performance and low consumption
   4 hp brushless DC motor is three phase electric motor, which especially suited for application requiring higher efficiency and power density.
2. Wide application range and good control effect

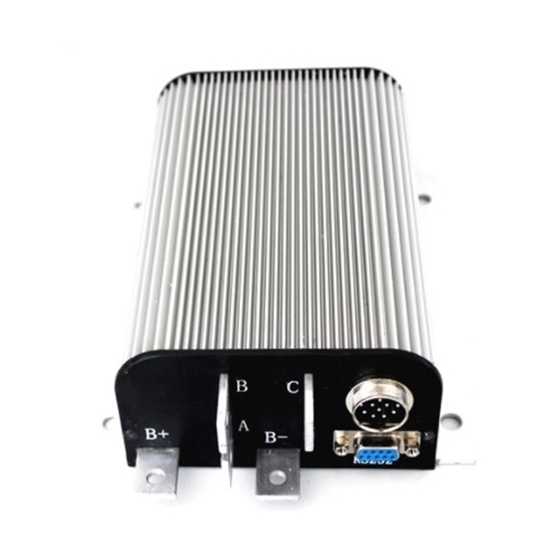

   BLDC motor works with a matching controller (RDDLZ-KBL) may achieve simple to complex control, turn from CW to CCW, and meet various communication requirements (RS232, RS485, CAN, etc.). BLDC controller can be controlled through 0-5VDC analog signal to adjust the speed.
3. Wide control speed torque range

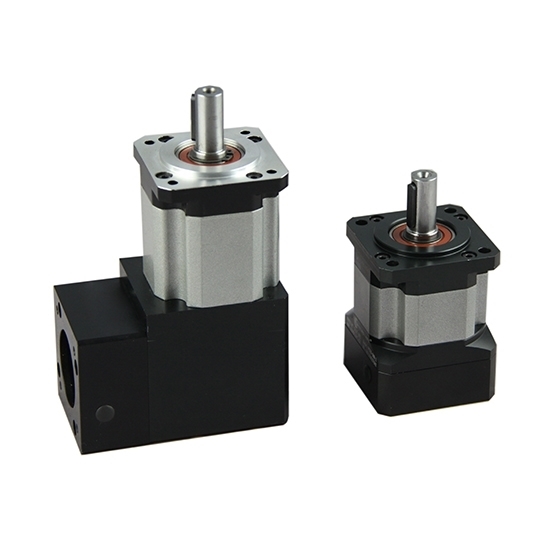

   Brushless DC motor works with a gearbox (choose inline gearbox or right angle gearbox with gear ratio from 3:1 to 200:1) effectively reduce the motor's speed and moment of inertia to increase torque in your application, because the gearbox can control the start/stop and change speed in time.
4. Low noise and smooth operation
   Brushless DC motor has no brushes, no sparks will be generated during operation, which greatly reduces friction.
5. Good protection performance and continuous duty (24/7)
   3kW BLDC motor kit adopts a new type of sealing device, which has good protection performance and strong adaptability to the environment, and works continuously in harsh environments such as corrosion and humidity.

Line Define

Power Wire

Feedback Wire

Dimension (Unit: mm)

Speed - Torque Curve

Details

Tips: How Does Brushless DC Motor Drain Oil?

Brushless DC motors bring convenience to people's work. Brushless DC motors are used to transport oil and have different delivery requirements on different occasions. How does brushless DC motor drain oil?

1. If you want to drain all the oil form the Brushless DC motors, you can unscrew the oil plug in the lower part of the box to drain the oil.
2. In the case of draining oil, the liquid level from the fuel tank roof height shall not be more than 30 mm, to ensure that the bearing lubrication and cooling machine. When the jack cavity volume is too large, the need for separate set attached to the tank to ensure that the minimum height of the liquid after the oil discharge is not less than 100 mm to avoid suction air.
3. The oil shall be changed and the fuel tank and the filter shall be cleaned after the speed-adjustable hydraulic brushless DC motor run for 500h for the first time. Oil quality shall be tested by visual inspection and tests, and the oil should be changed in time when the oil quality deteriorated. Oil change must be accompanied by tank cleaning and oil filter. If there is metal shaving or water in the oil, look for the cause and troubleshoot.
4. The bearing relies on the oil of the plunger spring in a short time when the liquid level reduces, oil tank filter and the machine oil filter are made of 230 mesh/ inch copper wire mesh, the oil filter should be regularly cleaned in order to prevent clogging, tank fluid temperature should not exceed 60℃ while using, and take appropriate measures to cool it down if necessary.
