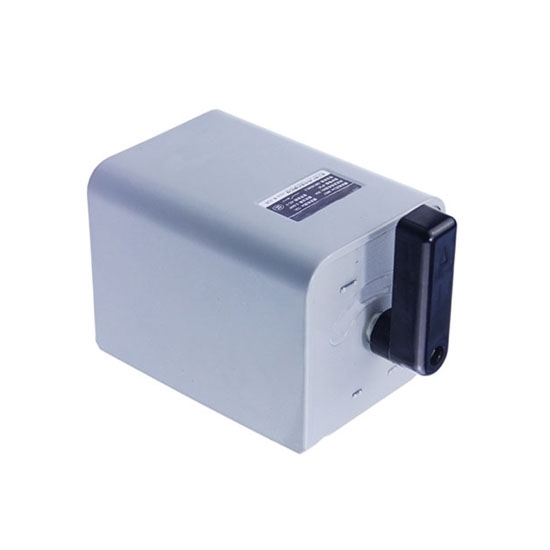

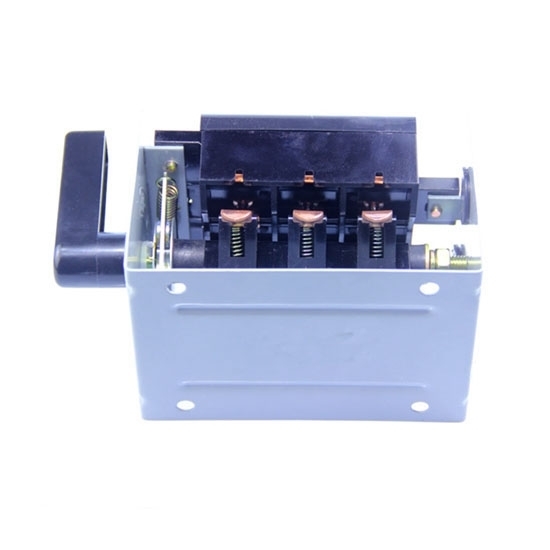

3 Phase Forward Reverse Switch, 15A/ 30A Heating Current

0 reviews • Write a review

from

$39.72

Ex Tax: $39.72

Stock: In Stock
Model: RDDLZ-FRS-KO3
Weight: 1.00
SKU: RDDLZ-FRS-KO3

Available Options

Short Description

Rated Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price forward reverse switch with metal external material, grey color and CCC certificate. 3 phase reverse forward switch is mainly used in the fields where the equipment needs to rotate in both directions, such as electric vehicles, cranes, elevators, elevators, etc.

Specification

Model	RDDLZ-KO3-15	RDDLZ-KO3-30
Working current	7A	12A
Heating current	15A	30A
Working voltage	220V 1.7kW/ 380V 3kW	220V 3.4kW/ 380V 5.5kW
Rated voltage	220V/ 380VAC
Phase	3 phase
Application	Forward, stop, reverse
External material	Metal
Color	Grey
Weight	1kg
Certificate	CCC
Warranty	12 months

Dimension (mm)

Model	Dimension (mm)
Model	A	B	C	D	E	4-φ
KO3-15	132±4	74±2	95±4	60±1	52±1	6.5±0.5
KO3-30	175±4	99±2	115±4	95±1	75±1	7±0.5

Wiring diagram

Tips: What is a Forward and Reverse Switch?

The reverse switch is also called forward and reverse switch. Its function is to connect and disconnect the power supply or load, which can make the motor forward or reverse. It is mainly used as an electrical component for single-phase and three-phase motors, but it cannot be used as an automation component. It is mainly used in fields where the equipment needs to rotate in both forward and reverse directions, such as electric vehicles, cranes, elevators, elevators, etc. The reverse switch has three positions. The middle one is the separate position. Toggling one side of the motor reverses the reverse direction of the other side. In short, it controls the forward and reverse rotation of the motor.
