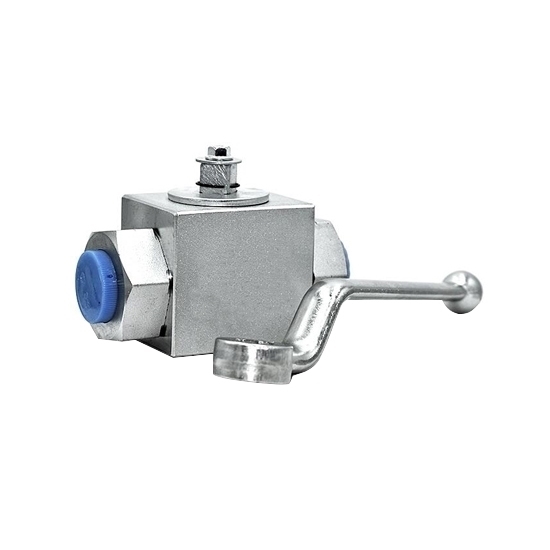

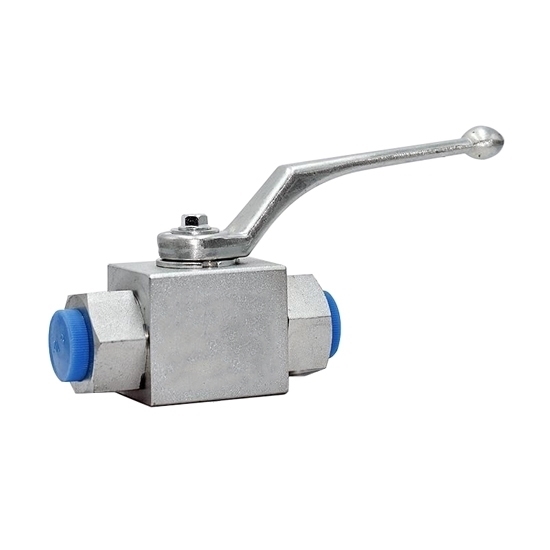

3/8" Hydraulic High Pressure Ball Valve, 2 Way

0 reviews • Write a review

from

$52.29

Ex Tax: $52.29

Stock: In Stock
Model: RDDLZ-HPBV-DN10
Weight: 1.00
SKU: RDDLZ-HPBV-DN10

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

G3/8 inch hydraulic high pressure ball valve is a type of valve used in hydraulic systems to control the flow of fluids under high pressure. It consists of a spherical closure element (the ball) with a hole through it that can be rotated to either allow or block the flow of fluid. The 2 way ball valve is operated by a lever, handle, or actuator that turns the ball to open or close the valve.

Specification

Model: RDDLZ-KHB-G3/8
Type: 2 Way High Pressure Ball Valve
Drive Mode: Hydraulic
Port Size: G3/8 inch (DN10)
Nominal Pressure: 500bar
Applicable Temperature: -29℃~120℃
Applicable Media: Water, Oil
Body Material: Carbon Steel

Dimension (Unit: mm)

DN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
10	10	G3/8"	14	72	42	32	52.5	17	40	8	9	27

Application

Tips: What is the difference between a high pressure and low pressure ball valve?

High pressure and low-pressure ball valves differ primarily in their design and construction to handle varying levels of fluid pressure.

High pressure ball valves are built to withstand and control fluids at elevated pressure levels, typically above 1000 psi. They feature robust materials, such as stainless steel or alloy, and often include reinforced components like stronger seals and seats to prevent leakage. High-pressure ball valves are engineered for durability and reliable performance in demanding applications like industrial processes, hydraulic systems, and oil and gas operations.

Low pressure ball valves, on the other hand, are designed for systems with lower pressure requirements, usually under 150 psi. They may use materials like PVC or brass and have simpler, more cost-effective designs. While they are less expensive and easier to operate, low pressure ball valves may not be suitable for high-stress environments.
