3/8 Inch Proportional Electric Air Pressure Regulator, 50~9000 Mbar

0 reviews • Write a review

from

$369.54

Ex Tax: $369.54

Stock: In Stock
Model: RDDLZ-PPPR-9038
Weight: 1.00
SKU: RDDLZ-PPPR-9038

Available Options

Short Description

Power Supply

Output Signal

Input Signal

Port Size

Pressure Units

Cable Connector

Bracket

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

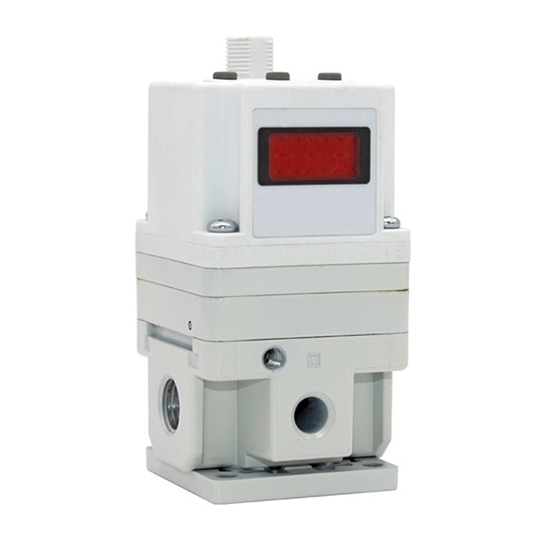

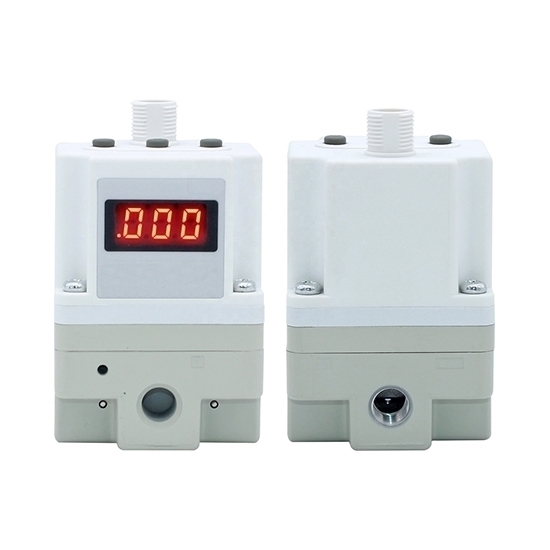

Proportional air pressure regulator has electronic digital display. Working pressure range 50~9000 mbar (max 130.5 psi), rated voltage DC 24V, current/voltage signal input, analog/switch output, hose port 3/8”. The proportional pneumatic regulator is an air pressure valve, which can save the cost of multiple pressure reducer valves or hydraulic valves in pneumatic control system.

Specification

Model		RDDLZ-NITV205
Minimum supply pressure		Set pressure + 1000 mbar (+0.1 MPa)
Maximum supply pressure		10000 mbar (1 MPa)
Set pressure range		50~9000 mbar (0.005 to 0.9 MPa )
Max. Flow		1500L/min
Power supply	Voltage	DC 24V ± 10%, DC 12~15V
	Current consumption	Power supply voltage DC 24V type: 0.12 A or less Power supply voltage DC 12~15V type: 0.18 A or less
Input signal	Current type ^{*Note 1}	DC 4~20mA, DC 0~20mA (Sink type)
	Voltage type	DC 0~5V, DC 0~10V
	Preset input	4 points (Negative common), 16 points (No common polarity)
Input impedance	Current type	250 Ω or less ^{*Note 4}
	Voltage type	Approx. 6.5 kΩ
	Digital input	Power supply voltage DC 24V type: Approx. 4.7 kΩ. Power supply voltage DC 12V type: Approx. 2.0 kΩ
Output signal (monitor output) ^{*Note 2}	Analog output	DC 1~5V (Output impedance: Approx. 1 kΩ) DC 4~20mA (Sink type) (Output impedance: 250 Ω or less) Output accuracy ± 6% F.S. or less
	Switch output	NPN open collector output: Max. 30V, 80mA PNP open collector output: Max. 80mA
Linearity		± 1% F.S. or less
Hysteresis		0.5% F.S. or less
Repeatability		± 0.5% F.S. or less
Sensitivity		0.2% F.S. or less
Temperature characteristics		± 0.12% F.S./ ℃ or less
Output pressure display ^{*Note 3}	Accuracy	± 2% F.S. ± 1 digit or less
	Minimum unit	Mpa: 0.001, kgf/cm²: 0.01, bar: 0.01, psi: 0.1, kPa: 1
Ambient and ﬂuid temperature		0 to 50℃ (No condensation)
Enclosure		ip65
Port size		3/8 inch, 1/4 inch
Weight		350 g (without options)

*Note

2-wire type 4 to 20 mA DC is not available. Power supply voltage (DC 24V or DC 12~15V) is required.
Select either analog output or switch output. Further, when switch output is selected, select either NPN output or PNP output. When measuring NITV analog output from 1 to 5 VDC, if the load impedance is less than 100 kΩ, the analog output monitor accuracy of within ±6% (full span) may not be available. The product with the accuracy of within ±6% is supplied upon your request. Output pressure remains unaffected.
Adjustment of numerical values such as the zero/span adjustment or preset input type is set based on the minimum units for output pressure display (e.g. 10~5000 mbar). Note that the unit cannot be changed.
Value for the state with no over current circuit included. If an allowance is provided for an over current circuit, the input impedance varies depending on the input current. This is 350Ω or less for an input current of 20mA DC.

Features

Proportional electric air pressure regulator adopts electrical proportional method to achieve stepless control of outlet pressure. It can realize remote control and program control.
Compared with hydraulic proportional valves, proportional pressure regulators are small in size, light in weight, compact in structure, light in weight and low in cost.
The control of proportional pressure regulator is continuous control, and its characteristic is that the output quantity changes with the change of input quantity (current value or voltage value), and there is a certain proportional relationship between the output and input.
Proportional air pressure regulator has many types, which can be used with various electrical equipment and computers to control various electro-hydraulic systems. High control precision, flexible installation and strong anti-pollution ability.

Details

50~9000 mbar Air Pressure Regulator Dimensions (Unit: mm)

Proportional Air Pressure Regulator with Flat Bracket*

Proportional Air Pressure Regulator with L-Shape Bracket*

*Note: The bracket is the option.

Tips: Structural principle of air pressure regulator.

The input signal of proportional pressure regulator increases, the solenoid pilot valve for air supply reverses, and the solenoid pilot valve for exhaust is in the reset state, the air supply pressure enters the pilot chamber from the SUP port through the pilot valve. The pressure in pilot chamber rises, and the air pressure acts on the top of the diaphragm. At this time, the air supply valve core connected to the diaphragm is opened, and the exhaust valve core is closed, generating output pressure. This output pressure is fed back to the control loop through pressure sensor. The output pressure is quickly compared and corrected with the target value until the output pressure is proportional to the input signal, so that the output pressure changes proportional to the change of the input signal.
