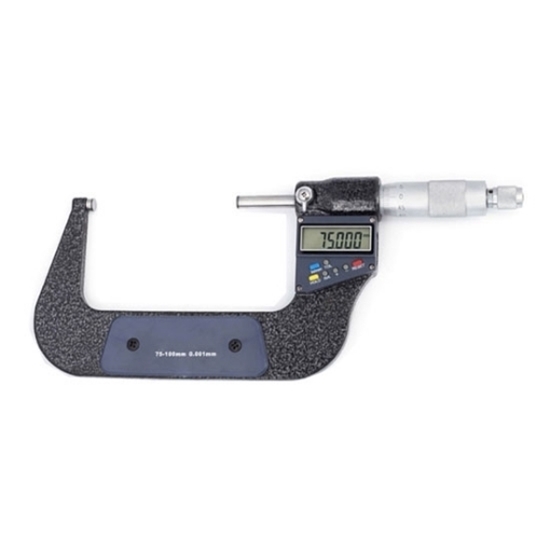

3-4" Range Digital Micrometer, 0.0001 Inch Accuracy

0 reviews • Write a review

from

$198.46

Ex Tax: $198.46

Stock: In Stock
Model: RDDLZ-DM-N7100
Weight: 1.00
SKU: RDDLZ-DM-N7100

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a professional digital outer diameter micrometer online, the measuring range is 3~4", the digital micrometer gauge measures in millimeters and inches, and the large screen clearly provides digital readings. This digital outer diameter micrometer can also be used for accurate measurement in harsh environments measurement.

Specification

Model	RDDLZ-DGN7-75100
Digital Display Scale	Digital display + scale
Range	50~75mm (3~4 inch)
Resolution	0.001 mm (0.00005 inch)
Accuracy	±0.003mm (0.0001 inch)
Metric to English Conversion	Yes
Home Position Measurement	Yes
Data Hold	Yes
Power Supply	LR44 button cell
Out of Tolerance Alert	Yes
Scale Body Quality	High quality steel
Product Process	Surface spraying
Scale Process	Laser scale
Packaging	Drop-proof blow mold box

Set zero

Wipe the probe measuring.
Probe closure.
Lock the screw with the stopper.
Use a wrench to pull the fixing sleeve until the zero line is aligned.

Tips: How to calibrate a digital micrometer?

When checking whether the zero position of the digital micrometer is calibrated, the screw and the measuring anvil should be in contact, occasionally it may happen that the two do not separate when the force-measuring device is rotated backward. In this case, the left palm of the left hand can be used to press against the left side of the anvil on the ruler frame, the right palm of the right hand can be pressed against the force measuring device, and then the knob can be turned in the counterclockwise direction with the fingers to separate the screw and the anvil.
