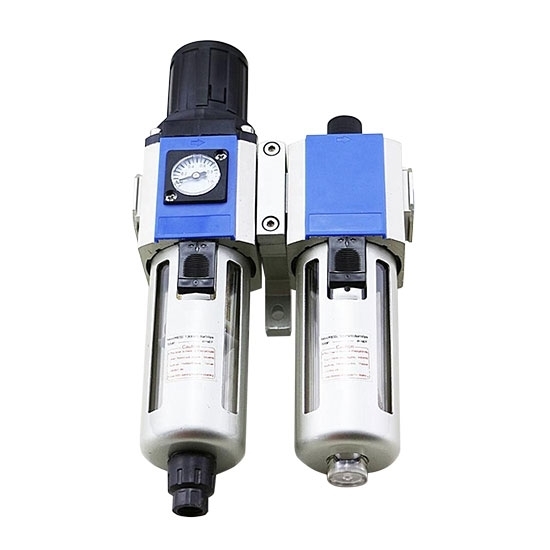

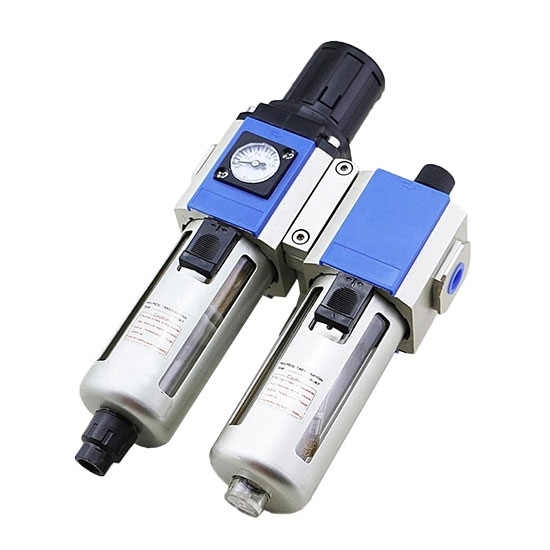

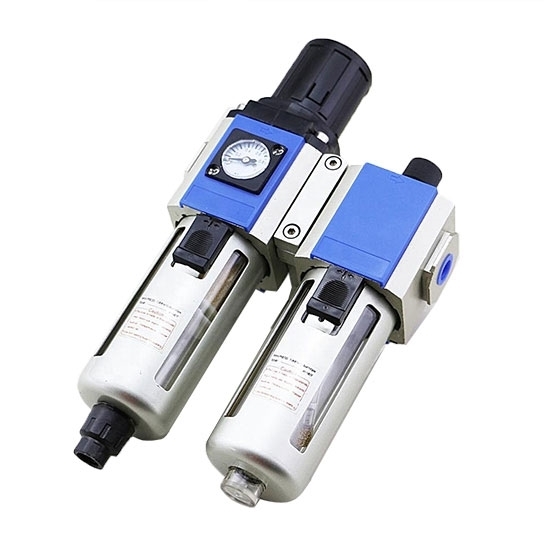

3/4" FRL Filter Regulator Lubricator

0 reviews • Write a review

from

$156.99

Ex Tax: $156.99

Stock: In Stock
Model: RDDLZ-ACWS-34
Weight: 1.00
SKU: RDDLZ-ACWS-34

Available Options

Thread Type

Drain Type

Pressure Gauge

Filtering Grade

Reflux Valve

Pressure Type

Bowl Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Air FRL unit is a combination of filter, regulator and lubricator used for air compressor. It can filter the water, oil and other impurities in the compressed air, and keep the air source in a constant state to reduce the damage to valves or actuators of the device.

Features

Quick and reliable mounting clamps makes it convenient to install and use.
The performance of pressure adjustment is reliable with high precision.
The efficiency of eliminating moisture and solid grain is high.

Specification

Model	RDDLZ-GAFC500-20
Fluid	Air
Pressure Type (Optional)	Standard (0.9 MPa), Lower Pressure (0.4 MPa)
Drain Type (Optional)	Semi-auto Drain, Manual Drain, Automatic Drain
Port Size	3/4"
Thread Type (Optional)	PT Thread (Scale: MPa, PSI) G Thread (Scale: MPa, Bar) NPT Thread (Scale: PSI, Bar)
Filtering grade (Optional)	40μm or 5μm
Bowl Material (Optional)	PC, Metal, Nylon
Pressure range	0.15-0.9 MPa (20-130 PSI)
Max.pressure	1.0 MPa (145 PSI)
Proof pressure	1.5 MPa (215 PSI)
Temperature range	-5~70 ℃ (Unfreeze)
Capacity of drain bowl	108 CC
Capacity of oil bowl	225 CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	1.8 kg

Details

Dimensions (Unit: mm)

Model	A	B	BA	BB	C	K	KA	KB	P	PA	Q
RDDLZ-GAFC500-20	168	100	50	89	299.5	8.6	80	12	3/4"	191.5	G1/4

Pressure and Flow Diagram

Tips: Advantages of filter regulator lubricator (FRL unit)

Equipped with a metal protective cover to ensure safety.
The lubricating oil can be supplied without stopping the gas to avoid the trouble of stopping the gas during work.
combination unit and single one can be used, easy to disassemble and assemble.
