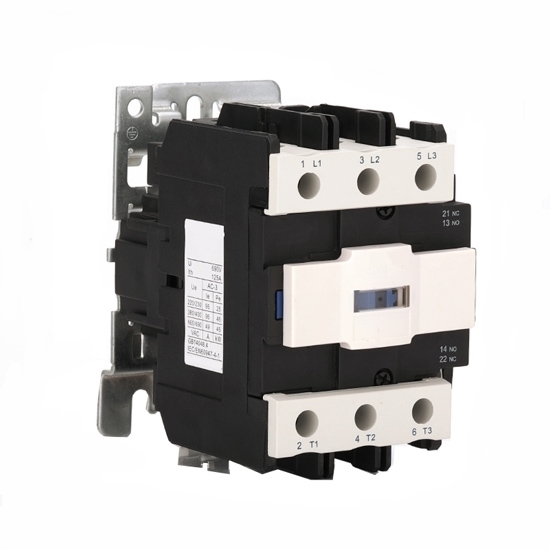

25 Amps 3 Pole AC Contactor 24V/110V/220V Coil

0 reviews • Write a review

from

$62.67

Ex Tax: $62.67

Stock: In Stock
Model: RDDLZ-ACCON-025
Weight: 1.00
SKU: RDDLZ-ACCON-025

Available Options

Short Description

Contact Form

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 pole electrical contactor relay, coil voltage 24V/110V/220V is available, rated currrent 25A, AC bypass contactors are widely used in electric drive systems.

Sepecifications:

Model		RDDLZ-CJX2-25
Rated Operational Current (AC-3)	380V	25A
	660V	18A
Conventional Heating Current		40A
Rated Insulation Voltage		690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V	5.5kW
	380V	11kW
	660V	15kW
Operational Frequency (AC-3)	Electric Life	1200 times/h
	Mechanical Life	3600 times/h
Service Life	Electric Life (10⁴ times)	100
	Mechanical Life (10⁴ times)	1000
Matching Fusing Model		RT16-32
Average Power Consumption (20℃) @ 50Hz	Pick-up	110VA
	Holding	11VA
Contact Form (Optional)		3P+NO or 3P+NC
Rail Size		35mm
Ambient Temperature		-5℃~+40℃
Altittude		≤2000m
Class of Pollution		Class 3
Installation Category		Ⅲ
Weight		0.52kg

Dimenions (unit: mm)

Details

Tips: Noice of AC Contactor, How to Solve?
Possible causes of failure:

Insufficient power supply voltage, insufficient electromagnet suction.
The magnetic system is improperly assembled or shaken by vibration or the parts are stuck, the core cannot be absorbed.
The surface of the pole is rusty or foreign matter (such as grease, dust, hair, etc.) invades the core surface.
Contact spring pressure is too large.
Short circuit ring break.
Iron core pole wear is excessive and uneven.
Coil turn-to-turn.

Maintenance method

Increase the voltage of the operating circuit.
This system should be adjusted during processing to identify and eliminate the inflexibility of the machine.
Clean the core face.
Replace the core or short circuit ring.
Replace the coil.
