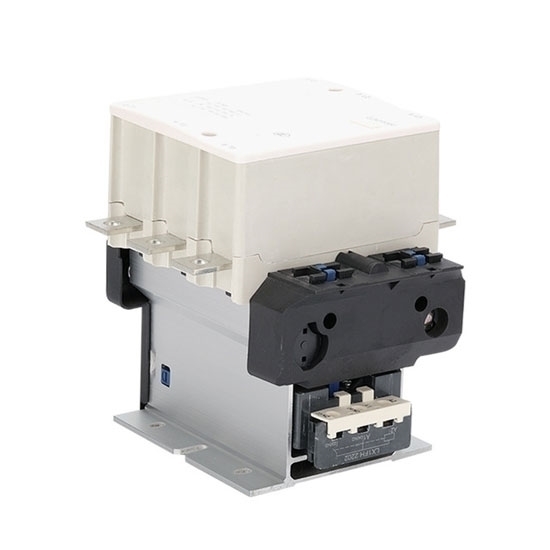

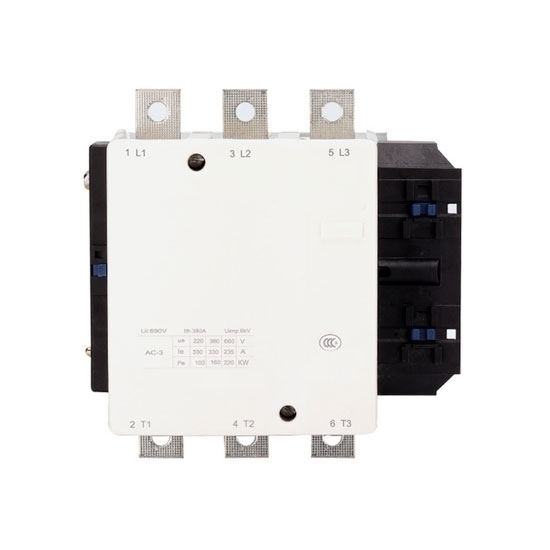

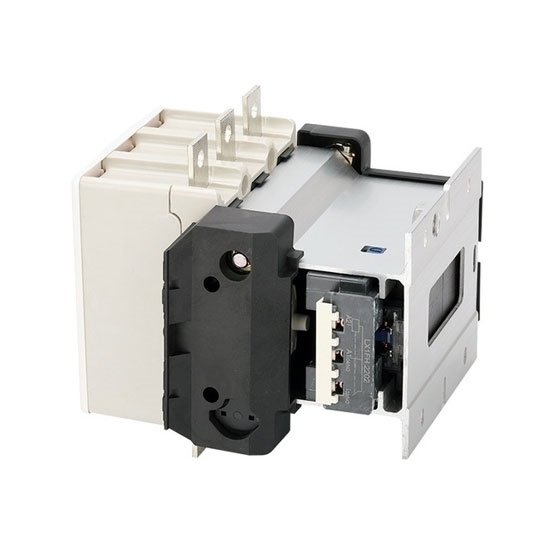

225 Amp 3 Phase AC Magnetic Contactor, 24V/110V/220V Coil

0 reviews • Write a review

from

$326.63

Ex Tax: $326.63

Stock: In Stock
Model: RDDLZ-ACCON-225A
Weight: 1.00
SKU: RDDLZ-ACCON-225A

Available Options

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 pole AC magnetic contactor with 24V/110V/220V coils is used in 3 phase units. It is a form of electrical relay found on electric motors.

Specification

Model		RDDLZ-CJX2-F225
Rated Current	le max AC-3 (Ue≤440V)	225A
Rated Current	le max AC-1 (θ≤40°C)	315A
Coil Rated Voltage (Optional)		110V AC, 220V AC, 380V AC
Contact Form		3NO
Auxiliary Contact (Optional)		2NO, 2NC, 1NO+1NC, 2NO+2NC, 1NC+3NO, 4NO, 4NC
Frequency		50Hz/ 60Hz
Rated Insulated Voltage (Ui)		1000V
Rated Impulse Withstand Voltage (Uimp)		8kV
Rated Operational Voltage		440V
Conventional Thermal Current (θ≤40°C)		315A
Operation Frequency	AC-1, AC-2, AC-3	1200 times/h
Operation Frequency	AC-4	300A
Rated Power (AC-3)	220/240V	63kW
	380/400V	110kW
	415V	110kW
	440V	110kW
	500V	129kW
	660/690V	129kW
	1000V	100kW
Connection/ Wiring	Number of Lines	2
	Line Size	32x3mm²
	Cable with Splicing	185mm²
	Cable with Connector	185mm²
	Screw Diameter	φ10
Tightening Torque		35N.m
Standards-Compliant		IEC60947-4-1, GB14048.4, EN60947-4-1
Dimensions		174 x 168.5 x 181mm
Weight		11kg

Details

Tips: Different types of AC contactors

AC magnetic contactor: The AC magnetic contactor is mainly composed of a contact system, an electromagnetic operating system, a bracket, an auxiliary contact and a shell. Because the coil of an AC electromagnetic contactor is generally powered by an AC power supply, after the contactor is energized, there will usually be a high-decibel noise, which is also a characteristic of electromagnetic contactors.
AC vacuum contactor: The vacuum contactor is a contactor whose contact system adopts a vacuum degaussing chamber.
Semiconductor contactor: The semiconductor contactor is a contactor that completes current operation by changing the conduction state and the open circuit state of the circuit loop.
Permanent magnetic contactor: Permanent magnetic AC contactor is a kind of micro-power contactor formed by using the principle of magnetic poles to repel and attract each other, and replace the traditional electromagnet drive mechanism with a permanent magnet drive mechanism.
