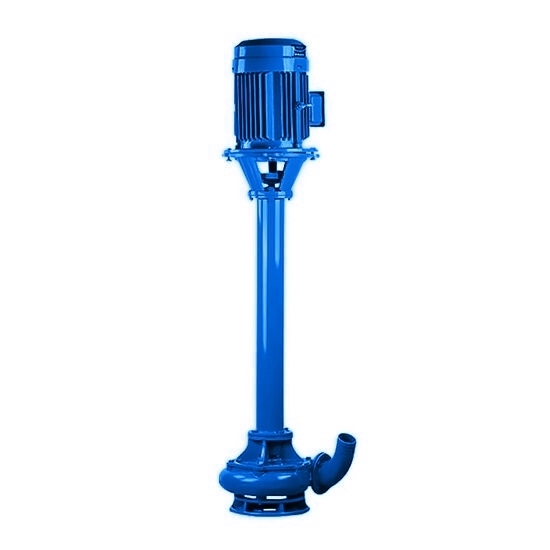

20 HP Vertical Mud Pump, 4 Inch, 380V

20 HP Vertical Mud Pump, 4 Inch, 380V
Free Shipping
20 HP Vertical Mud Pump, 4 Inch, 380V
0 reviews • Write a review
from
$6,220.63
Ex Tax: $6,220.63
  • Stock: In Stock
  • Model: RDDLZ-VMP-20HP
  • Weight: 1.00
  • SKU: RDDLZ-VMP-20HP

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

20 hp (15 kW) vertical mud pump with thickened pump body and holder. The thickened holder makes the heavy bearing strong. Sewage treatment plant and bog can be used this mud pump.

Feature:

  • Solid shaft. Mud pump with high quality solid spindle of carbon steel.
  • Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
  • Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

  • Model: RDDLZ-NL100-16
  • Power: 20 HP (15 kW)
  • Voltage: 380V
  • Flow: 100 m3/h
  • Caliber: 4 inch (100 mm)
  • Motor: copper motor
  • Rotate Speed: 1430 r/min
  • Pump Lift: 10-16m
  • Height of Pump: 1.2m
  • Net Weight: 220 kg

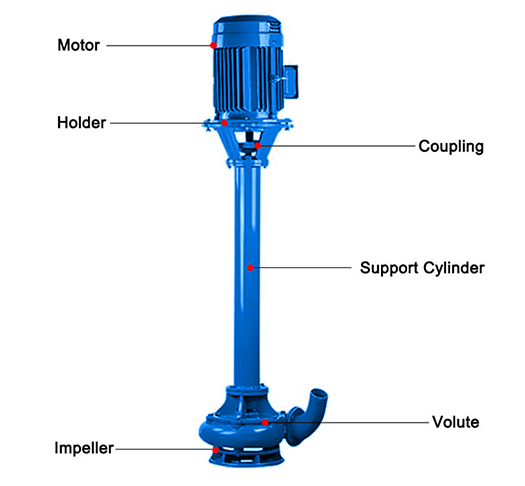

Mud Pump Structure:

Vertical mud pump structure

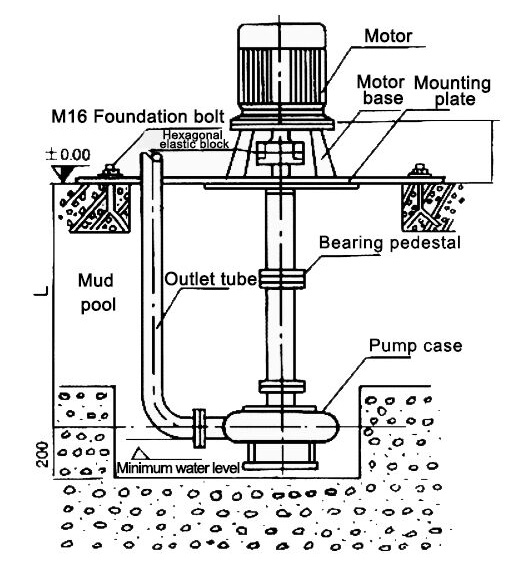

Method of Operation:

Vertical mud pump method of operation

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: What is Mud Pump?

A mud pump is a reciprocating pump used to circulate fluid (mud) through a well during drilling. The reason for circulating fluid through the well is to carry the cuttings from the drilling process back up to the surface. The mud pump is used in oil and gas drilling operations as well as water drilling.
