1500W AC Servo Motor, 5 Nm/15 Nm, 3000 Rpm

0 reviews • Write a review

from

$600.23

Ex Tax: $600.23

Stock: In Stock
Model: ATO110ST-M05030
Weight: 1.00
SKU: ATO110ST-M05030

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

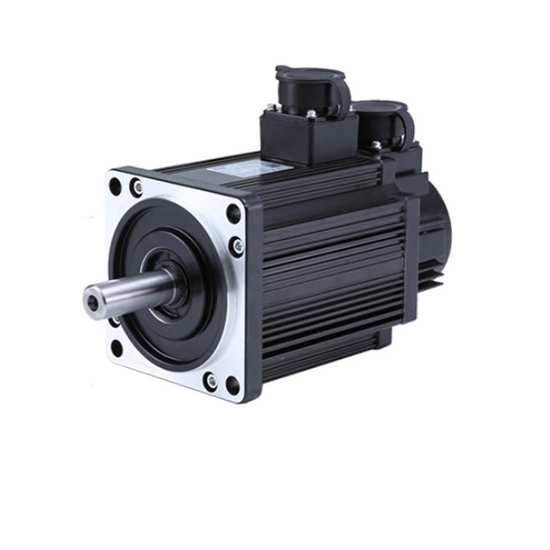

Reasonable price 1500W brushless AC servo motor for sale, 5 Nm rated holding torque, rated speed of 3000 rpm, maximum output torque up to 15 Nm. CNC electric servo motor comes with 110 mm square flange size, with brakes and encoder options available.

Note: For 1500W 5 Nm 3000 rpm AC Servo Motor, RDDLZ Provides upgraded models with more powerful features. Please go to the page https://www.ato.com/1500w-ac-servo-motor.

Specification

Basics	Model	RDDLZ110ST-M05030
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	110 mm
	Rated Power	1500 W
	Rated Voltage	three phase 220V AC
	Rated Current	6 A
	Rated Speed	3000 rpm
	Rated Torque	5 Nm
	Peak Torque	15 Nm
	Weight	7 Kg
	Length	204 mm
Technical Parameters	Voltage Constant	62 V/ 1000r/ min
	Torque Coefficient	0.83 N.m/ A
	Torque Inertia	0.63 x 10^-3 Kg.M²
	Line-Line Resistance	1.03 Ω
	Line-Line Inductance	3.43 mH
	Electrical Time-Constant	3 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 204mm, L (with brake): 260mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Winding Lead	U	V	W	PE
Motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
