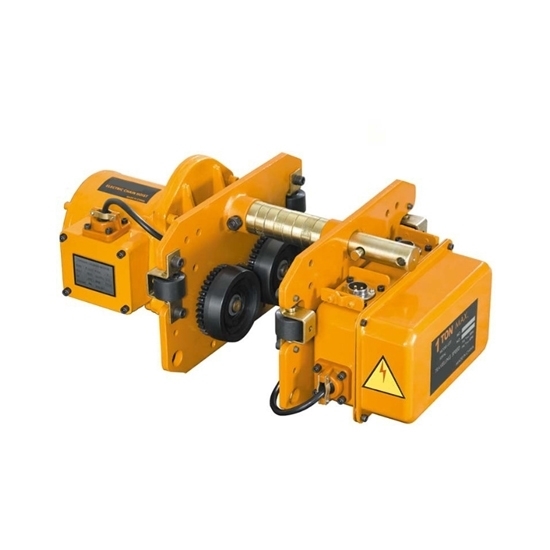

1 Ton Electric Beam Trolley

0 reviews • Write a review

from

$1,176.19

Ex Tax: $1,176.19

Stock: In Stock
Model: RDDLZ-EBT-1T
Weight: 1.00
SKU: RDDLZ-EBT-1T

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 ton electric beam trolley is an indispensable device in manufacturing, warehousing, construction, and logistics, where efficient material handling is paramount. The electric motor enables precise positioning and maneuverability, enhancing overall operational efficiency.

Specification

Model: RDDLZ-PX-01
Load Capacity: 1 Ton
Voltage: 3 Phase AC 380V (Contact us if you need other voltages)
Running Speed: 11 m/min
Motor Power: 0.4 KW
Minimum Turning Radius: 0.8
Applicable I-beams: 80~160mm

Dimension

A	B	R	T
315mm	212mm	142mm	231mm

Tips: What are the different types of beam trolleys?

Beam trolleys, also known as hoist trolleys or overhead trolleys, are devices designed to travel along beams or tracks to facilitate the movement of heavy loads in industrial and commercial settings. There are several types of beam trolleys available, each with its own unique features and applications.

Manual Push Beam Trolley: This type of trolley is manually operated and requires physical effort to push or pull it along the beam. It is commonly used for lighter loads and offers simple and cost-effective material handling.
Geared Beam Trolley: Geared trolleys are equipped with gears and a hand chain that allows the operator to easily move heavier loads along the beam. The gears provide mechanical advantage, reducing the amount of effort required.
Motorized Beam Trolley: Motorized trolleys are powered by an electric motor, eliminating the need for manual pushing or pulling. They offer increased efficiency and are suitable for handling heavier loads with precision and control.
Adjustable Beam Trolley: Adjustable trolleys feature adjustable width capabilities, allowing them to fit various beam sizes. They are versatile and can accommodate different beam profiles, making them a popular choice in applications where beam sizes may vary.
Stainless Steel Beam Trolley: Stainless steel trolleys are specifically designed for environments that require high levels of cleanliness or corrosion resistance, such as food processing or pharmaceutical industries.
