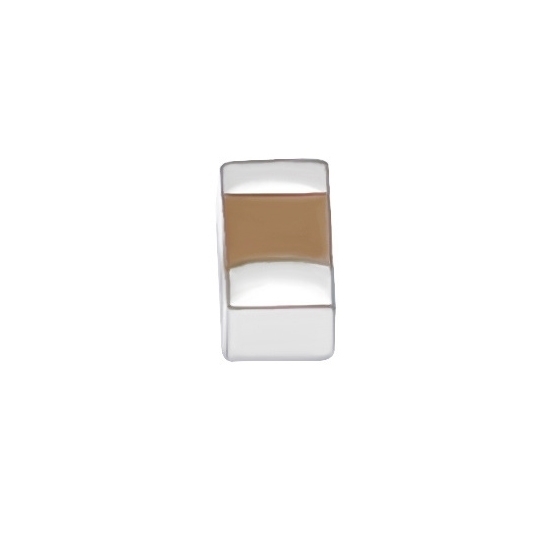

1μF 250V Multilayer Ceramic Chip Capacitor

0 reviews • Write a review

from

$18.19

Ex Tax: $18.19

Stock: In Stock
Model: RDDLZ-MLCC-250V105K
Weight: 1.00
SKU: RDDLZ-MLCC-250V105K

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

SMD Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

Specification

Model: RDDLZ-250V105K1210
Series: Multilayer Ceramic Chip Capacitor
Capacitance: 1μF (1000000pF, 1000nF)
Rated voltage: 100V
Tolerance: 10%
Operating Temperature Range: -40℃ - 105℃
Lead Type: SMD
Size: 3.2mm
Thickness: 2.5mm

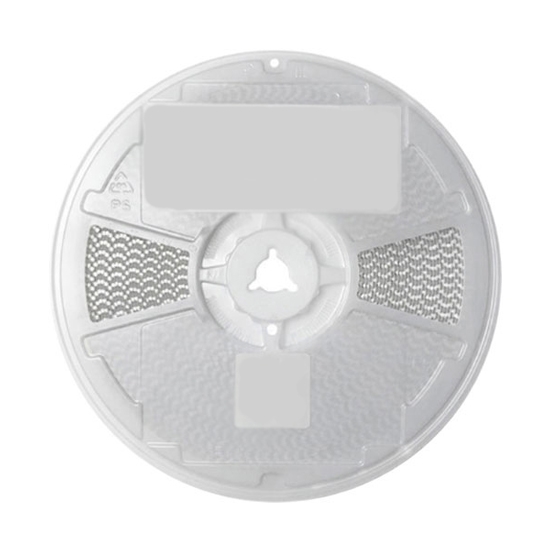

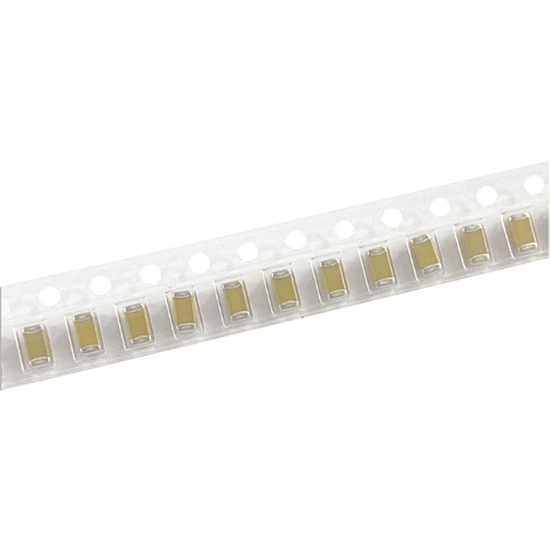

Package: 1000PCS / roll
Application: Household Appliances
Medium Material: Ceramic (Porcelain)
Loss: 0.01%
Weight: 0.3kg

Structure

Tips: What causes the multilayer ceramic chip capacitor failure?

Thermal crack
It is mainly due to the temperature shock of the device during soldering, especially wave soldering. Improper rework is also an important cause of temperature shock cracks.
Flex crack
The characteristics of multilayer ceramic capacitors are that they can withstand large compressive stress, but have poor resistance to bending. Any operation during device assembly that may cause bending deformation may cause device cracking. Common stress sources include: SMD alignment, circuit board operation in the process; people, equipment, gravity and other factors in the flow process; through-hole component insertion; circuit testing, veneer segmentation; circuit board installation; circuit board positioning riveting ; Screw installation, etc. Such cracks generally originate from the upper and lower metallized ends of the device, and extend to the inside of the device along an angle of 45°C. This type of defect is also a type of defect that actually occurs the most.
