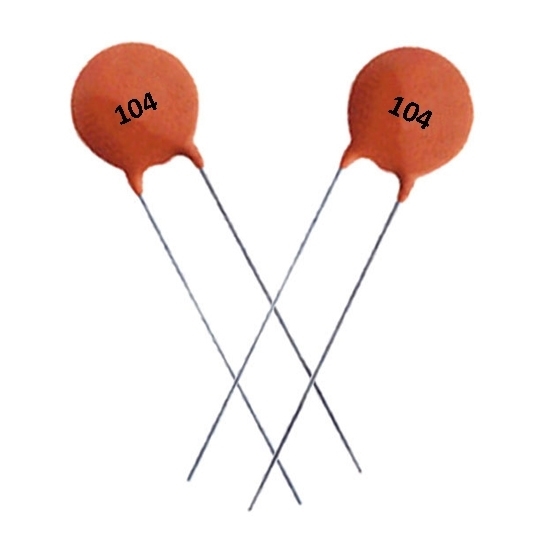

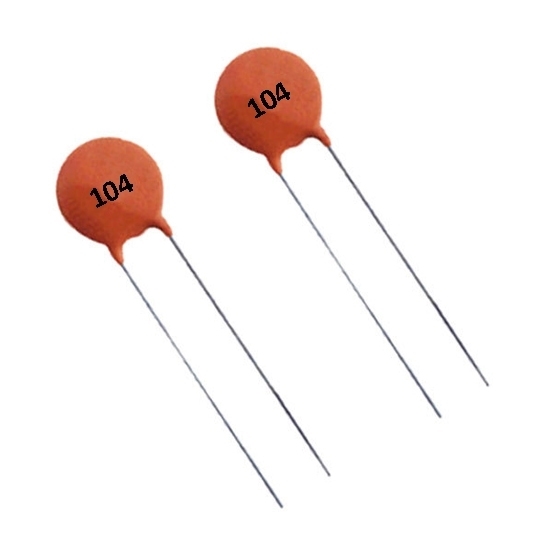

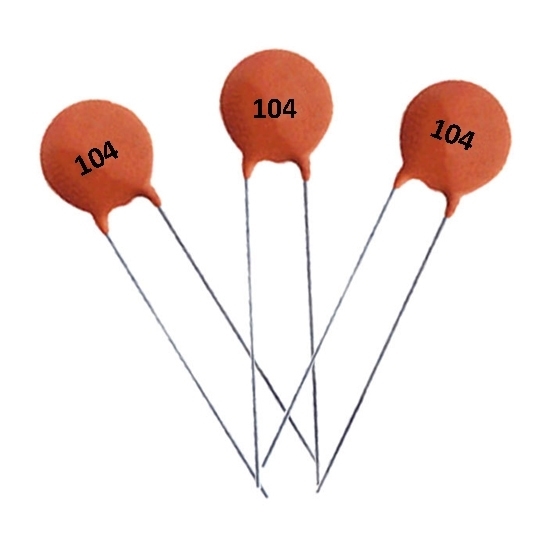

0.1μF 50V Disc Ceramic Capacitor

0 reviews • Write a review

from

$1.13

Ex Tax: $1.13

Stock: In Stock
Model: RDDLZ-CC-50V104K
Weight: 1.00
SKU: RDDLZ-CC-50V104K

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100nF 50V disc ceramic capacitor is a power capacitor, which can be used for negative ion products, lasers, X-ray machines, control and measurement equipment, high-voltage packages, igniters, generators, transformers, power equipment, voltage doubling modules, welding machines, electrostatic spraying and other electromechanical equipment that requires high voltage and high frequency.

Specification

Model: RDDLZ-50V104K
Series: Low Voltage Disc Ceramic Capacitor
Capacitance: 0.1μF (100000pF, 100nF)
Rated voltage: 50V
Tolerance: 20%
Dielectric Material: Y5T
Operating Temperature Range: -40℃ - 105℃
Feature: Medium Frequency
Lead Type: Radial Lead Wire
Lead Pitch: 3mm
Installation Type: In-line
Package: DIP
Application: Household Appliances
Medium Material: Ceramic (Porcelain)
Loss: 0.01%
Weight: 0.02kg

Note:

Capacitance: Under 1KHz (CLASSII), or 1MHz (CLASSI) and 25℃±2℃, Vrms = 1.0V conditons, not exceed capacitance tolerance.
Dissipation factor(D.F.): SL. YL Q> 1000, Y 5P Y 5U Y5V D.F. < 2.5%, Bn D.F. <0.5%, 2R D.F. <0.1%
Insulation resistance: At DC500V voltage for 1 minute CASSAII.R. ≥10,000MΩ, CLASSIII.R. ≥4000MΩ
Test voltage: UR< 6kV, Ut=1.5UR + 500V UR≥ 6kV, Ut = 1.5 x UR

Tips: Difference between blue ceramic capacitors and khaki ceramic capacitors

The blue ceramic chip capacitor is made of ceramic as the medium, coated with a metal film (usually silver) and sintered at high temperature to form electrodes, and then soldered lead wires on the electrodes, coated with protective enamel on the surface, or encapsulated with epoxy resin made. The shape is disc-shaped. Different formulations of ceramic materials have different electrical properties. Taking advantage of this, capacitors with different dielectric constants and different temperature coefficients can be manufactured to meet different application requirements.

The khaki-colored ceramic capacitor also uses ceramics as the medium to form electrodes by high temperature sintering, and then solders lead wires on the electrodes.
