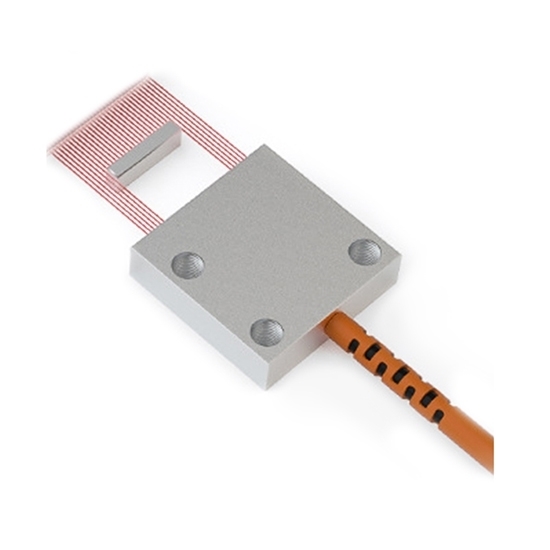

Through Beam Rectangular Fiber Optic Sensor

0 reviews • Write a review

from

$142.36

Ex Tax: $142.36

Stock: In Stock
Model: RDDLZ-FIBER-RF
Weight: 1.00
SKU: RDDLZ-FIBER-RF

Available Options

Detection Range

With Matched Amplifier

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-quality through beam rectangular fiber optic sensors offer a wide range of detection ranges of 10mm, 15mm, and 20mm for accuracy and reliability. Lateral induction design, fiber core specification Ø0.25*16, support 500mm long distance detection, to ensure clear signal transmission.

Specification

Model	RDDLZ-LSD-DT10MLD	RDDLZ-LSD-DT15MLD	RDDLZ-LSD-DT20MLD
Detection Rang	10mm	15mm	20mm
Detection Type	Through beam
Sensing Position	Lateral induction
Optical Fiber Outer Diameter	Ø2.2
Fiber Core I.D.	Ø0.25*16	Ø0.25*16	Ø0.25*16
Working Temperature	-55℃~70℃
Inspection Distance	500mm
Min. Bend Radius	R25
Line Length	2m
Size	10*10mm	15*15mm	15*15mm
Net Weight	≤150g

Dimensional Drawing (unit: mm)

Detection Type

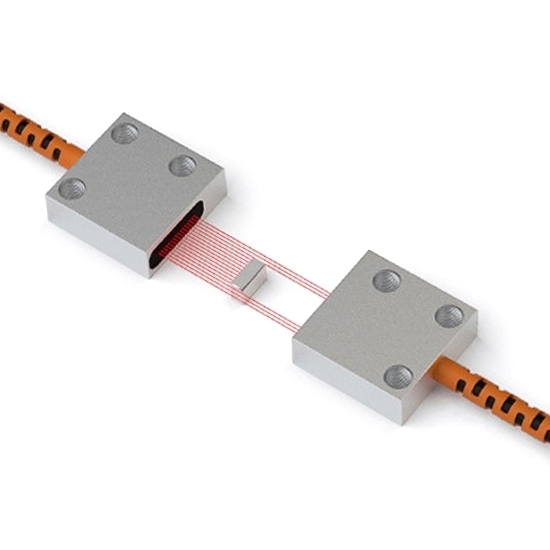

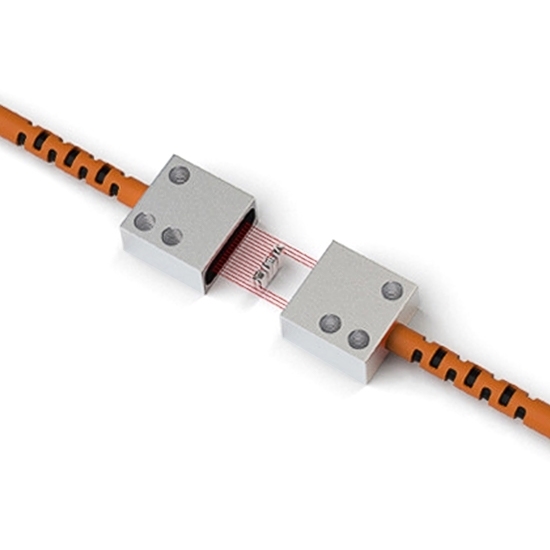

Through Beam: Through beam is a red or infrared light that is emitted by the transmitter and received by the receiver. When an object passes through the light and cuts it off, a signal is output.

Applications

Tips: What are the main application areas of rectangular fiber optic sensors?

Rectangular fiber optic sensors are widely used in industrial, medical and environmental monitoring fields.

Industrial: Used to monitor stress, vibration and displacement of mechanical components to improve the operational safety and efficiency of equipment.
Medical: Commonly used to detect biological signals such as blood flow, pressure and temperature to support precision medicine.
Environmental Monitoring: Can be used to detect water quality, gas leaks and soil changes to help realize real-time environmental protection.

Its rectangular shape offers unique advantages in tight spaces or specific installation environments, such as flexibility in bending and ease of installation.
