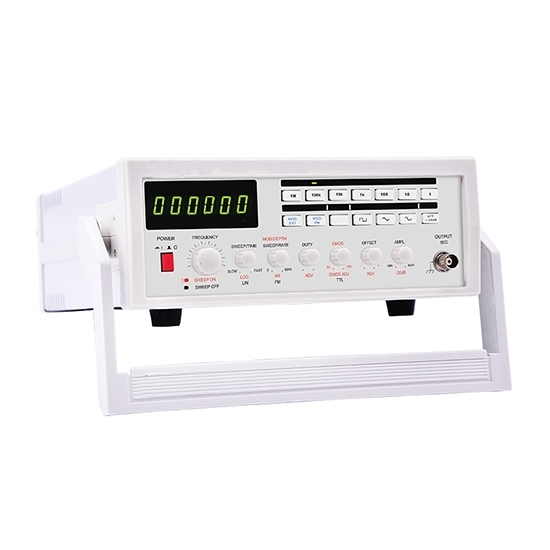

Sweep/AM/FM Function Signal Generator

0 reviews • Write a review

from

$569.72

Ex Tax: $569.72

Stock: In Stock
Model: RDDLZ-FSG-80
Weight: 1.00
SKU: RDDLZ-FSG-80

Available Options

Power Supply

Frequency Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Function signal generator price is affordable, low distortion, high stability and durability.
Sweep time and width are adjustable, with external voltage control frequency function (VCF).
Can output TTL/CMOS compatible signals. The main output signal has DC compensation and 40dB attenuation.

Specification

Model	RDDLZ-FSG-80
Frequency Range	0.1Hz~2MHz	0.1Hz~3MHz	0.1Hz~5MHz
Output Amplitude	10Vp-p (50Ω load)
Output Impedance	50Ω ± 10%
Attenuation	-20dB±1dB
DC Offset	<-5V to >+5V (50Ωload)
Duty Rate	80%: 20%: 80%
Display	6 digit LED display
Amplitude Control	0dB/20dB and fine tune
Sine Waveform
Distortion	≤1%, 0.5Hz~100kHz
Flatness	≤0.3dB (＜200kHz) ≤0.53dB (≥200kHz)	≤0.3dB (＜300kHz) ≤1dB (≥300kHz)	≤0.3dB (＜500kHz) ≤1dB (≥500kHz)
Square
Rise/Fall Time	≤30ns
VCF Output
Input Voltage	0V~10V ±1V (100:1)
Sweep Operation
Sweep Width	Max. 100:1 adjustable
Sweep Mode	Linear/Logarithmic selectable
Frequency Counter
Measuring Range	0.1Hz~30MHz
Internal/external	Selectable
Resolution	Max. 10nHz at 1Hz 0.1Hz at 50MHz
Sensitivity	≤35mVrms (5Hz~30MHz）
Input Impedance	1MΩ/150pF
Power Supply	220V/110V±10%, 50Hz/60Hz
Dimension	250W100H260L mm
Certification	CE

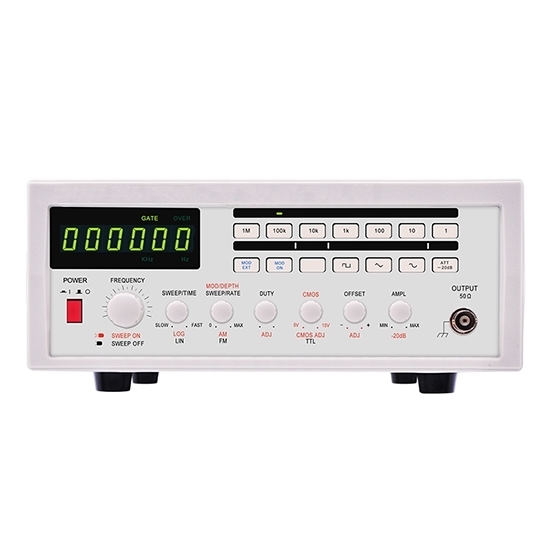

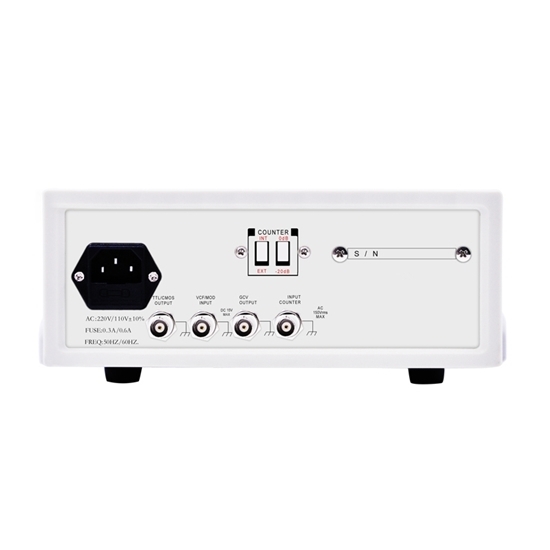

Panel Real Shot

Tips: Function signal generator frequency, output impedance, and output amplitude.

Frequency is also called frequency resolution, is the minimum adjustable frequency resolution, which is the smallest time increment that can be used when creating a waveform. Frequency accuracy is the deviation between frequency value and true value displayed by signal source, it is usually expressed by relative error.
Output impedance of function signal generator refers to the equivalent impedance of signal source from the output end. For example, output impedance of a low-frequency signal generator is usually 600Ω, the high-frequency signal generator is usually 50Ω, and the television signal generator is usually 75Ω.
Output amplitude is generally expressed by voltage or decibel, which refers to the effective range of output signal amplitude. In addition, the output amplitude reading of function signal generator is defined on the output impedance matching condition, so the problem of output impedance matching must be paid attention to.
