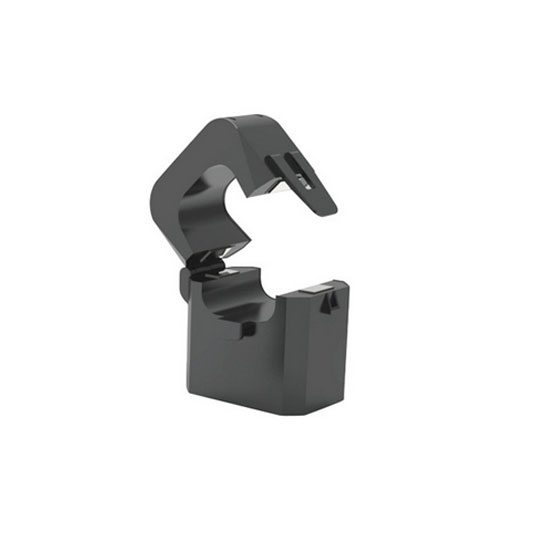

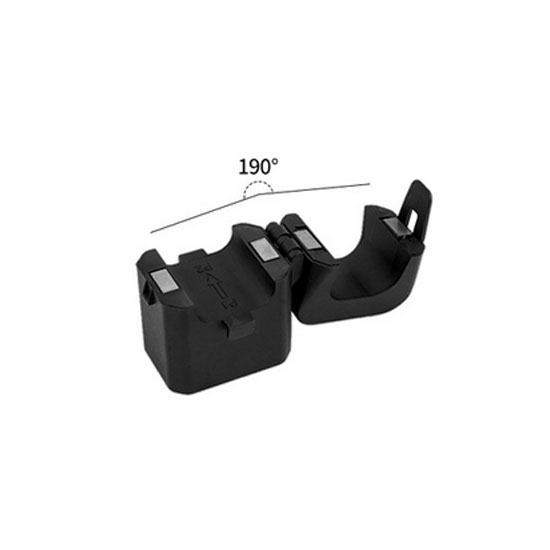

Split Core Current Transformer, 250/5A

0 reviews • Write a review

from

$28.98

Ex Tax: $28.98

Stock: In Stock
Model: RDDLZ-SCT-CTKD-250
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-250

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

250/5A Split core current transformer voltage isolation capacity, safe and reliable, suitable for AC 220V, 380V power supply, current transformer built-in input coil, compact and lightweight, easy to install.

Specification

Model: RDDLZ-SCT-CTKD24-250
Current Ratio: 250/5A
Accuracy Class: 1.0
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

250A Split Core Current Transformer Dimension

φ	A	B	C
23	43	73	39

Tips: Current Transformer Accuracy Levels

Current transformer accuracy levels are 0.1, 0.2 (0.2S), 0.5 (0.5S), 1, 3, and 5P, 10P levels. 0.1 level is used for precision measurement in laboratory; 0.2 (0.2S) and 0.5 (0.5S) levels are used for power metering; 1 and 3 levels are used for current measurement; 5P and 10P are used for protection, such as overload protection current transformer, differential protection current transformer, grounding protection current transformer (zero sequence current transformer).
