Split Core Current Transformer, 150/5A

0 reviews • Write a review

from

$28.98

Ex Tax: $28.98

Stock: In Stock
Model: RDDLZ-SCT-CTKD-150
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-150

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

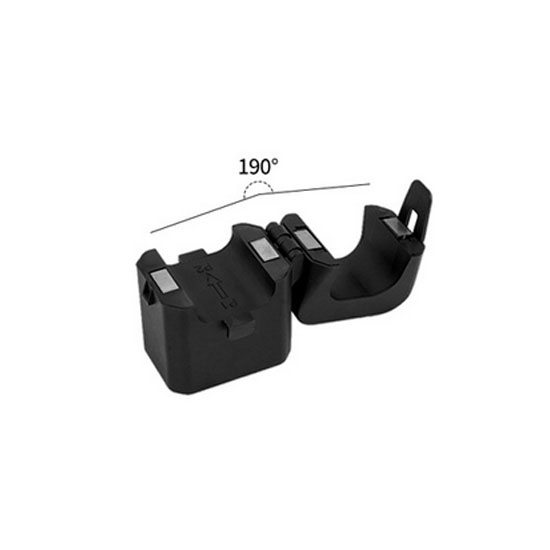

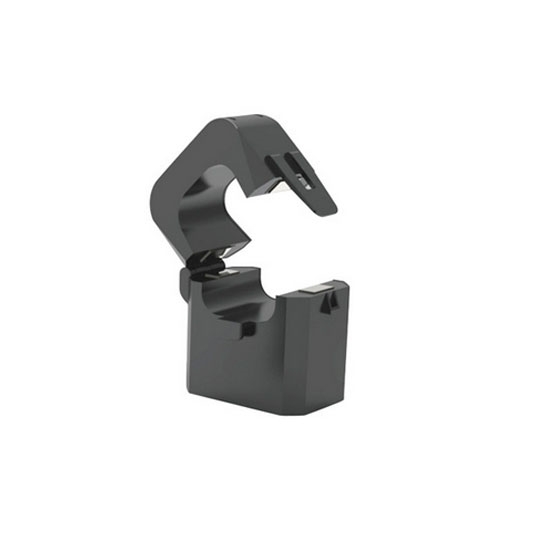

150A Split core current transformer with internal clips, secondary 5A, rated frequency 50 Hz/60Hz, compact and lightweight, with high voltage isolation, safe and reliable.

Specification

Model: RDDLZ-SCT-CTKD24-150
Current Ratio: 150/5A
Accuracy Class: 1.0
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

150A Split Core Current Transformer Dimension

φ	A	B	C
23	43	73	39

Tips: How to wire current transformers correctly?

The primary winding is connected in series with the circuit under test, while the secondary winding should be connected in series with the current coils of all connected measuring instruments, relay protection devices or automatic devices. At the same time, attention should be paid to the correctness of polarity. In order to reduce the polarity relationship, if the primary current flows in from the terminal with the same name, the secondary current should flow out from the terminal with the same name.
