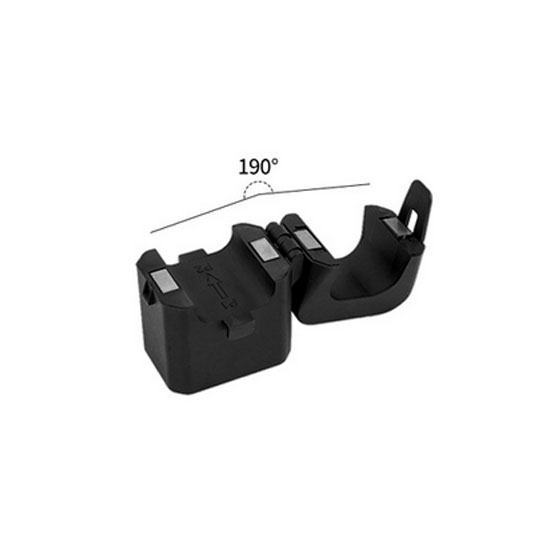

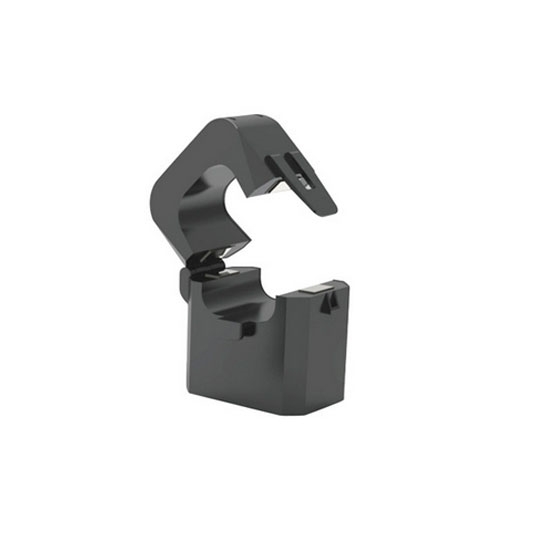

Split Core Current Transformer, 1000/5A

0 reviews • Write a review

from

$89.78

Ex Tax: $89.78

Stock: In Stock
Model: RDDLZ-SCT-CTKD-1000
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-1000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Split core current transformer current transformers are not allowed to be used in open circuit, and cannot be connected to a fuse. When using, be sure to first connect the transformer output load device, otherwise the output generated by the open circuit voltage will have an incalculable impact on personal safety.

Specification

Model: RDDLZ-SCT-CTKD50-1000
Current Ratio: 1000/5A
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

1000A Split Core Current Transformer Dimension

φ	A	B	C
50	81.2	111.9	58

Tips: Current ratio of current transformer

The current ratio of the primary winding current I1 to the secondary winding I2 of the current transformer is called the actual current ratio K. The current ratio of the current transformer when it works at the rated current is called the rated current ratio of the current transformer, expressed by Kn, Kn=I1n/I2n

The polarity of the current transformer is generally marked by the principle of subtractive polarity, that is, the magnetic flux generated by the current in the primary and secondary windings in the iron core is opposite in direction.
