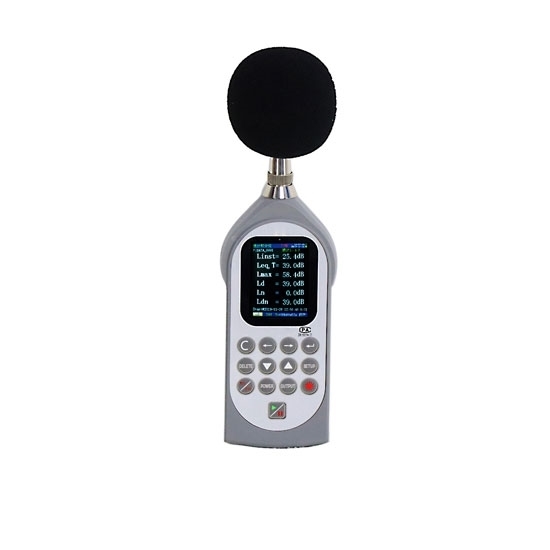

Sound Level Meter, 28 To 133 DB

Sound Level Meter, 28 To 133 DB
Free Shipping
Sound Level Meter, 28 To 133 DB
0 reviews • Write a review
from
$7,998.68
Ex Tax: $7,998.68
  • Stock: In Stock
  • Model: RDDLZ-SLM-5688
  • Weight: 1.00
  • SKU: RDDLZ-SLM-5688

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The professional digital sound level meter features a large, easy to read LCD display and a noise measurement range of 28 dB to 133 dB. Whether you are in the field or in the office, this sound level meter is the ideal solution for noise level monitoring.

Sound Level Meter Features

  • Class 2 sound level meter measuring range 28dB～133dB, accuracy ±1.0, measurement package
  • The portable decibel meter adopts modular design, users can choose total value integration, statistical analysis, 1/1OCT analysis, GPS, Bluetooth, etc. according to their needs
  • The data logging decibel meter adopts digital signal processing technology, which can simultaneously complete A, C, z three frequency weighting F, S, I three time weighting and other indicators measurement
  • A variety of starting methods can be set to automatically turn on and off the machine at a time to meet the requirements of various automatic starting measurements.
  • Noise decibel recorder adopts LCD display, humanized interface, rich content, low power consumption

Specification

ModelRDDLZ-SLM-AWA-5688
Microphone ModelAWA14421
Measuring Range28 dB(A)～133 dB(A)
Frequency Range20 Hz～12.5 kHz
Frequency WeightingParallel (simultaneous) A, C, Z for each channel
Time WeightingParallel (simultaneous) F, S, I, Peak for each channel
Monitor2.6-inch color screen display, resolution 240×320, brightness adjustable
Output InterfaceAC, DC, RS 232, USB
Main Measurement IndexLxyi, Lxyp, Lxeq, Lxmax, Lxmin, LxN, SD, SEL, LCpeak
24-Hour Automatic MonitoringMeasure 1 time per hour, in addition to statistical analysis of all measurement indicators, there are also Ld, Ln, Ldn
Data Storage FunctionStandard 3 MB
Filter selection1/1 OCT center frequency: 31.5 Hz～8 kHz
Other Optional FeaturesBluetooth, recording, GPS positioning
Dimension240mm x 80mm x 30mm
Explosion-Proof TypeIntrinsically safe
Shell Protection Level IP44
Power Supply4 LR6 (No. 5) alkaline batteries; DC 5 V±0.5 V, 1 A external power supply can also be used
Weight2.5 kg
Operating Temperature-40 ℃～40 ℃
Warranty12 Months
Dimension220mm x 68mm x 27mm

GPS Sound Level Meter Panel Display

Class 2 Sound Level Meter Applications

Tips: What is a noise detector?

Noise tester is an instrument used for noise detection and testing in public places such as work sites and squares. Factory noise monitoring Noise pollution is one of the environmental pollutions that have a greater impact. Higher decibel noise can even cause serious damage to people's eardrums and cause deafness. The application of the noise tester can provide the decibel that the noise reaches in order to take relevant measures to control and reduce the noise. The measurement unit of the sound level is decibels. The professional noise tester has a highly sensitive sensor, high accuracy, and a wide range of applications. It can be widely used for noise measurement in various environments. Sound level measuring instrument, collectively referred to as sound level meter.
