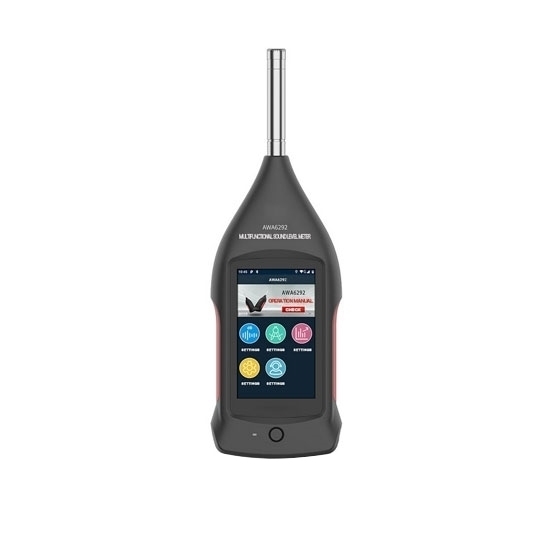

Sound Level Meter, 20 To 143 DB

Free Shipping

Sound Level Meter, 20 To 143 DB

0 reviews • Write a review

from

$7,868.99

Ex Tax: $7,868.99

Stock: In Stock
Model: RDDLZ-SLM-6292
Weight: 1.00
SKU: RDDLZ-SLM-6292

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Smart digital sound level meter has a variety of data transmission methods, integrated 4G, WiFi, Bluetooth, serial port, USB, large-capacity storage, 16G internal storage and expandable 64 GB TF card.

Sound Level Meter Features

Class 1 sound measuring instrument uses a 4.3-inch large color touch screen display, with a simple and clear interface and easy operation
Data security is strong, storage data adopts encryption method to ensure data safety and effectiveness
20W fast charging, 2 hours of charging can meet 1 24-hour measurement
Strong integration scalability, a new generation of Internet instruments, integrated 4G, WIFI, Bluetooth, GPS, serial port, USB, the network port can be expanded through the expansion adapter, and it can be easily integrated and connected to the cloud platform

Specification

Model	RDDLZ-SLM-AWA-6292
Microphone Model	Pre-polarization test condenser microphone
Measuring Range	20 dB(A)～143 dB(A)
Frequency Range	10 Hz～20 kHz
Frequency Weighting	Parallel (simultaneous) A, C, Z for each channel
Time Weighting	Parallel (simultaneous) F, S, I, Peak for each channel
Monitor	Touch screen
Main Measurement Functions	Total value integration, statistical integration, 24-hour automatic monitoring, 1/1 OCT, 1/3 OCT, FFT analysis, indoor measurement, reverberation time, STI, etc.
Main Measurement Index	Lxyp, Lxeq, T, Lxeq, t, Lxmax, Lxmin, LxN, SD, SEL, Lxpeak, etc. (Note: x is A, C, Z; y is F, S, I; N is 5, 10, 50, 90 , 95)
Main Display Content	Real-time measurement and display of more than 9 measurement indicators, statistical distribution graph, cumulative distribution graph, and 24-hour distribution graph
Data Storage Function	16G internal storage, maximum support 64G TF card
Communication Interface	4G, WIFI, Bluetooth, serial port, USB
Protection Level	IP65 (without microphone)
Battery Capacity	10000mAh Lithium battery
Power Supply	9V DC power supply (20W fast charge)
Weight	910g
Operating Temperature	-40 ℃～40 ℃
Warranty	12 Months
Dimension	28mm x 95mm x 40mm

Details

Sound Level Meter Applications

Tips: Sound level meter working principle

The sound level meter uses a microphone to convert the sound into an electrical signal, and then a preamplifier converts the impedance to match the microphone with the attenuator. The amplifier adds the output signal to the weighting network, performs frequency weighting on the signal (or an external filter), and then amplifies the signal to a certain amplitude through the attenuator and amplifier, and sends it to the effective value detector (or external press Level recorder), give the value of the noise level on the indicator head.
