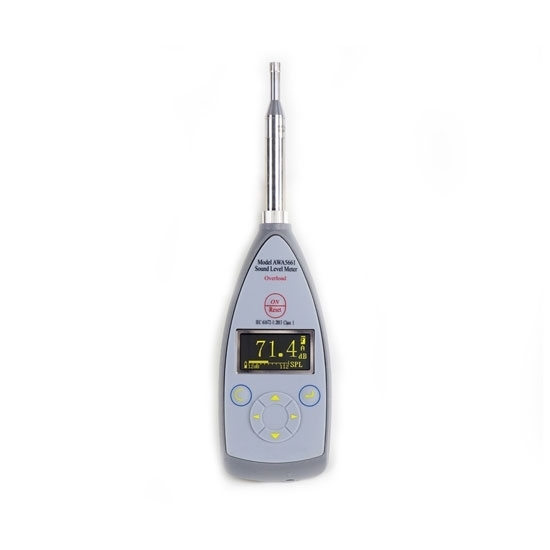

Sound Level Meter, 17 To 132 DB

0 reviews • Write a review

from

$2,876.98

Ex Tax: $2,876.98

Stock: In Stock
Model: RDDLZ-SLM-5661-1B
Weight: 1.00
SKU: RDDLZ-SLM-5661-1B

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Sound loudness meter measuring range 17 to 132 dB, RS-232 digital output interface, remote control, frequency range 10 Hz～20 kHz, hand-held decibel meter is professionally used to detect noise, powerful and easy to operate.

Digital Sound Level Meter Features

Class 1 sound level meter adopts digital signal processing, with good stability and high reliability
The noise decibel reader adopts a modular design, selects on demand, and is cost-effective
RDDLZ professional decibel meter has a large measuring range, simple operation and wide application
RS-232 digital output interface, remote measurement is possible

Specification

Model	RDDLZ-SLM-AWA-5661-1B
Microphone Model	AWA14411
Measuring Range	17 dB(A)～132 dB(A)
Spontaneous Noise	<10 dB(A)
Frequency Range	10 Hz～20 kHz
Frequency Weighting	Parallel (simultaneous) A, C, Z for each channel
Time Weighting	Parallel (simultaneous) F, S, I, Peak for each channel
Monitor	128×64 LED dot matrix
Output Interface	AC, DC, RS232, PWM
Points Function	No
Main Measurement Index	Lp, Lmax, Lpeak
Overrun Indication	The limit can be set
Data Storage Function	No
Recording Function	No
Statistical Analysis Function	No
Power Supply	4 (7#) alkaline batteries, can work continuously for more than 6 hours
Dimension	190mm x 68mm x 27mm
Weight	1.5 kg
Operating Temperature	-10 ℃～50 ℃
Warranty	12 Months
Dimension	220mm x 68mm x 27mm

Compact Sound Level Meter Panel Display

Handheld Sound Level Meter Applications

Tips: What is a sound level meter?

Sound level meter is the most basic noise measuring instrument. It is an electronic instrument, but it is different from objective electronic instruments such as voltmeters. When the acoustic signal is converted into an electrical signal, it can simulate the time characteristic of the human ear's response speed to the sound wave; the characteristic of different sensitivity and the intensity characteristic of changing the characteristic when the loudness is different. The sound level meter is a subjective electronic instrument.
