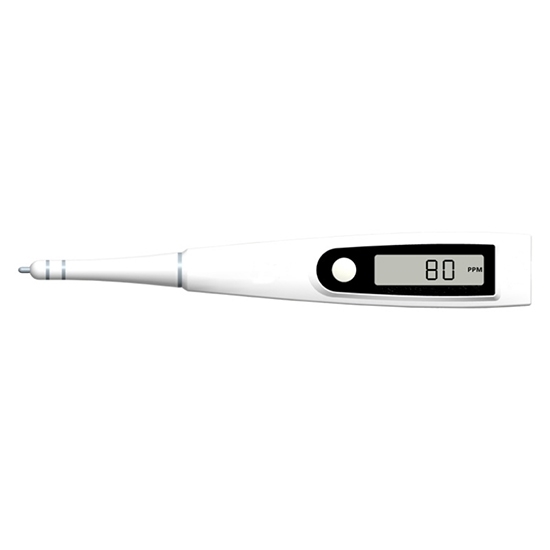

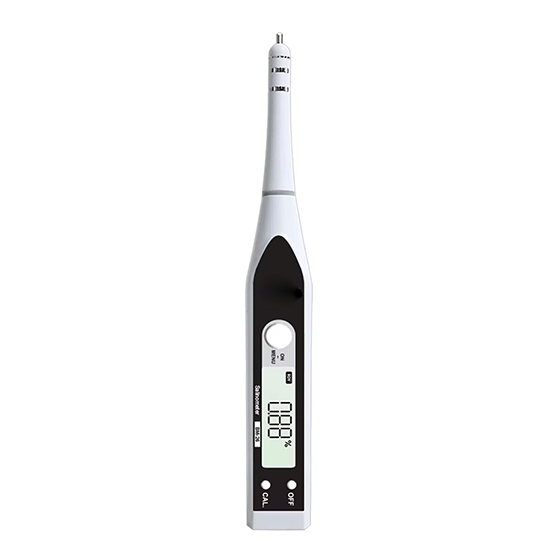

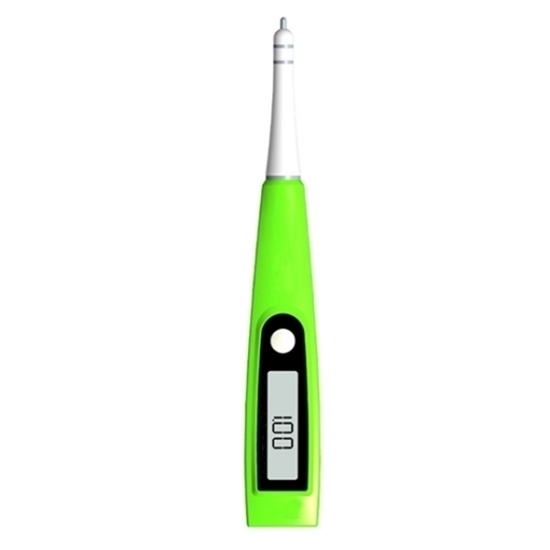

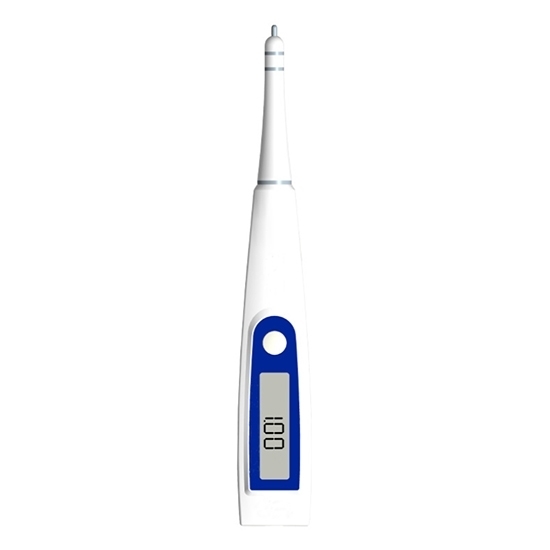

Salinometer/TDS Meter, 0~10000PPM, Salinity 0.01%~25%

0 reviews • Write a review

from

$167.59

Ex Tax: $167.59

Stock: In Stock
Model: RDDLZ-WQT-1116
Weight: 1.00
SKU: RDDLZ-WQT-1116

Available Options

Salinity Test Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

High resolution, high measurement precision and speed.
High brightness backlight and high-definition digital display, easy for reading.
Integrated design, compact structure, easy to carry and long service life.

Application: Salinity testing and TDS PPM testing in industries such as water treatment, drinking water production, salt production, food production, and beverage production.

Specification

Model	RDDLZ-WQT-BM
Salinity Test	Test Range (optional)	0.01%~5.00%, 0.01%~10.00%, 0.01%~26.00%
	Test Methods	Automatic test
	Test Temperature Range	1℃~90℃ (salinity<15%), <50℃ (salinity>15%)
	The Decomposition	0~4.99%: 0.01% 5~10%: 0.05% 10~15%: 0.1% 15~25%: 0.5%
	Precision	0.01~1.99% (±0.1%) 2.00~5.00% (±0.2%) 5~10% (±0.5%) 10~15% (±1%) 15~25% (±2%)
TDS Test	Test Range	0~10000PPM
	Test Precision	2% F.S
	Test Method	Automatic
	Test Temperature Range	0~80℃
	Test Result	Few 0~50 Little 50~100 A Little 101~300 More 601~1000 Unqualified >1000
Test Principle	Method for determination of electrical conductivity
Test Environment	5℃~60℃, Test material maximum temperature<90℃
Power Saving Function	60 seconds after the automatic shutdown
Temperature Compensation	A.T.C
Display Area	LCD (Backlight)
Complete Function	PPM value<500PPM, the direct display of TDS PPM value. PPM value>500PPM, showing the value of salinity %. Twice consecutive button to display the results of TDS PPM. Beep prompt tone: began to ring 1 times, the end of the ring 2 times. Backlight: 5 seconds after the test shows.
Replace Battery Alert	LOW icon flashing
Power Supply	1.5V*2EA (AAA type battery)
Waterproof Grade	Life waterproof
Implementation Standards	Q/YM003-2015
Certification	CE
Weigh	0.5kg

Salinometer/TDS Meter Structure Diagram

Salinometer/TDS Meter Usage Method

Salinometer/TDS Meter Measurement Precautions

Note when testing

As the sensing part and bottom and side wall spacing of 1~2cm, soaking only half the bubble column. Do not touch the residue in the liquid.
When there is a residue or liquid shortage, tilt the container test.
The sensing section can also be tested at the bottom.
The induction part should not touch the side wall.

Test fluid to be fully loaded into the test box can be accurate test

Other matters needing attention

The actual of the actual Na of the test components of the test ingredients will be different.
There are also differences in the testing of the residue of the liquid.
There will be a difference in the oil content of the food.

Tips: what is a TDS meter?

TDS is initials for Total dissolved solids. It shows how much dissolved solids are dissolved in 1 liters of water. Units for the mg/L or PPM. TDS includes non-volatile soluble salts, organic compounds and can be passed insoluble particles of the filter, etc. The higher the TDS value, the more lysate is contained in the water. TDS meter is a tester designed for this purpose and shows the ppm value of inorganic or organic matter in water. It is also known as PPM meter, TDS water tester, water TDS meter, etc.
