Portable Electric Pipe Threader, 1/2 Inch - 2 Inch

0 reviews • Write a review

from

$820.32

Ex Tax: $820.32

Stock: In Stock
Model: RDDLZ-PTHR-0203
Weight: 1.00
SKU: RDDLZ-PTHR-0203

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

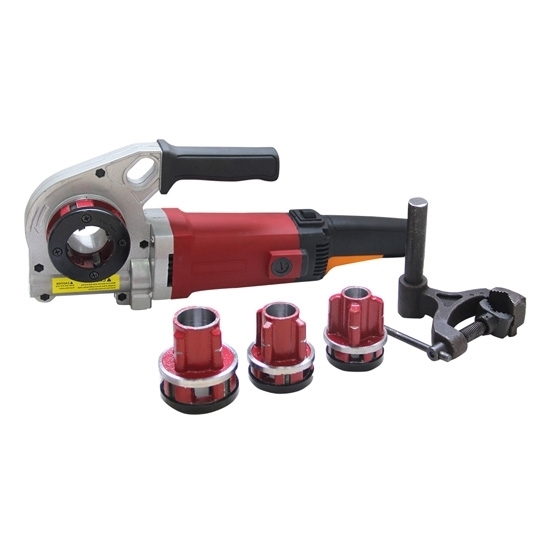

Handheld electric pipe threading machine is driven by 1400W 24RPM motor with 1/2 inch ~ 1-1/4 inch threading pipe capacity or 2000W 28RPM motor with 1/2 inch ~ 2 inch capacity. Featuring light weight for protability, high durability, easy operation and long serive life, it is mainly used for threading the stainless steel pipe, galvanized pipe, copper pipe, PP pipe, etc.

Specification

Model	RDDLZ-GMTE-02	RDDLZ-GMTE-03
Voltage	230V 50Hz	230V 50Hz
Power	1400W	2000W
Speed	24 r/min	28 r/min
Capacity	1/2" ~ 1-1/4"	1/2" ~ 2"
Package Size	550285280mm	640170350mm
Net/Gross weight	22kg/23kg	18kg/19kg

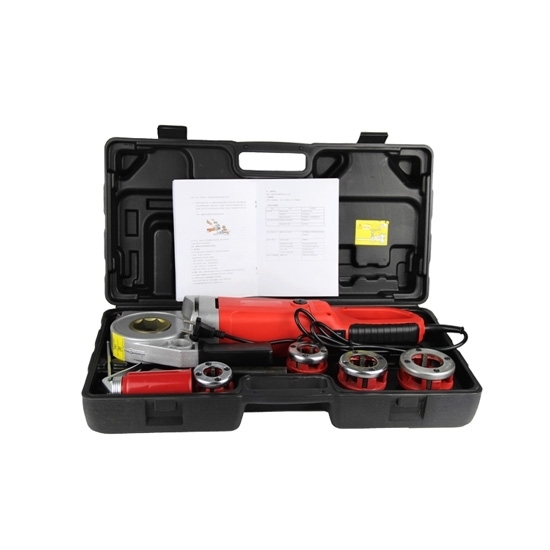

Packing List	Pipe threader * 1 Die heads * 4 Oil gun * 1 Gloves * 1 Hex wrench * 1 Carbon brush * 1 Holder * 1 Instruction * 1	Pipe threader * 1 Die heads * 6 Oil gun * 1 Gloves * 1 Hex wrench * 1 Carbon brush * 1 Cleaning brush * 1 Instruction * 1

Pipe Threader Die Size

Size	Pipe Inner Diameter	Pipe Outer Diameter	BSPT
DN15	15mm	22mm	1/2”
DN20	20mm	27mm	3/4”
DN25	25mm	34mm	1”
DN32	32mm	42mm	1-1/4”
DN40	40mm	48mm	1-1/2”
DN50	50mm	60mm	2”

Tips:

The hand-held electric threader is a lightweight portable electric threading machine, easy to carry. Compared with the desktop pipe threader on the market, the handheld threader can achieve better automation and reduce human labor. Because the portable pipe threader is equipped with an automatic tooth feeding mechanism, it can use a variety of standard dies to thread pipe. The handheld threading machine can thread the pipe without disassembling the laid pipes and in narrow spaces, and are widely used in pipeline installation and maintenance projects in various industries. The portable electric pipe threader has following features.

Compared with the desktop electric pipe threader, the handheld electric pipe threader is light in weight and convenient to carry.
Use high-quality die head, long life, and can quickly replace the die head, labor-saving and fast operation.
It is not limited by the site, and can be flexibly operated on the construction site or in unconventional occasions.
It is suitable for industrial and mining enterprises, colleges, home maintenance, small and medium-sized engineering teams, and can be used for operations such as heating, running water, heating, and gas. This product supports the use of standard pipes.
Universal die heads can be easily bought from the hardware market.
