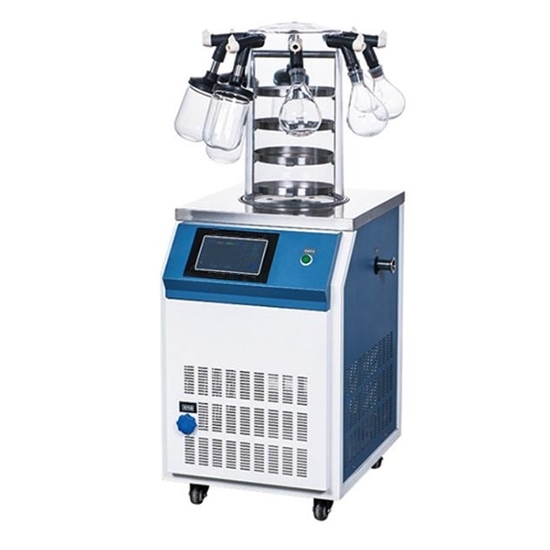

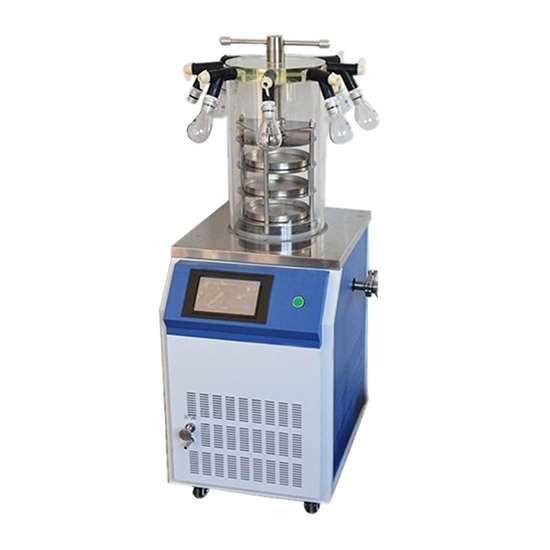

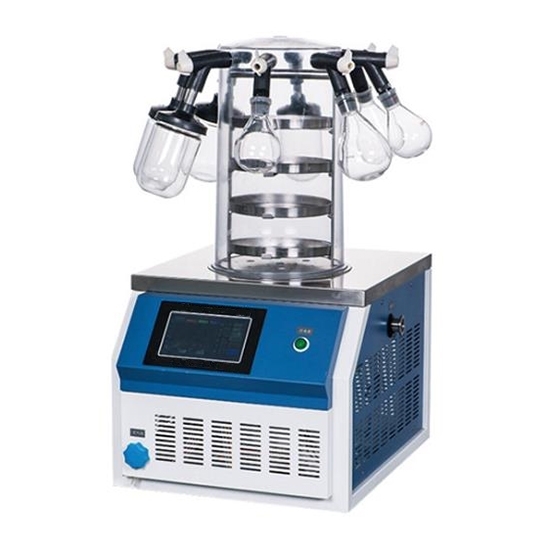

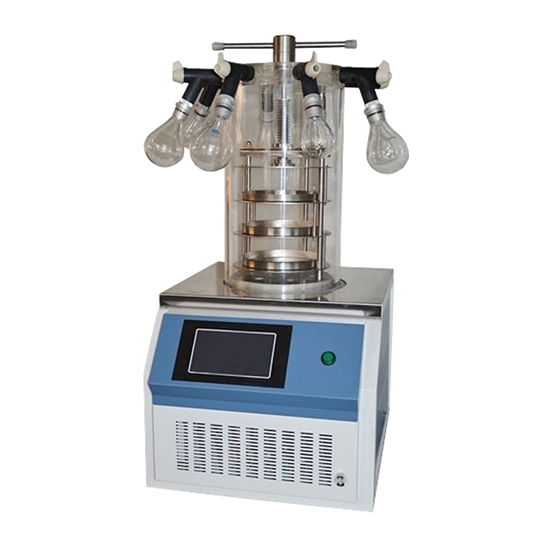

Multi-Manifold Industrial/Commercial Freeze Dryer

Free Shipping

Multi-Manifold Industrial/Commercial Freeze Dryer

0 reviews • Write a review

from

$20,586.15

Ex Tax: $20,586.15

Stock: In Stock
Model: RDDLZ-FD-1012
Weight: 1.00
SKU: RDDLZ-FD-1012

Available Options

Manifold Type

Capture Water Ability

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Suitable Material Types for Different Manifold Types

Ordinary multi-manifold freeze dryer: Suitable for loading external bottled materials.
Gland-type multi-manifold freeze dryer: Suitable for loading bulk materials, bottled materials and external bottled materials.

Specification

Model	RDDLZ-FD-103O	RDDLZ-FD-124O	RDDLZ-FD-103G	RDDLZ-FD-124G
Manifold Type	ordinary multi-manifold		gland-type multi-manifold
Capture Water Ability	3kg	4kg	3kg	4kg
Freeze Area	0.12cm²	0.12cm²	0.08cm²	0.08cm²
Plate Load Capacity	1.5L	1.5L	1L	1L
Machine Dimension (WDH) (mm)	450580(380+450)	600460(720+450)	450580(380+450)	600460(720+450)
Sample Tray Size	4*Φ200mm	4*Φ200mm	3*Φ180mm	3*Φ180mm
Cold Trap Size	Φ215*160mm	Φ215*216mm	Φ215*160mm	Φ215*216mm
Number of Schering Bottles	Φ22: 260 Φ16: 480 Φ12: 920	Φ22: 260 Φ16: 480 Φ12: 920	Φ22: 165 Φ16: 285 Φ12: 560	Φ22: 165 Φ16: 285 Φ12: 560
N.W	95kg	120kg	100kg	125kg
Power	950W
Power Supply	220V/50Hz (or customize 110V/60Hz)
Certification	CE
No-Load Temperature	<-56℃
Vacuum Degree	<10Pa
Interlayer Spacing	70mm

Structure Diagram of Multi-Manifold Commercial/Industrial Freeze Dryer

Usage Steps of Multi-Manifold Commercial/Industrial Freeze Dryer

Place the cold-dry rack or gland cold-dry rack above the cold trap. Place material to be lyophilized on rack, and cover the multi-manifold plexiglass cover or gland multi-manifold plexiglass cover.
Remove the lyophilized bottle from freezer and install standard tube stopper. Insert the stopper into bottle heart. After installing lyophilized bottle, turn the valve wing so that it faces down vertically, connect inside of the bottle with inside of cover.
Tighten the vacuum valve and press the vacuum pump button. Then the vacuum pump will work and the vacuum will drop rapidly. It is normal for vacuum degree to drop below 15Pa, at which point lyophilization begins.
If materials in drying bottle and materials on the tray in cover have been completely dried, remove the drying bottle first. Then inflate the cover and remove the multi-manifold plexiglass cover.
Take out the material to packaging and storage. Do not remove the glass cover before removing the drying bottle.

Tips: Precautions when using multi-manifold commercial/industrial freeze dryer.

Place the vacuum pump on the ground and maintain a certain height difference from main body of the freeze dryer. In the event of a sudden power outage, it helps prevent oil return.
In the event of power outage, immediately unscrew the inflation valve, remove materials as soon as possible, and store it properly.
When shutting down, inflate first, and then turn off the vacuum pump to prevent vacuum pump from returning oil to contaminate materials.
Do not switch the power supply and refrigerator frequently. If the refrigerator has stopped due to operation, wait at least three minutes before restarting it.
Cooling holes in front of the freeze dryer need to be cleaned frequently, and remove dust regularly according to use environment.
To ensure safety, the freeze dryer must be grounded.
