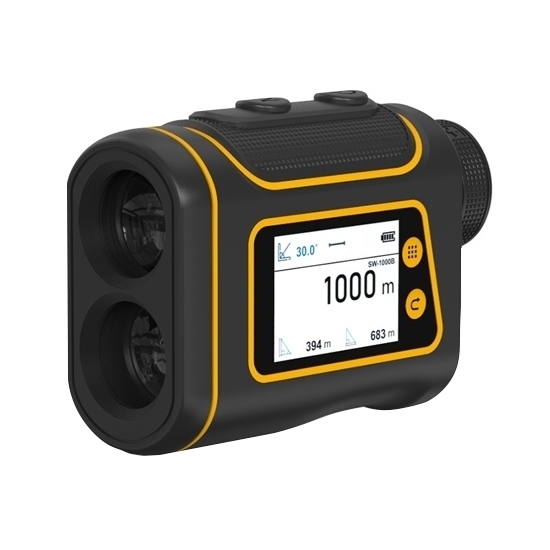

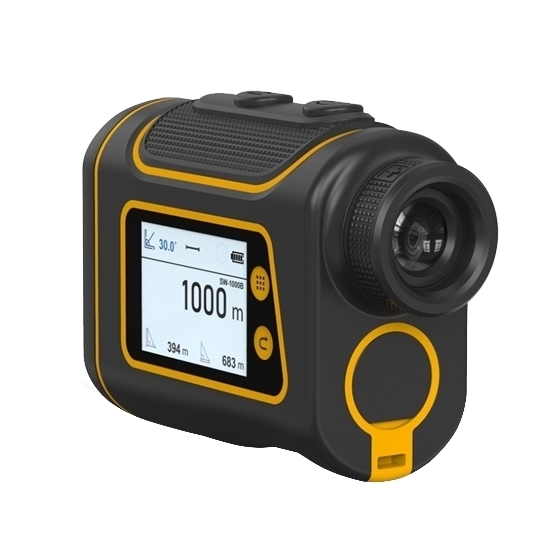

The laser telescope rangefinder utilizes a laser beam to measure the time it takes for the laser pulse to travel to the target and back, enabling precise distance calculations. This telescope distance meter provides a quick and reliable solution for depth measurement, offering unparalleled convenience in various fieldwork scenarios. It stands out as a versatile and efficient distance meter, enhancing precision and efficiency in diverse applications.

Specification

• Model: RDDLZ-SW800B/RDDLZ-SW1500B/RDDLZ-SW2000B
• Maximum Measuring Range: 800m/1500m/2000m
• Speed Measurement Function: 0-300Km/h (error 5Km/h)
• Indication Error: ±(1.0m+D*0.3%)
• Protection Level: IP54
• Area Function: Yes
• Volume Function: Yes
• LCD Touch Screen: Yes
• Height Measurement Function: Yes
• Scanning Ranging Function: Yes
• Flagpole Lock: Yes
• Automatic Storage Function: Automatically Save 30 Items
• Angle Measurement Range: ±90°
• Angle Tolerance: ±1°
• Telescope Magnification: (6.0±5%)X
• Telescope Objective Lens Aperture: 23mm
• Telescope Eyepiece Aperture: 15.0mm
• Exit Pupil Diameter: 3.7mm
• Field of View: ±7.0°±10%
• Diopter Adjustment Range: ±6 Diopters
• Measurement Unit: m, Y
• Battery: 750mAh Lithium Battery
• Battery Life: Charge/Discharge 800 Times
• Overall Power Consumption: 1.2W
• LCD Display: Transmissive LCD
• Dimension: 104*76.5*40.5mm

Measuring mode

• Single measurement: Aim at the object to be measured and measure the straight-line distance from the object.
• Continuous measurement: Scan the measured area and refresh distance data in real-time.
• Angle/Vertical/Horizontal: Aim at the object to be measured and display multiple measurement data at the same time.
• Speed measurement: Aim at the object to be measured and display the current speed in real-time.
• Lock measurement: When there are multiple objects in the area, redundant objects are eliminated and the target farther away is locked.

Detail

Tips: What is a laser telescope rangefinder?

A laser telescope rangefinder is an optical instrument designed for precise distance measurement using laser technology. It combines the principles of telescopic observation and laser ranging to determine the distance to a target. The device emits a laser beam towards the target, and upon reflection, the rangefinder calculates the time it takes for the laser pulse to travel to the target and back. By multiplying this time by the speed of light, the instrument accurately calculates the distance to the target. Laser telescope rangefinders are commonly used in various applications, including surveying, forestry, hunting, and military operations. They provide quick and accurate distance measurements, enhancing efficiency and precision in tasks requiring reliable spatial information. The integration of laser technology makes these rangefinders particularly useful in scenarios where conventional methods may be impractical or less accurate.
