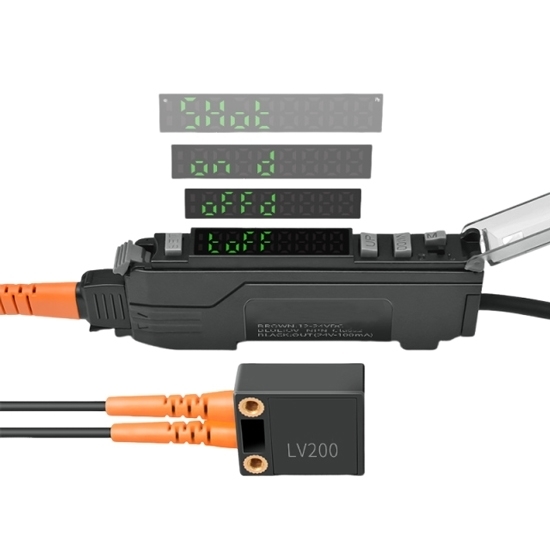

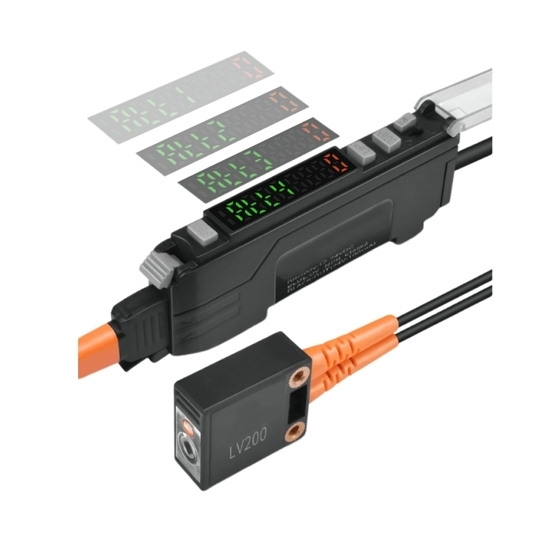

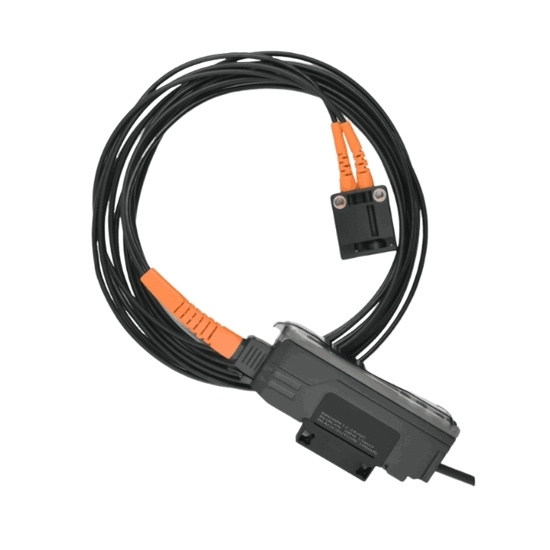

Laser Fiber Optic Sensor With Amplifier, NPN

0 reviews • Write a review

from

$219.63

Ex Tax: $219.63

Stock: In Stock
Model: RDDLZ-FIBER-LFM
Weight: 1.00
SKU: RDDLZ-FIBER-LFM

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-efficiency reflective fiber optic sensor with laser fiber sensor and amplifier kit, combining excellent performance and reliable design, suitable for a variety of precision inspection applications. Built-in overload protection and <1.5V low dropout design ensure safe and stable operation.

Specification

Model	RDDLZ-LV-WA1+LV200
Output Method	NPN (normally open and normally closed switchable)
Working Voltage	12-24VDC
No Load Current	<20mA
Maximum Load Current	100mA
Voltage Drop	<1.5V
Switching Frequency	1kHz
Response Time	1ms
Switching Fluctuation	<10%(Sr)
Repeatability	<5%(Sr)
Protection Class	IP65
Operating Ambient Temperature	-10°C~+55°C
Short Circuit Protection	Support
Overload Current Protection	220mA
Standard Cable Length	2m
Shell Material	PBT
Certificates	CE
Dimension	752810.5mm (Amplifier) + 252210mm (Laser Probe)
Net Weight	87g approx.

Dimensional Drawing (unit: mm)

Details

Wiring Drawing

Applications

Tips: What is a fiber optic amplifier?

Fiber optic amplifier is a device that uses fiber optic media to amplify optical signals and is commonly used in the field of optical communications and lasers. The basic principle is to optically gain the input optical signal by doping the optical fiber with rare earth elements (such as erbium, thulium or ytterbium) under the excitation of pump laser. Fiber amplifiers do not need to convert optical signals into electrical signals, and directly amplify optical signals, thereby reducing signal loss and improving transmission efficiency.
