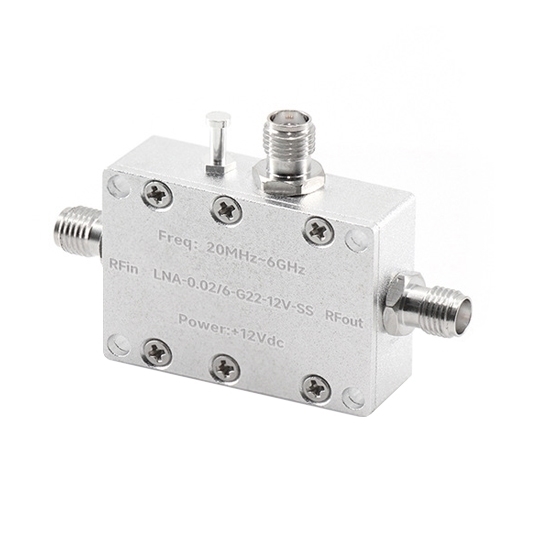

LNA RF Low Noise Amplifier, 0.02~6 GHz, 22dB Gain

0 reviews • Write a review

from

$328.49

Ex Tax: $328.49

Stock: In Stock
Model: RDDLZ-LNA-002622
Weight: 1.00
SKU: RDDLZ-LNA-002622

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low noise amplifiers are indispensable for maintaining signal integrity in the realm of satellite communication where precision is paramount. These wideband RF LNAs operate at high speeds, effectively amplifying signals across various frequencies. Whether integrated as part of a receiver or used as a standalone module, the LNA's role is pivotal in optimizing the performance of satellite communication systems.

Specification

Model: RDDLZ-LNA-0.02/6-G22-12V-SS
Frequency Range: 0.02~6 GHz
Gain: 22dB±1dB
Input Standing Wave Ratio (VSWR): ≤2.0
Output Standing Wave Ratio (VSWR): ≤2.0
Noise Figure: 2.0dBTYP.@(0.01~6GHz)/2.4dBTYP.@(0.005~0.01GHz)/5.0dBTYP.@(0.002~0.005GHz)
Output 1dB Compression Point: ≥19dBm(22dBm@2GHz/20dBm@6GHz TYP.)
Output Third-Order Cutoff Point: ≥27dBm(30dBm@2GHz/28dBm@6GHz TYP.)
Working Current: 50mA@12V TYP.
Working Voltage: 12V
Working Temperature: -40℃~+70℃
Maximum Input Level: 12dBm
Shell Material: Sandblasted
Connector Type: SMA-Female

Dimension (Unit: mm)

Note: General tolerance ±0.3mm

Gain Diagram

Wiring Diagram

Tips: What is LNA RF low noise amplifier?

A low noise amplifier (LNA) is a crucial component in radio frequency (RF) systems designed to amplify weak signals with minimal additional noise. Operating in the microwave and radio frequency spectrum, LNAs enhance signal strength at the input stage of a receiver, improving overall system sensitivity. These electronic devices are characterized by their ability to provide high gain while maintaining low noise figure, essential for preserving signal integrity.

LNAs are commonly employed in communication systems, such as satellite receivers, wireless networks, and radar systems. Their role becomes especially critical in scenarios where incoming signals are weak, ensuring that the signal-to-noise ratio remains favorable. LNAs come in various forms, including discrete components and integrated circuits, and they play a key role in optimizing the performance of RF systems by boosting weak signals while introducing minimal additional noise.
