Infrared Paint Curing Lamp For Car Spray Paint

0 reviews • Write a review

from

$268.77

Ex Tax: $268.77

Stock: In Stock
Model: RDDLZ-IPCL-1236
Weight: 1.00
SKU: RDDLZ-IPCL-1236

Available Options

Lamp Quantity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Infrared Paint Curing Lamp Features

Provide efficient painting process to car spray paint, strengthen hardness of the paint, and improve the paint adhesion.
With digital display, control time and power more accurately.
Matching high-temperature wires, strong and durable, to prevent corrosion and melting of wires.
With overload and overheating circuit induction function, providing automatic overload protection for car spray paint work, eliminate hidden dangers.

Specification

Model	RDDLZ-IPCL-LD1A	RDDLZ-IPCL-LD1H	RDDLZ-IPCL-LD2A	RDDLZ-IPCL-LD2AL	RDDLZ-IPCL-LD3AL	RDDLZ-IPCL-LD3AT	RDDLZ-IPCL-LD3AC	RDDLZ-IPCL-LD3AM	RDDLZ-IPCL-LD6AT
Number of Lamps	1		2		3				6
Input Voltage	220-240V 50/60Hz		220-240V 50/60Hz		220-240V 50/60Hz				380V 50/60Hz
Rated Power	1×1100W		2×1100W		3×1100W				6×1100W
Curing Temperature	40℃~100℃		40℃~100℃		40℃~100℃				40℃~100℃
Curing Area	650×500mm		800×800mm		1200×1000mm				2000×1200mm
Adjustable Height	2200mm		1500mm		2200mm				2200mm
Drying Time	0~60min		0~60min		0~60min				0~60min
Working Current	10A		10A		16A				16A
Weight	3.5kg	11kg	24.5kg	25kg	55kg	55kg	57kg	62kg	73kg
Additional Feature	Refer to the Additional Feature Table
Certification	CE

Additional Performance for Infrared Paint Curing Lamp with Different Model

Model	Additional Performance

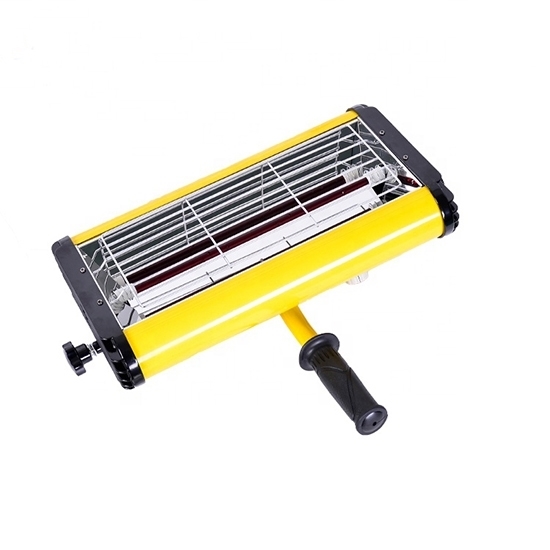

RDDLZ-IPCL-LD1A	Hand-held
RDDLZ-IPCL-LD1H	Stand
RDDLZ-IPCL-LD2A	Can move up and down, up to the car roof. With simple timer switch.
RDDLZ-IPCL-LD2AL	Can move up and down, up to the car roof. With control box, small circuit board, SCR (Thyristor), thermostat.
RDDLZ-IPCL-LD3AL	Interface operation method is manual knob control
RDDLZ-IPCL-LD3AT	Interface operation method is computer board touch control. With pulse function.
RDDLZ-IPCL-LD3AC	Interface operation method is computer board touch control. With pulse function. With temperature and distance measurement function.
RDDLZ-IPCL-LD3AM	Interface operation method is computer board touch control. With pulse function. With temperature and distance measurement function. Large screen four digits display temperature and time.

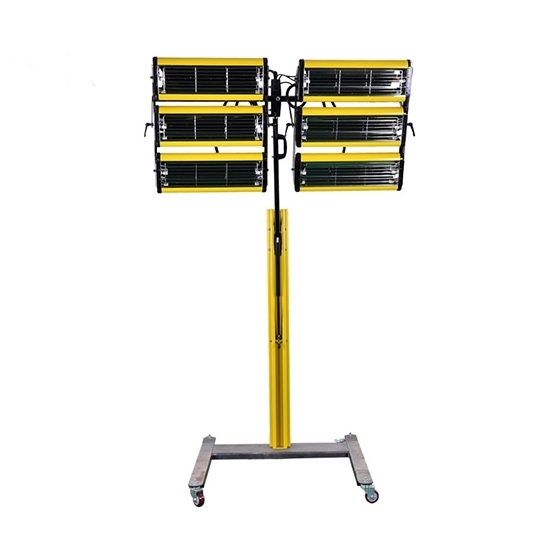

RDDLZ-IPCL-LD6AT	can 180° rotate, high power for fast baking

Note: Be sure to check this table before selecting a model.

Dimension Drawing of Infrared Paint Curing Lamp, 1-Lamp

Dimension Drawing of Infrared Paint Curing Lamp, 2-Lamp

Dimension Drawing of Infrared Paint Curing Lamp, 3-Lamp

Dimension Drawing of Infrared Paint Curing Lamp, 6-Lamp

Structure Diagram of Infrared Paint Curing Lamp

Tips: Infrared Paint Curing Lamp Installation.

Install 4 casters. Be sure to install the brake wheels at the back.
Install the lamp post. Align the holes and tighten the screws.
Install the lamp cap. Plug in the power cord and tighten it.
