Double Acting Welded Hydraulic Cylinder, 40 Inch (1000mm) Stroke

0 reviews • Write a review

from

$537.89

Ex Tax: $537.89

Stock: In Stock
Model: RDDLZ-WHC-1000MM
Weight: 1.00
SKU: RDDLZ-WHC-1000MM

Available Options

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

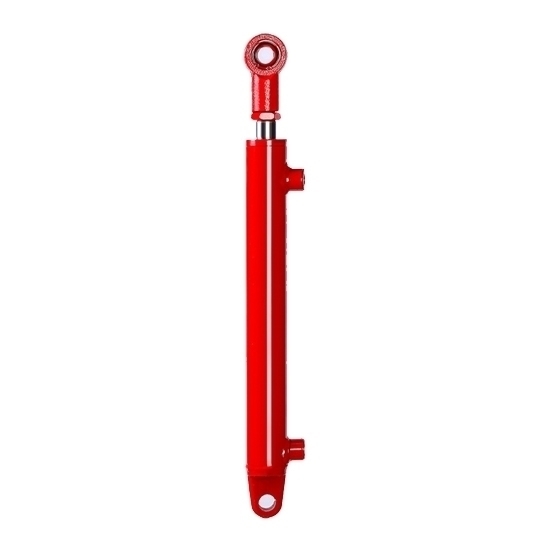

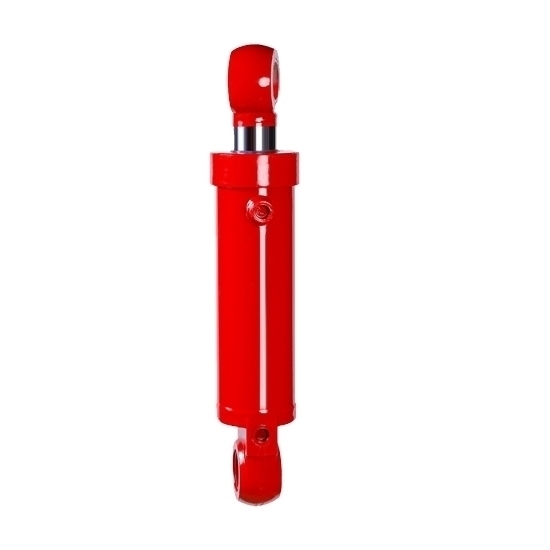

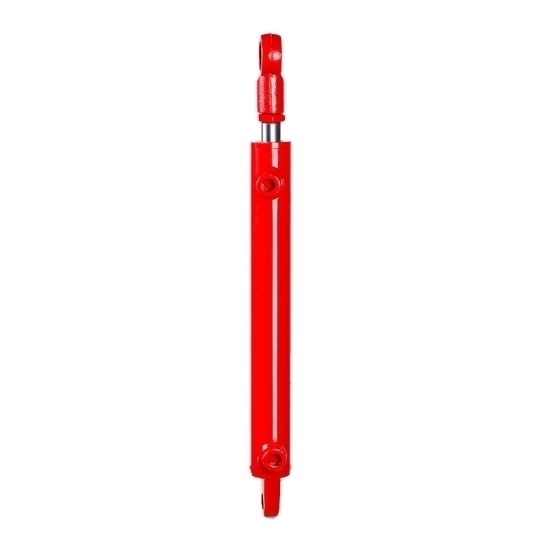

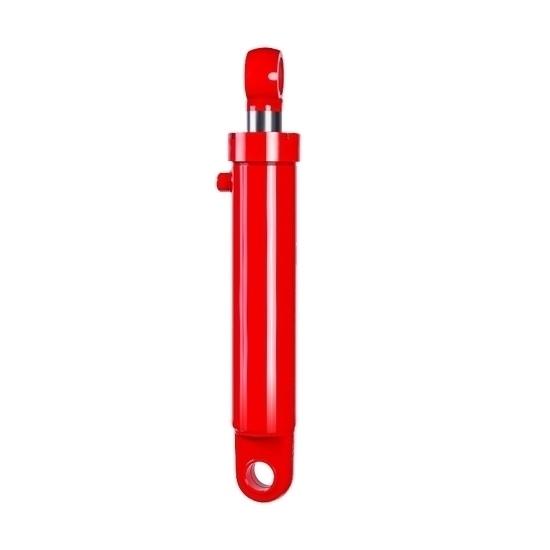

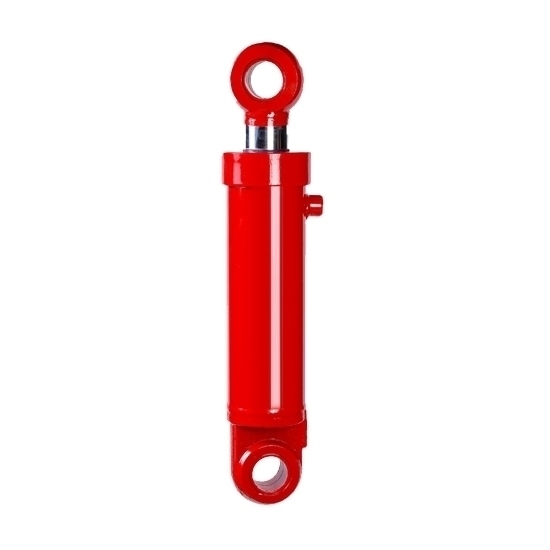

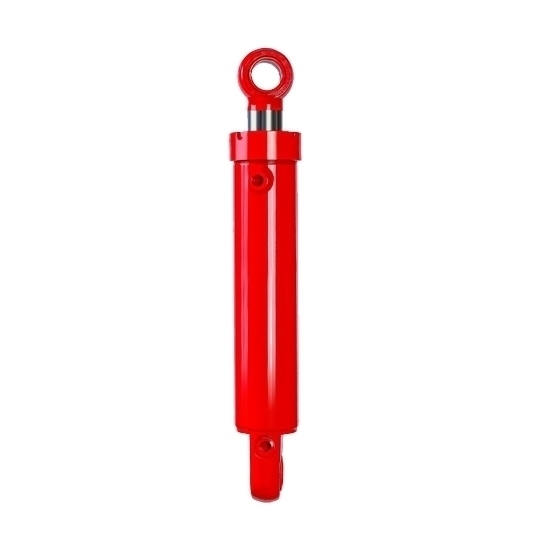

Heavy duty double acting welded hydraulic cylinder consists of a cylindrical barrel, piston and end cover, all firmly welded together. These welded clevis hydraulic cylinders are available in various bore sizes and strokes and can be used in a wide range of industrial and mobile equipment, including mini excavators, robots, log splitters, dump trucks, presses, dump trailers, etc.

Specification

Model	RDDLZ-HSG401000	RDDLZ-HSG501000	RDDLZ-HSG631000	RDDLZ-HSG801000	RDDLZ-HSG1001000
Acting Type	Double Acting
Stroke	40 inch (1000mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ40mm	φ50mm	φ63mm	φ80mm	φ100mm
Load Capacity	2 Ton	3 Ton	5 Ton	8 Ton	12 Ton
Rated Push Force	30772N (3 Ton)	30772N (3 Ton)	49850N (5 Ton)	80384N (8 Ton)	80384N (8 Ton)
Rated Pull Force	21121N (2 Ton)	21121N (2 Ton)	31681N (3 Ton)	48984N (5 Ton)	49014N (5 Ton)
Oil Port	18*1.5	18*1.5	18*1.5	18*1.5	22*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

RDDLZ-HSG401000

RDDLZ-HSG501000

RDDLZ-HSG631000

RDDLZ-HSG801000

RDDLZ-HSG1001000

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG401000	40	50	25	1000	18*1.5	20	1230	1280
RDDLZ-HSG501000	50	60	28	1000	18*1.5	20	1240	1290
RDDLZ-HSG631000	63	73	35	1000	18*1.5	30	1270	1340
RDDLZ-HSG801000	80	90	50	1000	18*1.5	40	1300	1380
RDDLZ-HSG1001000	100	112	63	1000	22*1.5	50	1370	1460

Tips: Do you need to bleed air from hydraulic cylinder?

Hydraulic cylinders typically do not require bleeding like pneumatic systems because they operate with incompressible fluids, such as hydraulic oil, instead of gases. Bleeding is necessary in pneumatic systems to remove trapped air, which can affect performance. In hydraulic systems, air can still be problematic, but the procedure is different.

Air in a hydraulic system can cause issues like reduced efficiency, spongy response, or noise, but it's usually purged during the initial system filling or maintenance. When installing a new hydraulic cylinder or servicing the system, it's essential to follow proper procedures to ensure all air is evacuated. This may involve cycling the cylinder to force air bubbles out, using bleed valves, or using a vacuum pump. Regular maintenance and monitoring are crucial to prevent air ingress over time. So, while hydraulic systems don't require regular bleeding, managing air during initial setup and maintenance is vital to ensure their proper operation.
