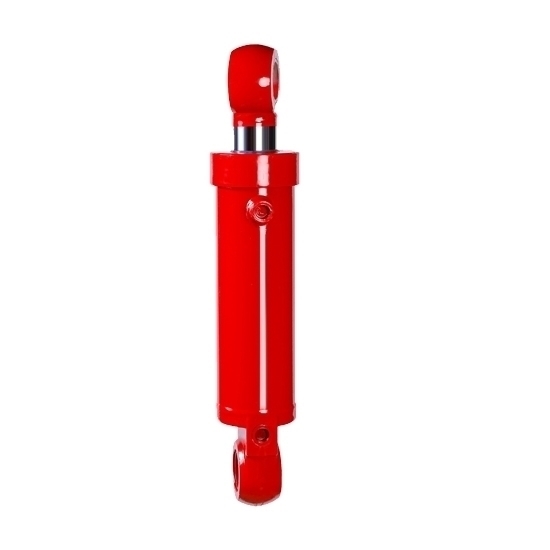

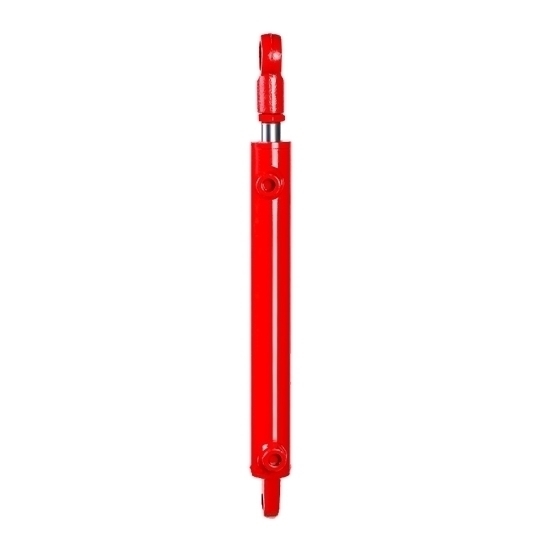

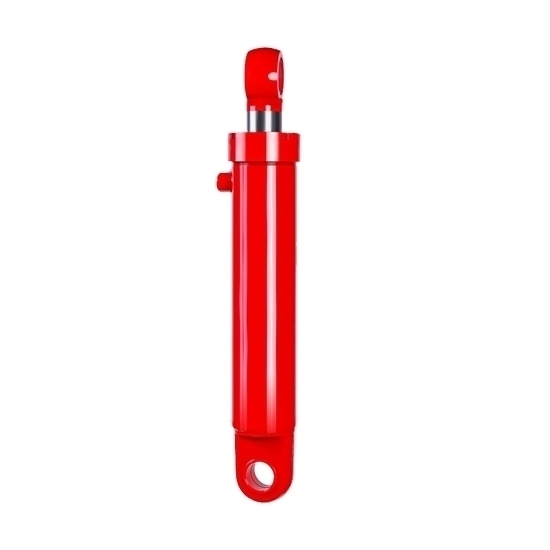

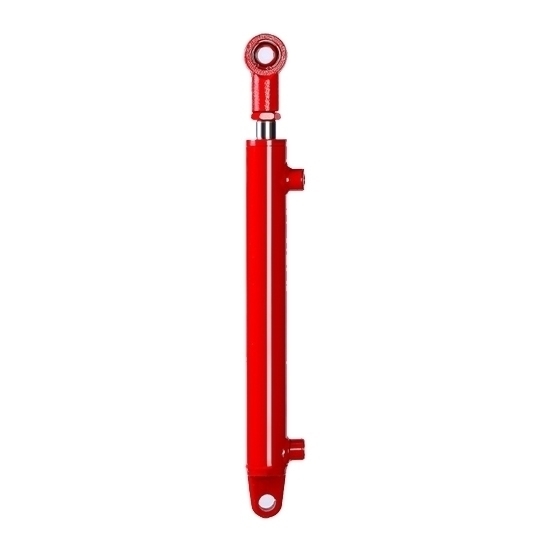

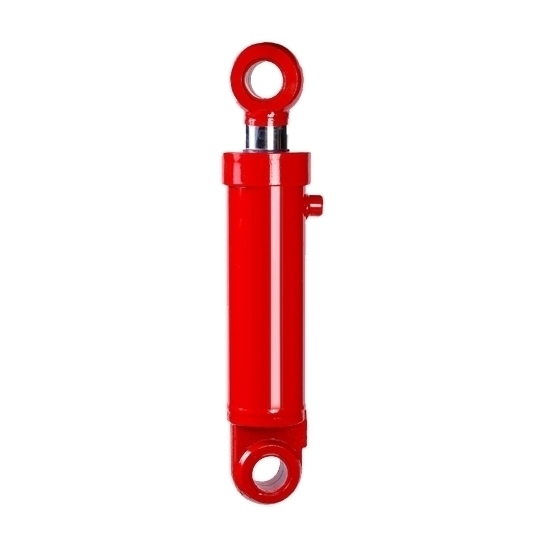

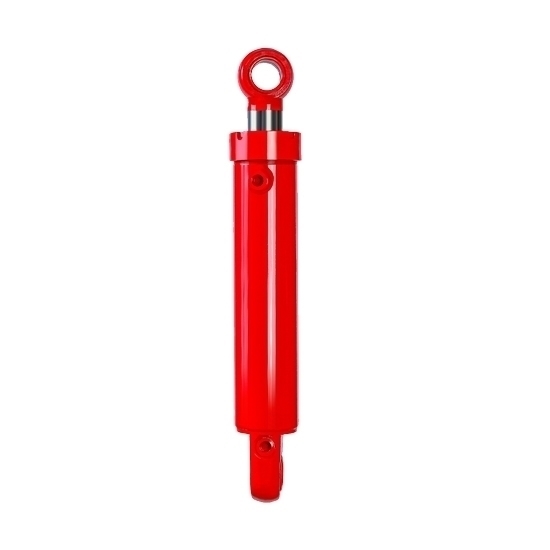

Double Acting Welded Hydraulic Cylinder, 28 Inch (700mm) Stroke

0 reviews • Write a review

from

$264.79

Ex Tax: $264.79

Stock: In Stock
Model: RDDLZ-WHC-700MM
Weight: 1.00
SKU: RDDLZ-WHC-700MM

Available Options

Bore Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

28 inch double acting welded hydraulic cylinder is a versatile component used in various applications, including log splitters, dump trucks, small and mini excavators, metal bandsaws, robotics, press machines, and heavy duty equipment like lifts and cars.

Specification

Model	RDDLZ-HSG40700	RDDLZ-HSG50700	RDDLZ-HSG80700	RDDLZ-HSG100700
Acting Type	Double Acting
Stroke	28 inch (700mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ40mm	φ50mm	φ80mm	φ100mm
Load Capacity	2 Ton	3 Ton	8 Ton	12 Ton
Rated Push Force	30772N (3 Ton)	30772N (3 Ton)	80384N (8 Ton)	80384N (8 Ton)
Rated Pull Force	21121N (2 Ton)	21121N (2 Ton)	48984N (5 Ton)	49014N (5 Ton)
Oil Port	18*1.5	18*1.5	18*1.5	22*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

RDDLZ-HSG40700

RDDLZ-HSG50700

RDDLZ-HSG80700

RDDLZ-HSG100700

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG40700	40	50	25	700	18*1.5	20	930	980
RDDLZ-HSG50700	50	60	28	700	18*1.5	20	940	990
RDDLZ-HSG80700	80	90	50	700	18*1.5	40	1000	1080
RDDLZ-HSG100700	100	112	63	700	22*1.5	50	1070	1160

Tips: What is a double acting welded hydraulic cylinder?

A double-acting welded hydraulic cylinder is a mechanical device used in hydraulic systems to convert fluid pressure into linear motion. It consists of a cylindrical tube, end caps, and a piston that moves back and forth within the tube. What sets it apart from a single-acting cylinder is its ability to exert force in both directions.

In a double-acting cylinder, pressurized hydraulic fluid is supplied to one side of the piston, causing it to extend and generate a pushing force. Simultaneously, the fluid on the other side of the piston is allowed to return to the reservoir, ensuring efficient retraction when pressure is released. This bidirectional functionality makes double-acting cylinders ideal for a wide range of applications, from industrial machinery and construction equipment to agricultural implements and automotive systems.

The welded construction of these cylinders ensures durability and strength, making them well-suited for heavy-duty tasks. They are widely used in various industries due to their reliability and precise control of linear motion in both directions.
