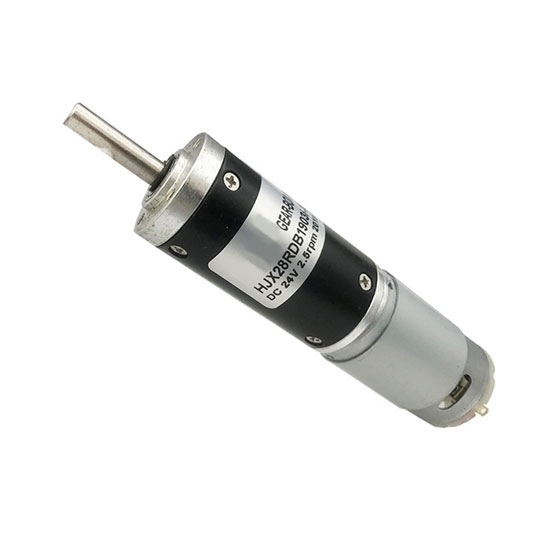

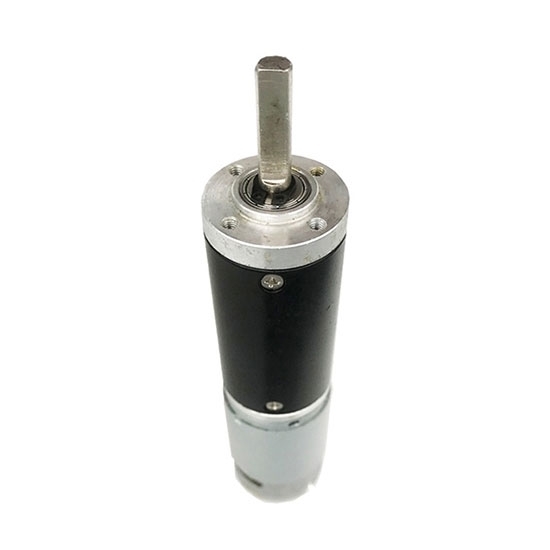

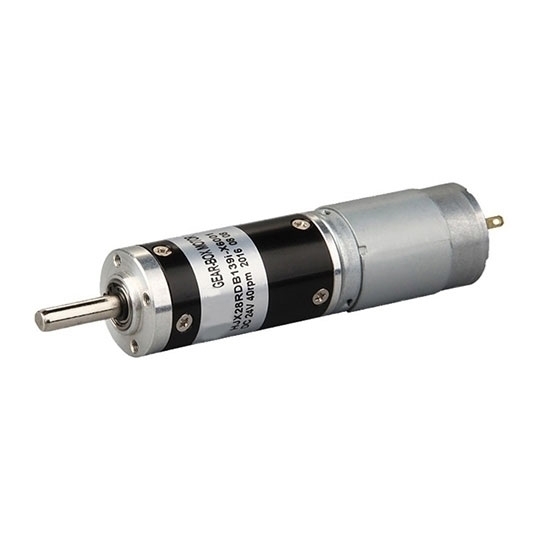

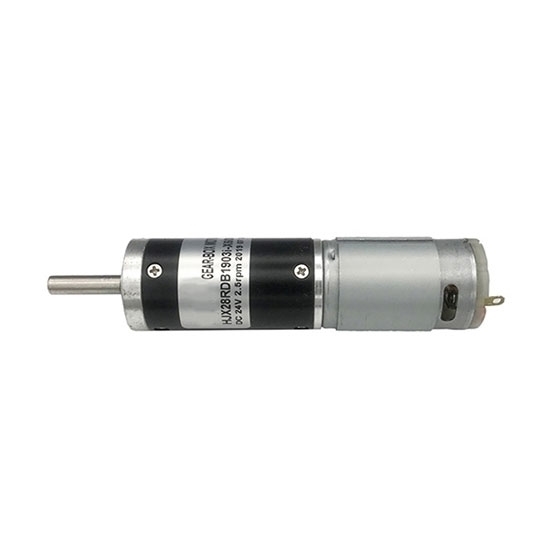

Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm

Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
Brushed DC Motor With Gearbox, 7000rpm, 12V/24V, 28mm
0 reviews • Write a review
from
$119.95
Ex Tax: $119.95
  • Stock: In Stock
  • Model: RDDLZ-BDM-7000R28
  • Weight: 1.00
  • SKU: RDDLZ-BDM-7000R28

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small brushed DC gear motor with 7000rpm speed, operates with 12V or 24V. It is suitable for a lot of industrial applications such as food processing machine, sealing equipment, textile machine, etc.

Features

  • Brushed DC motor with gearbox has compact structure and strong overload capacity.
  • The gear ratio is finely graded, which provides you wide selections for different applications.
  • BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
  • It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

Specification

ModelRDDLZ-28RDB-ZY2847R23
Working Temperature (Motor & Gearbox)-30 ~ 150°C
DC Motor Technical ParameterRated Voltage12V DC24V DC
No LoadSpeed7800rpm7800rpm
Current0.14A0.08A
At Max EfficiencySpeed7000rpm7000rpm
Current0.45A0.25A
Torque8.3mN·m8.6mN·m
85g·cm88g·cm
Power5.5W5.8W
StallTorque67.5mN·m68.8mN·m
689g·cm700g·cm
Current1.8A1.0A
Gearbox Technical ParameterGear Ratio1/3.71/5.21/13.71/19.21/271/351/511/711/1001/1391/3.71/5.21/13.71/19.21/271/351/511/711/1001/139
Gearbox Diameter (mm)2828
Gearbox Length (mm)3038.6453038.645
Rated Torque (kg·cm)0.30.40.91.31.82.43.04.26.08.30.30.41.01.41.92.53.14.46.28.6
Rated Speed (rpm)19051355.8514.6367.2261.1178.0138.299.370.550.719051355.8514.6367.2261.1178.0138.299.370.550.7
Stall Torque (kg·cm)2.63.78.712.217.219.028.439.555.777.42.73.99.012.717.819.629.440.957.780.1

Dimensions

Units: mm
