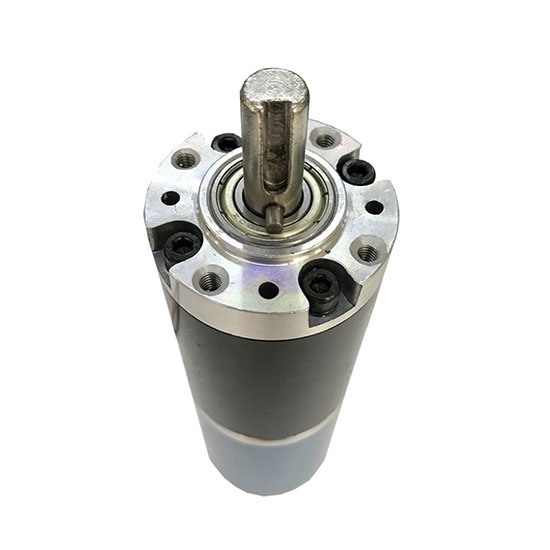

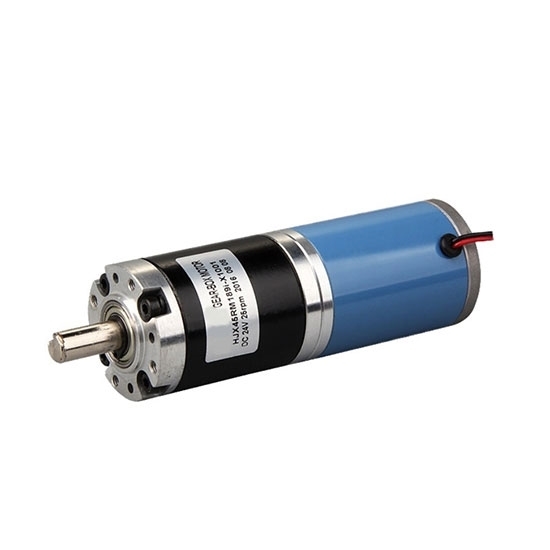

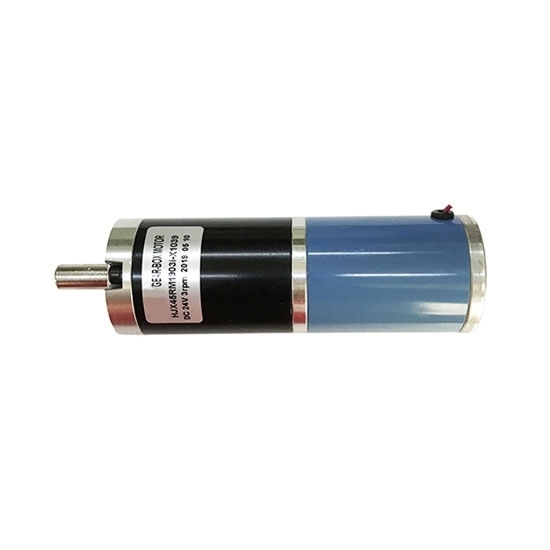

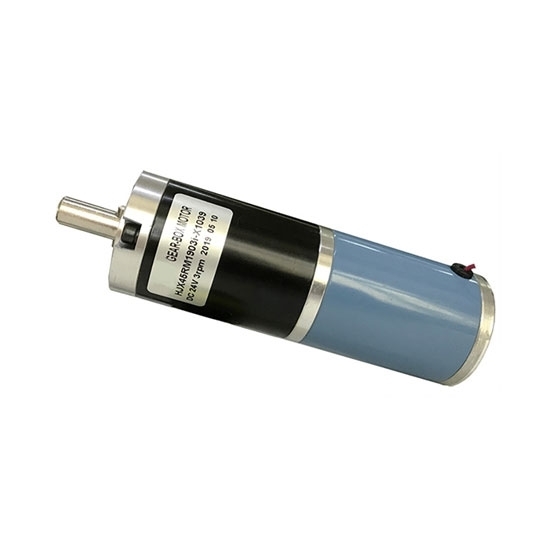

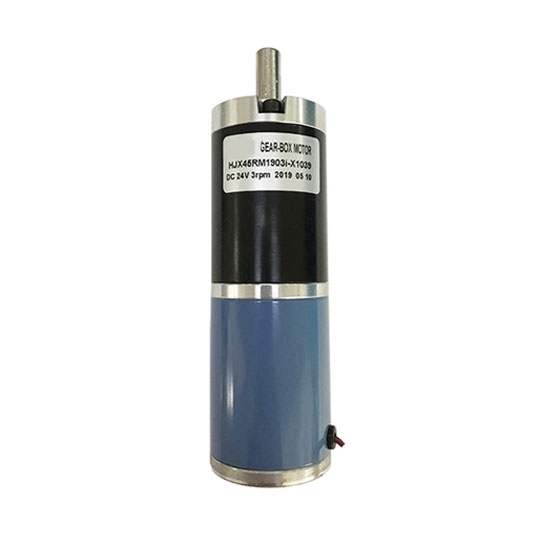

Brushed DC Motor With Gearbox, 4000rpm, 12V/24V, 45mm

0 reviews • Write a review

from

$165.49

Ex Tax: $165.49

Stock: In Stock
Model: RDDLZ-BDM-4000R45
Weight: 1.00
SKU: RDDLZ-BDM-4000R45

Available Options

Gear Ratio

Voltage (DC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Details

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model			RDDLZ-45RM-ZY4566R3
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC										24V DC
	No Load	Speed	5000rpm										5000rpm
		Current	0.43A										0.20A
	At Max Efficiency	Speed	4000rpm										4000rpm
		Current	2.45A										1.45A
		Torque	45..59mN·m										46.08mN·m
			465g·cm										470g·cm
		Power	27W										28W
	Stall	Torque	270.4mN·m										289.2mN·m
			2758g·cm										2950g·cm
		Current	13.2A										6.5A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/35	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		45										45
	Gearbox Length (mm)		30		39.8				49.5				30		39.8				49.5
	Rated Torque (kg·cm)		1.5	2.2	5.1	7.1	10.0	11.8	16.6	23.1	32.6	45.2	1.6	2.2	5.2	7.2	10.2	12.2	16.8	23.4	32.9	45.7
	Rated Speed (rpm)		1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8	1081	769.2	292.0	208.3	148.1	114.0	78.4	56.3	40.0	28.8
	Stall Torque (kg·cm)		8.0	9.8	22.9	32.1	45.2	48.0	74.7	104.0	146.5	203.6	7.0	9.9	23.2	32.5	45.7	52.0	75.5	105.1	148.1	205.8
