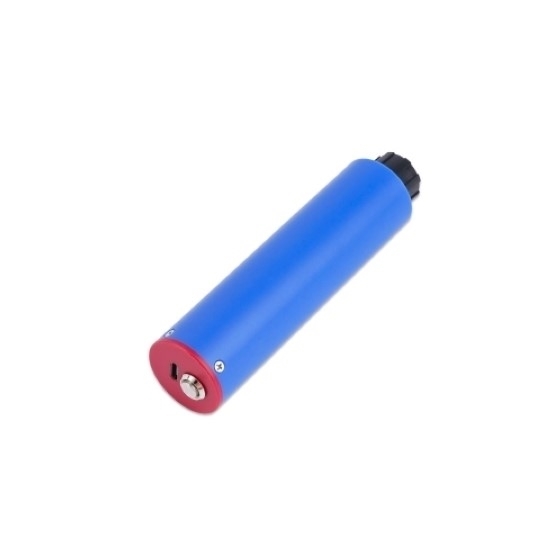

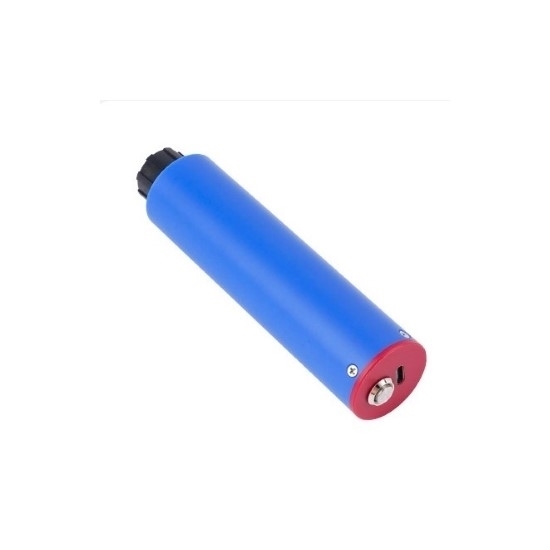

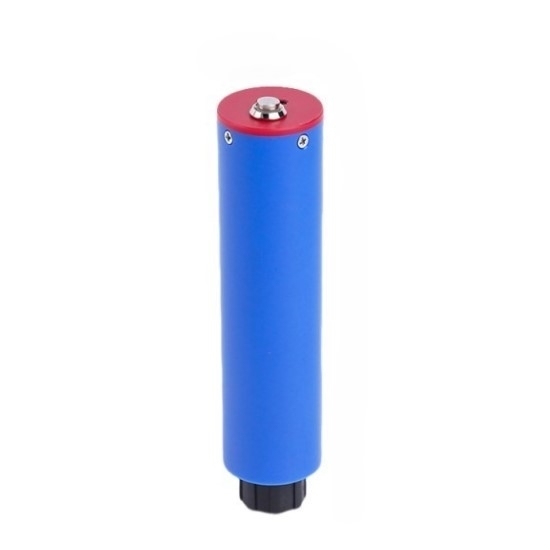

Bluetooth Wireless Transmission Module For Conductivity Sensor

0 reviews • Write a review

from

$96.62

Ex Tax: $96.62

Stock: In Stock
Model: RDDLZ-CS-MINI1
Weight: 1.00
SKU: RDDLZ-CS-MINI1

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost Bluetooth wireless transmission module for electrical conductivity sensors, using 5V charging, can work for about 7 days with timed reading, and can transmit data within about 50 meters in an open and unobstructed area. The Bluetooth wireless transmission module for conductivity sensors is equipped with a pluggable connector, which can quickly replace the conductivity sensor, plug and play, and can be used for online monitoring and outdoor portable detection.

Specification

Model	RDDLZ-CS-MINI1
Measuring Range	According to sensor settings
Output Mode	ASCII code Bluetooth transmission
Input Mode	Hexadecimal Bluetooth transmission
Transmission Distance	Open and unobstructed area, about 50 meters
Storage Capacity	4M bytes
Working Time	About 7 days for regular reading
Power Supply	3.7V/3000mAh polymer lithium battery, 5V charging
Note	The Bluetooth wireless transmission module cannot be immersed in water

Features

It can be connected to the conductivity sensor to achieve portable measurement, taking into account online real-time monitoring, and unlimited remote upper and lower limit control.
It can be connected to mobile devices such as mobile phones and tablets through Bluetooth, WiFi, and 5G, and the data acquisition channels are diversified.
The Bluetooth wireless transmission module for conductivity transducer adopts an intelligent software system, which can easily read various monitoring data.
The Bluetooth wireless transmission module for conductivity sensor has a large storage space and can store up to 300,000 data.
Equipped with a safe charging protection system, you can use a power bank, and charging is safe and convenient.

Dimension (Unit: mm)

Wiring

Red line	Black line	Blue line	White line
Power line (12V)	Ground line (GND)	485A	485B

Application

Tips: Notes on Bluetooth transmission module

The Bluetooth transmission module should be kept away from water and sunlight during use and storage.
Unplug the charger in time after the battery is fully charged to extend the battery life and reduce safety hazards.
After each replacement of the conductivity sensor, read the address before performing other operations.
Avoid direct mechanical stress (pressure, scratches, etc.) during use.
