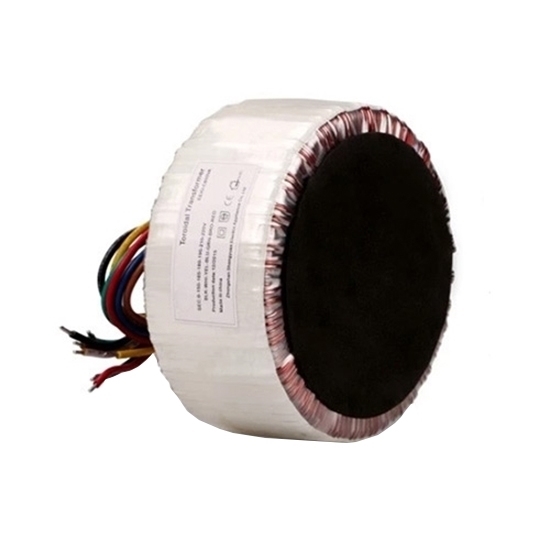

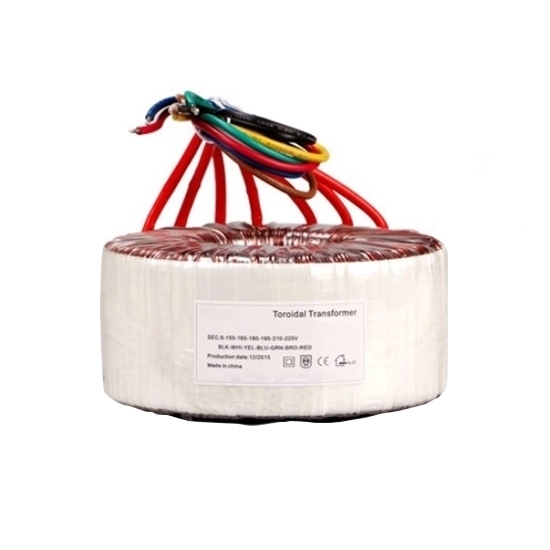

Best and cheap 800VA toroidal transformer is single-phase, made with cold-rolled silicon steel core and pure copper winding and lead. It features one 230V/50-60Hz primary winding and one 110V or two 2x50V secondary winding, high insulation strength, CE recognized, less noise, and long life.

Advantages of RDDLZ Toroidal Transformer

1. High Efficiency: Winding matches the core perfectly, which makes the transformer more efficient.
2. Long Service Life: With high-quality materials and manufacturing technology, the transformer can be used for 30 years.
3. Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.
4. Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.
5. Low Temperature Rise: Even if it is overloaded at 120%, the temperature rise will be less than 70℃.

800VA Toroidal Transformer Specifications

Toroidal Transformer Accessories

Toroidal Transformer Mounting Methods

Toroidal Transformer Internal Structure

Tips: Why does the toroidal transformer need a shielding layer?

With the advantages of small size, low noise, low heat generation and high conversion efficiency, the toroidal transformer has been widely used in areas such as industrial automation equipment, instruments, medical and health, as well as household appliances.

The toroidal transformer is mainly composed of the coil and annular core, and the coil can be further divided into primary coil and secondary coil. Among them, some toroidal transformers have shielding layers between the primary and secondary windings, which are generally used in instruments and high-end audio equipment, so what is the function of the shielding layer?

1. The addition of a shielding layer can increase the distance between the primary and secondary windings so that the coupling capacitance between poles can be reduced, and the electromagnetic noise of the transformer can also be reduced, but the leakage inductance will increase.
2. The common-mode interference signal between the primary circuit can be grounded through the shielding layer, to prevent it from being transmitted to the secondary coil and affecting the normal operation of the secondary circuit.
3. There is a high requirement for the production of shielding layers because the quality of shielding layers determines the quality of a toroidal transformer.
